Radiator Air Side Baffle Replacement - Left Side
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

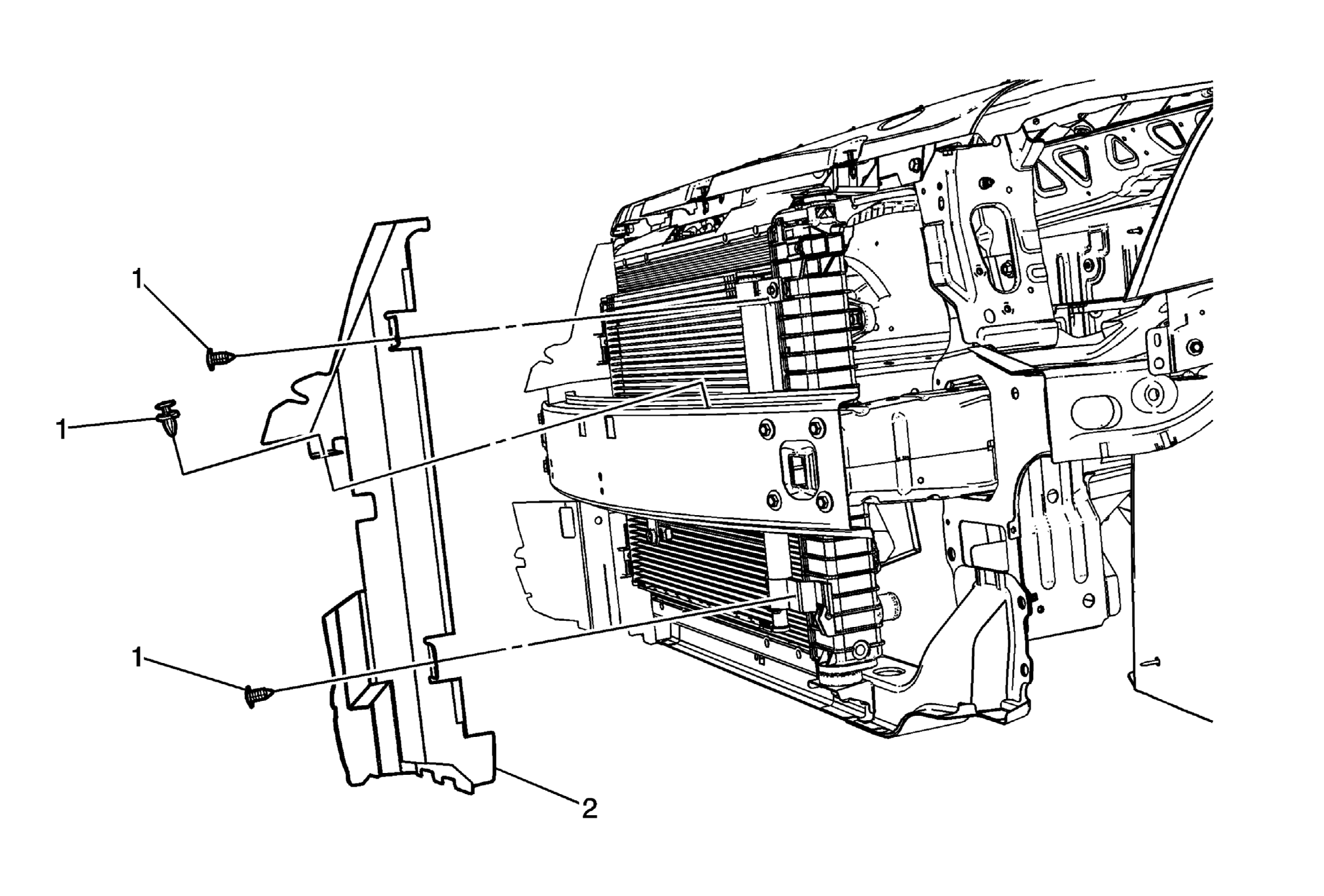

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove front bumper facia. Refer to Front Bumper Fascia Replacement |
|
| 1 | Radiator Air Side Baffel And Deflector Retainers (Qty 3) |
| 2 | Radiator Air Side Baffel And Deflector Left |
