Radiator Air Seal Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

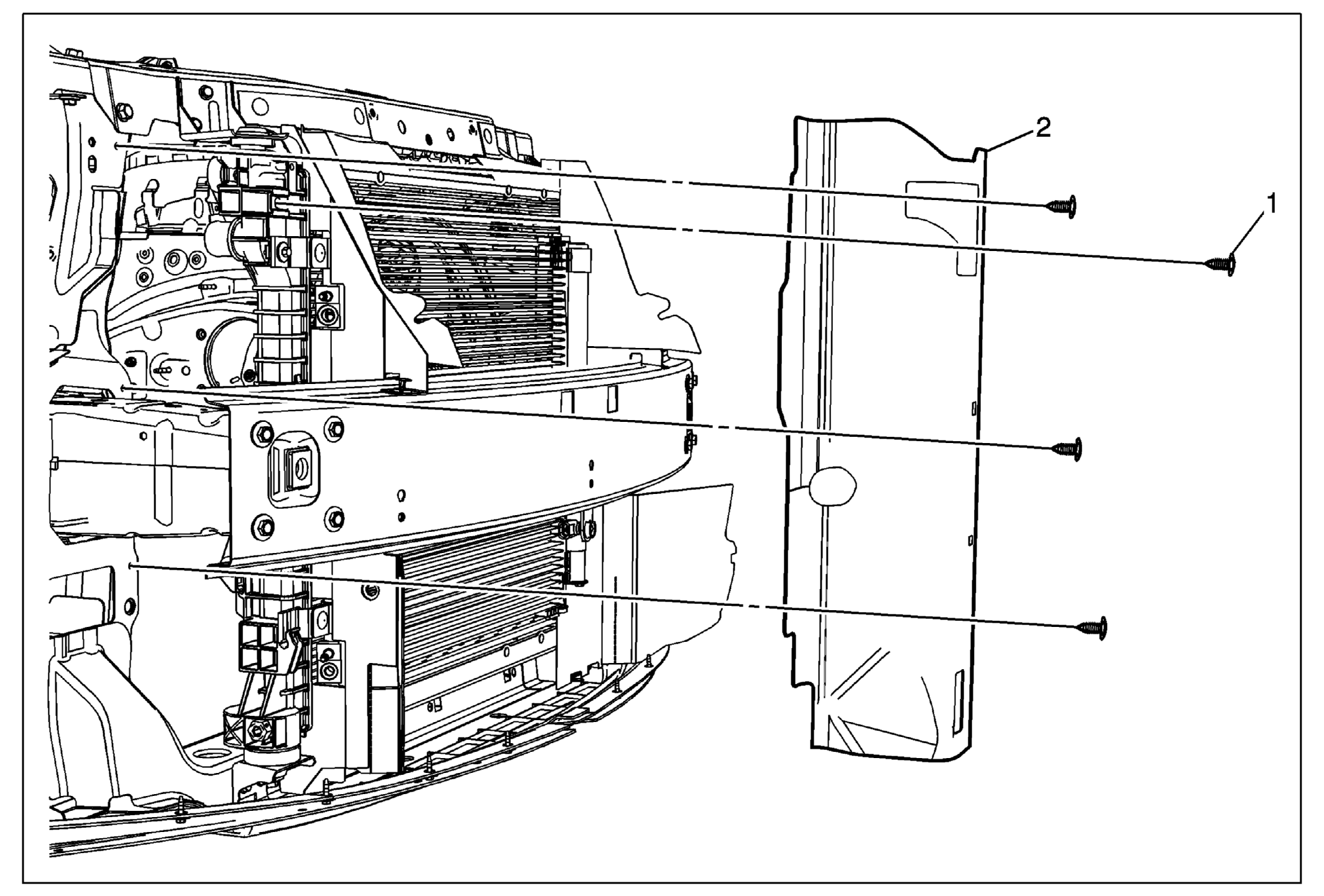

Fig 1: Identifying Radiator Air Seal

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Unbolt and reposition the air conditioning condenser. Refer to Air Conditioning Condenser Replacement (LF1) or Air Conditioning Condenser Replacement (LAU)
1	Radiator Air Seal Retainers (Qty 4)
2	Radiator Air Seal

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement
Unbolt and reposition the air conditioning condenser. Refer to Air Conditioning Condenser Replacement (LF1) or Air Conditioning Condenser Replacement (LAU)

Radiator Air Seal Retainers (Qty 4)

Radiator Air Seal
