Engine Coolant Fan Replacement (LAU)
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

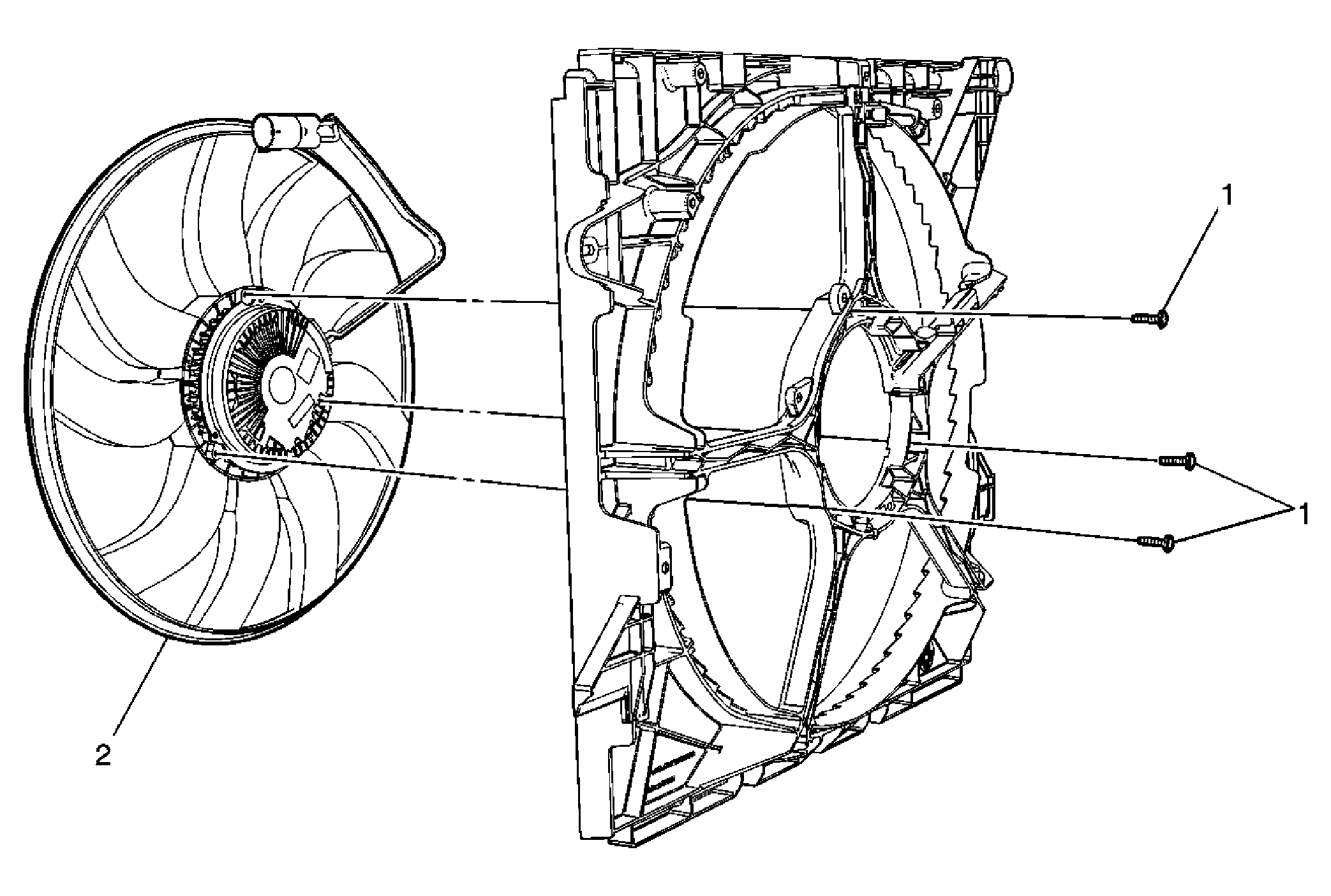

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the cooling fan shroud. Refer to Cooling Fan and Shroud Replacement (LF1) or Cooling Fan and Shroud Replacement (LAU) . |
|
| 1 | Cooling Fan Retainer (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 7 N.m (62 lb in) |
| 2 | Cooling Fan Tip: Disconnect electrical connector from fan. |
