Windshield Wiper Motor Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

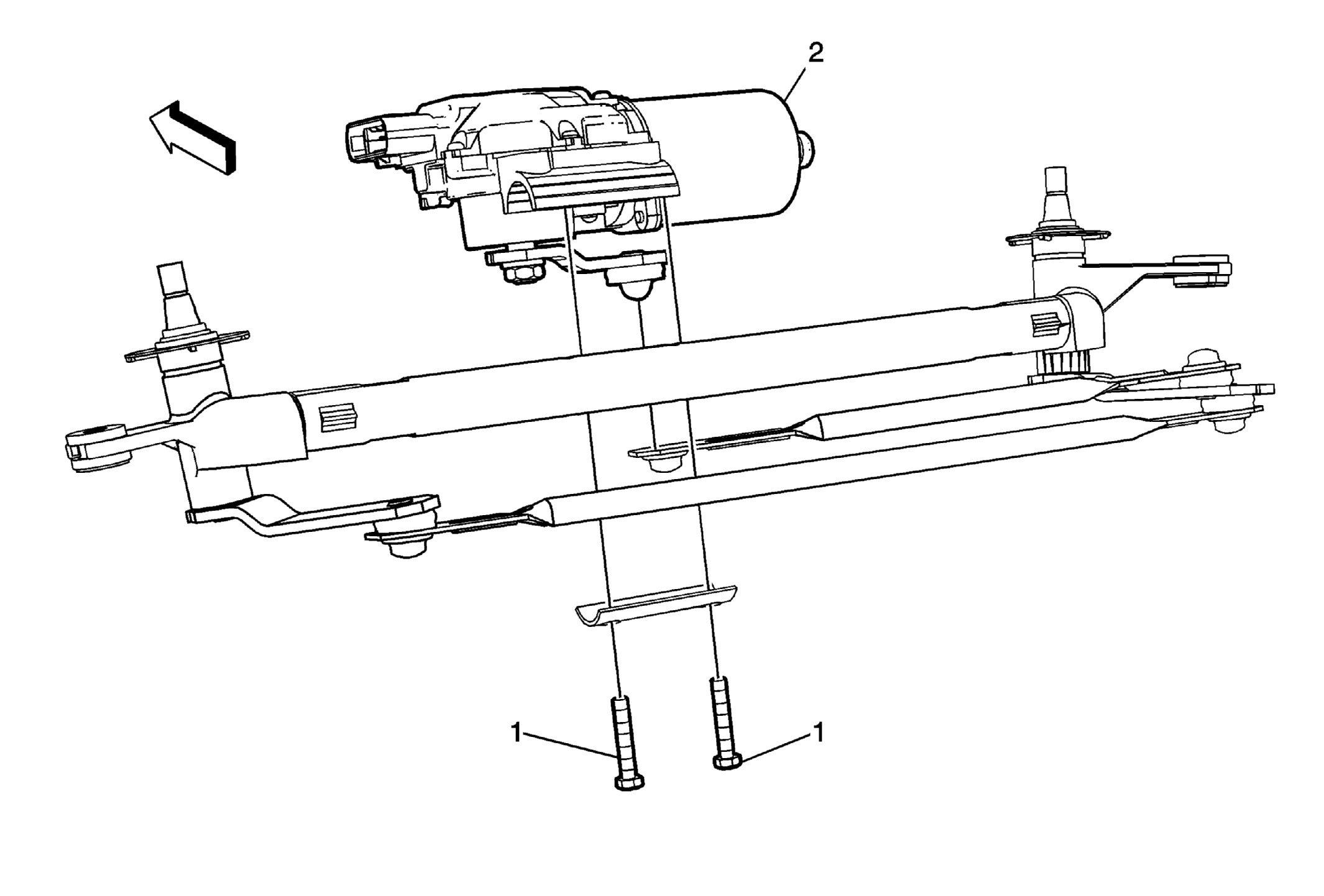

Fig 1: View Of Windshield Wiper Motor & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield wiper transmission frame assembly. Refer to Windshield Wiper Transmission Replacement .
1	Windshield Wiper Motor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Windshield Wiper Motor Procedure Using the J-39232 separator or similar tool, remove the transmission drive links from the wiper motor crank arm ball stud. Using the J-39529 installer or similar tool, install the wiper transmission drive links onto the wiper motor crank arm ball stud. TIP: Apply a small amount of grease to the inner cup on the transmission links to aid in installation. Special Tools J-39232 Wiper Linkage Separator J-39529 Wiper Linkage Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the windshield wiper transmission frame assembly. Refer to Windshield Wiper Transmission Replacement .

Windshield Wiper Motor Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

Windshield Wiper Motor

Procedure

Using the J-39232 separator or similar tool, remove the transmission drive links from the wiper motor crank arm ball stud.
Using the J-39529 installer or similar tool, install the wiper transmission drive links onto the wiper motor crank arm ball stud.

TIP: Apply a small amount of grease to the inner cup on the transmission links to aid in installation.

Special Tools

J-39232 Wiper Linkage Separator
J-39529 Wiper Linkage Installer

For equivalent regional tools, refer to Special Tools .
