Windshield Washer Solvent Container Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

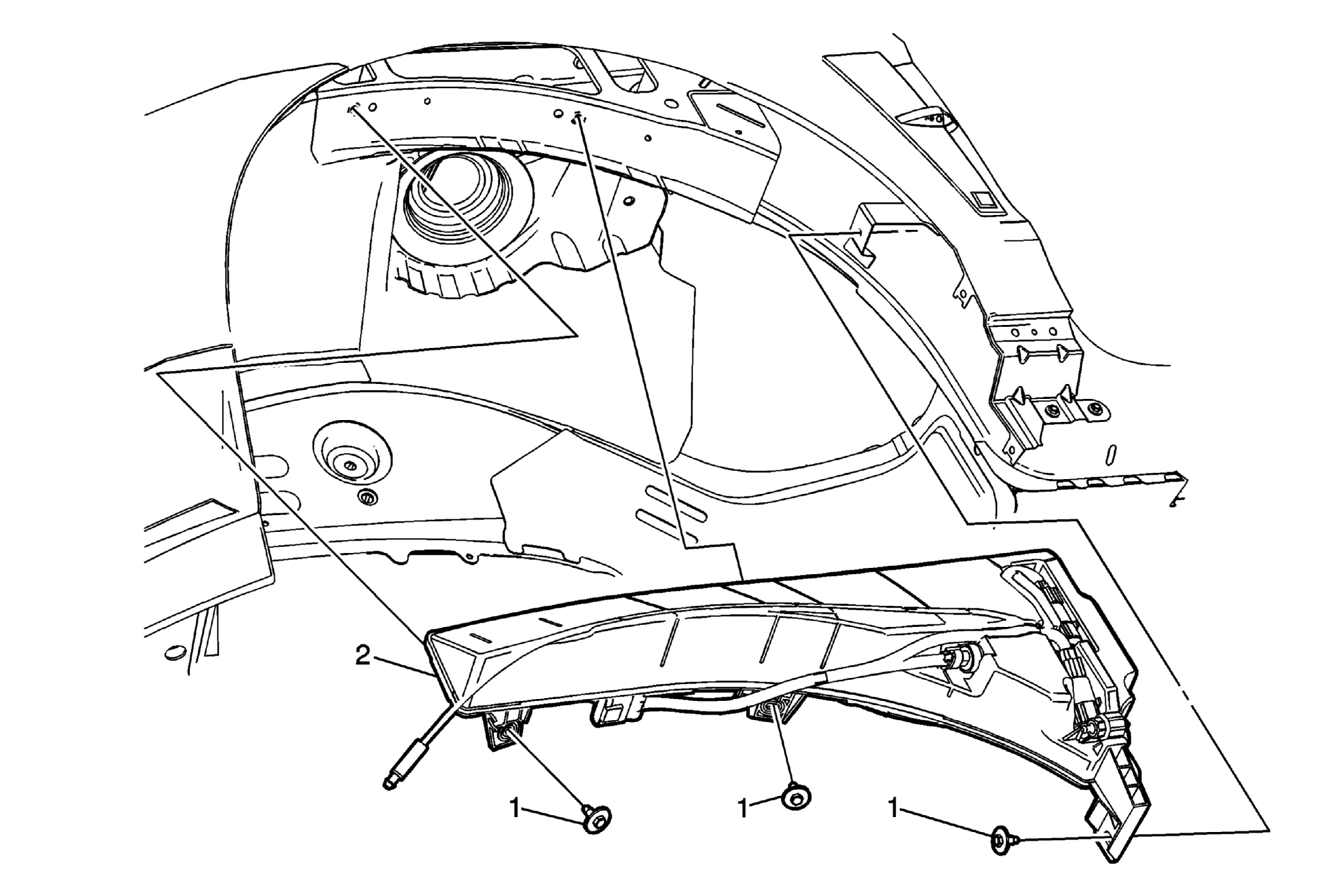

| Callout |
Component Name |
|
Preliminary Procedure
- Remove the left front wheel house liner. Refer to Front Wheelhouse Liner Replacement
.
- Remove the washer container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement
- Drain the windshield washer solvent into a suitable clean container.
- Disengage the headlamp washer nozzle hose from the headlamp washer pump hose at the front of the windshield washer solvent container.
- Disconnect the main harness electrical connector at the front of the windshield washer solvent container.
|
| 1 |
Windshield Washer Solvent Container Bolt (Qty: 3)
Tighten
6 N.m(53 lb in) |
| 2 |
Windshield Washer Solvent Container Procedure
- Carefully lower and remove the windshield washer solvent container from the left front inner wheelhouse panel.
- Remove the washer pump hoses from both washer pumps.
- Disconnect the level sensor electrical connector.
- Disconnect both headlamp and windshield washer pump electrical connectors.
- Remove and transfer the windshield washer solvent container level sensor. Refer to Windshield Washer Solvent Level Switch Replacement .
- Remove the windshield washer pump. Refer to Windshield Washer With Seal Pump Replacement .
- Remove the headlamp washer pump. Refer to Headlamp Washer Pump Replacement .
- Transfer the headlamp washer pump hose.
- Transfer the washer solvent container main harness.
|
