Windshield Outside Moisture/Ambient Light and Humidity Sensor Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

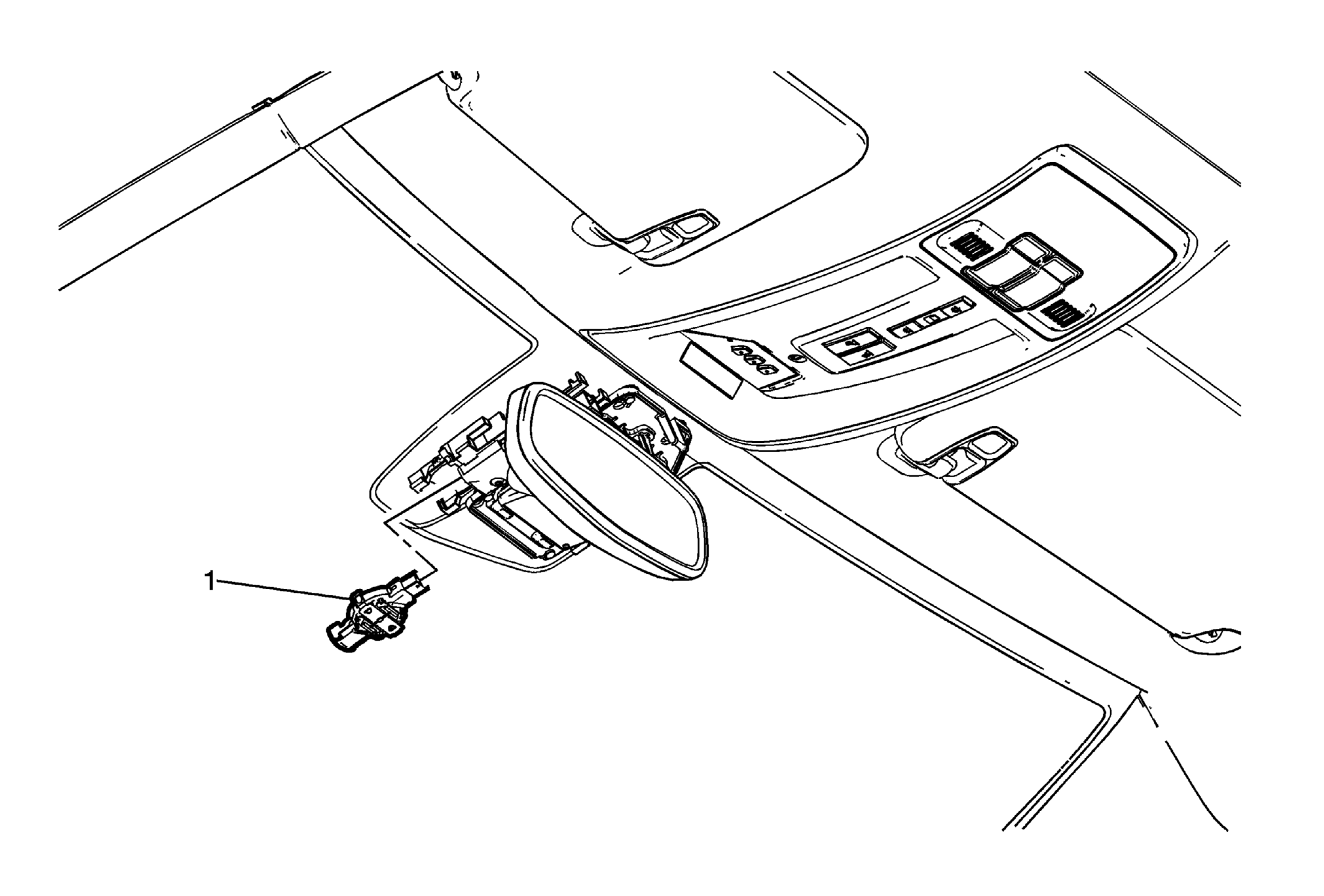

Fig 1: Windshield Outside Moisture/Ambient Light and Humidity Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield multifunction sensor mount bracket cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement .
1	Windshield Outside Moisture/Ambient Light And Humidity Sensor Procedures Release the windshield outside moisture/ambient light and humidity sensor retainers from the inside rear view mirror support bracket and pull down and forward. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the windshield multifunction sensor mount bracket cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement .

Windshield Outside Moisture/Ambient Light And Humidity Sensor

Procedures

Release the windshield outside moisture/ambient light and humidity sensor retainers from the inside rear view mirror support bracket and pull down and forward.
Disconnect the electrical connector.
