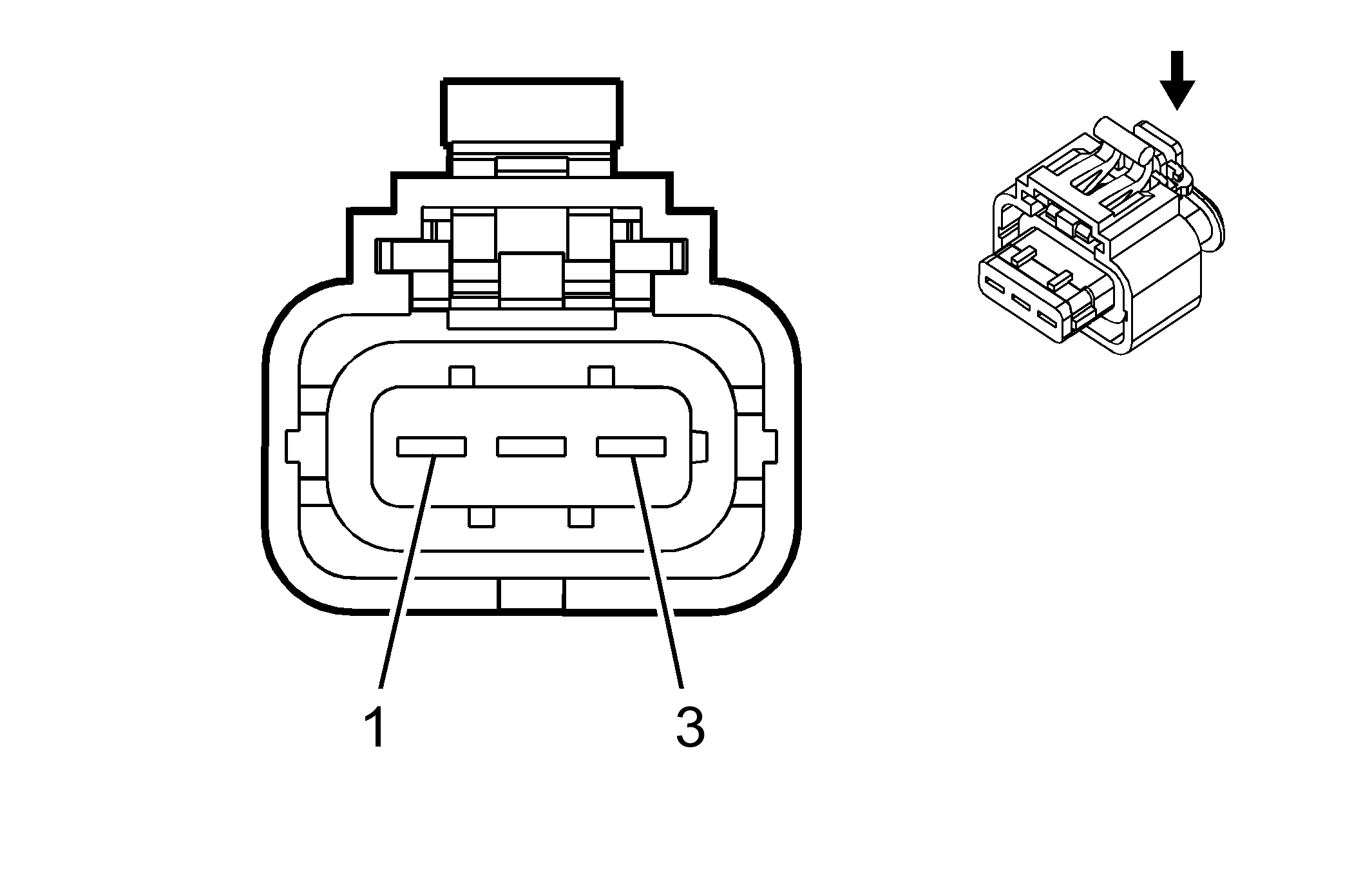

B23B Camshaft Position Sensor - Bank 1 Intake
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 13783848
- Service Connector: 13384372
- Description: 3-Way F 2.8 Series, Sealed (BK with BU Lock)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/L-GN |
5301 |
Camshaft Position Intake Sensor Low Reference (1) |
I |
- |
| 2 |
0.5 |
YE/VT |
5275 |
Camshaft Position Intake Sensor (1) |
I |
- |
| 3 |
0.5 |
GY/D-BU |
5300 |
Camshaft Position Intake Sensor Control (1) |
I |
- |
