Instrument Panel Accessory Switch Trim Panel Replacement - Center
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

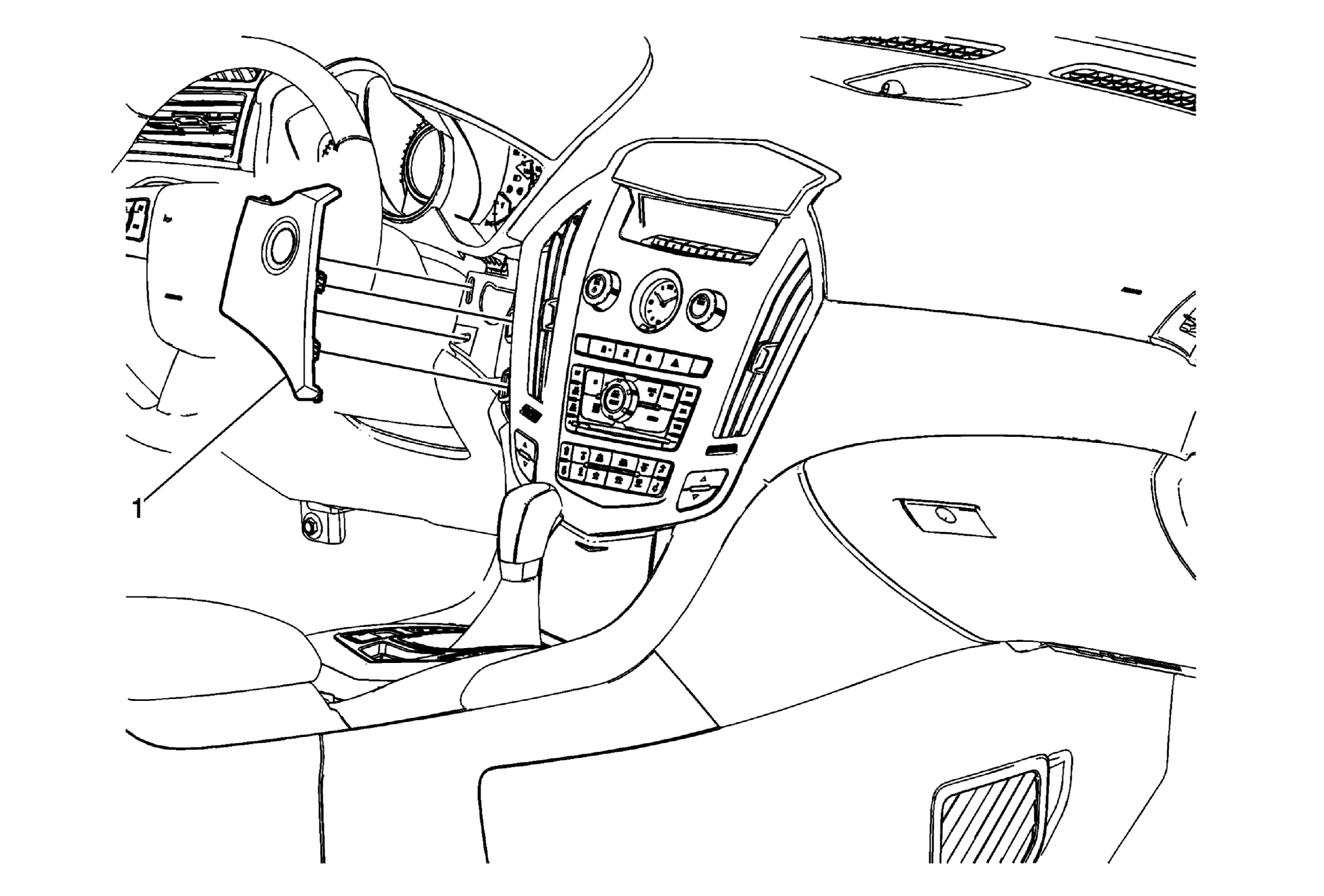

| Callout |
Component Name |
| 1 |
Instrument Panel Accessory Trim Panel Assembly Procedures
- Use a flat bladed plastic trim tool in order to release the retainer clips securing the accessory trim panel to the instrument panel assembly.
- Disconnect the electrical connections.
- When replacing the instrument panel accessory trim plate, transfer all necessary components.
|
