Driver Knee Bolster Reinforcement Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

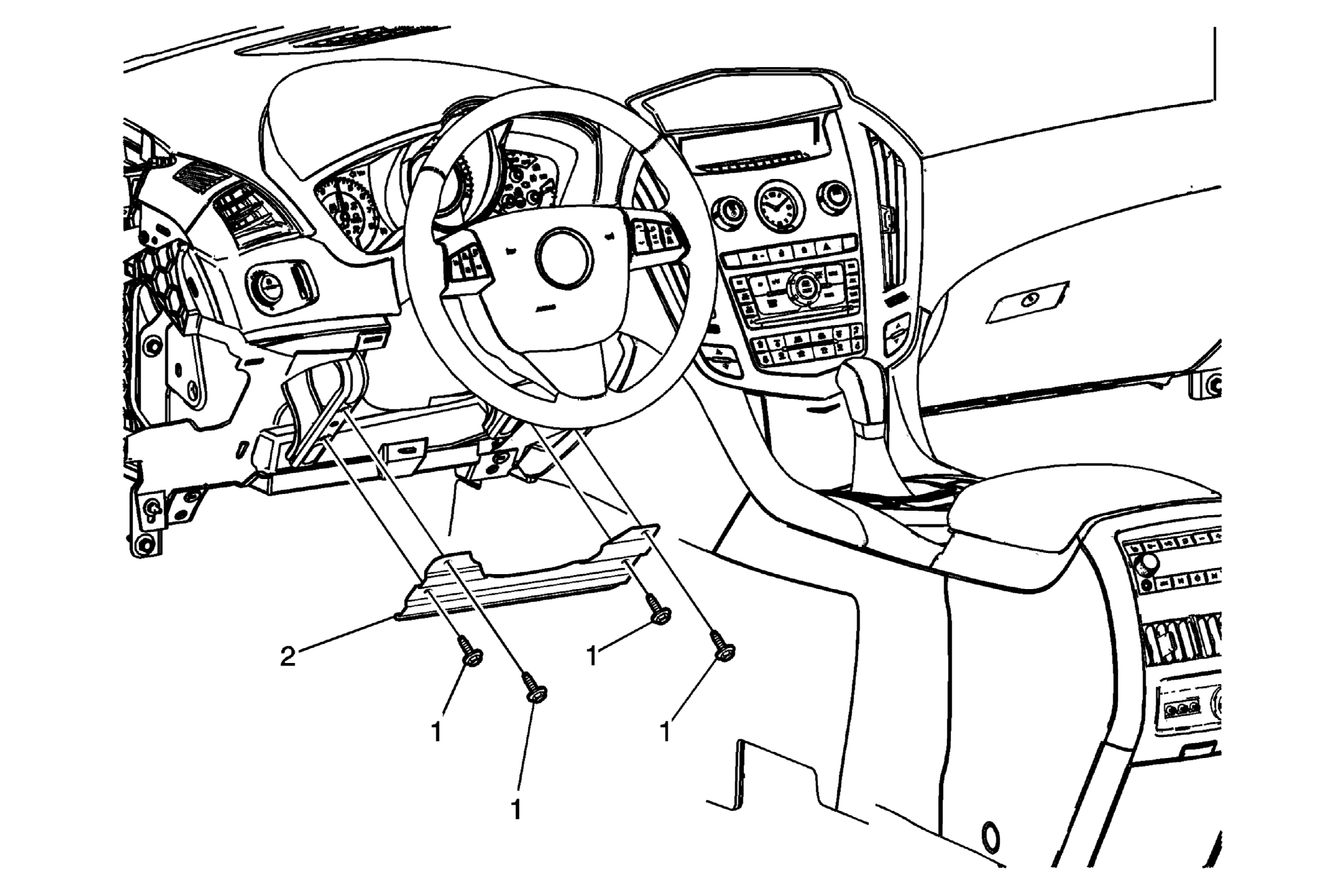

Fig 1: Identifying Driver Knee Bolster Reinforcement
GM2220888Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the instrument panel drivers knee bolster assembly. Refer to Driver Knee Bolster Panel Replacement .
1 Instrument Panel Drivers Knee Bolster Reinforcement Fasteners (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  9 N.m (80 lb in)
2 Instrument Panel Drivers Knee Bolster Reinforcement
