Rocker Panel Rear Molding Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

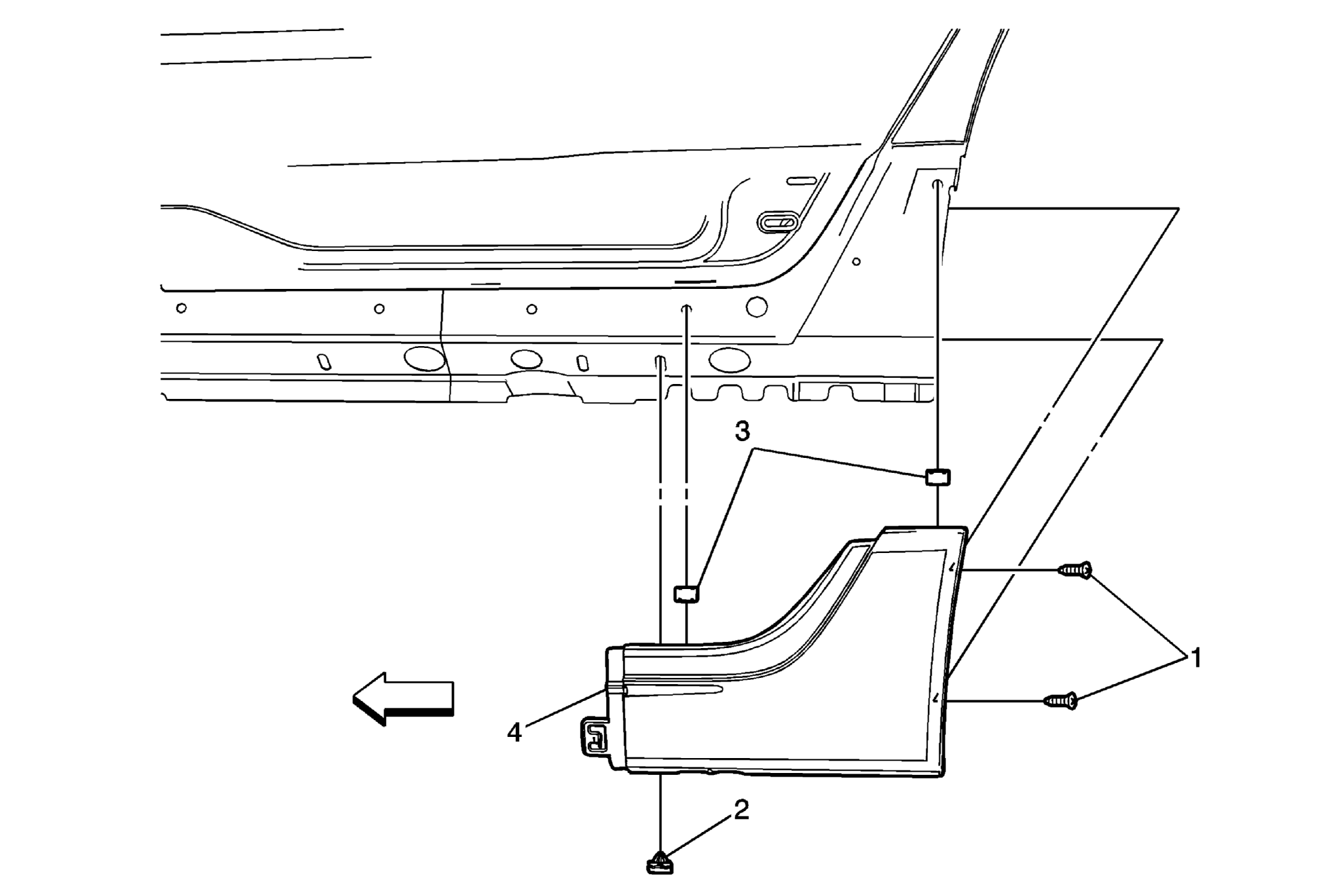

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Open the rear door in order to remove the rocker panel rear molding. |
|
| 1 | Rocker Panel Rear Molding Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 1.5 N.m (13 lb in) |
| 2 | Rocker Panel Molding Lower Retainer (Qty: 1) |
| 3 | Rocker Panel Molding Upper Retainers (Qty: 2) |
| 4 | Rocker Panel Rear Molding Assembly Procedure: Release the lower and upper retainers from the rear rocker panel molding and remove. |
