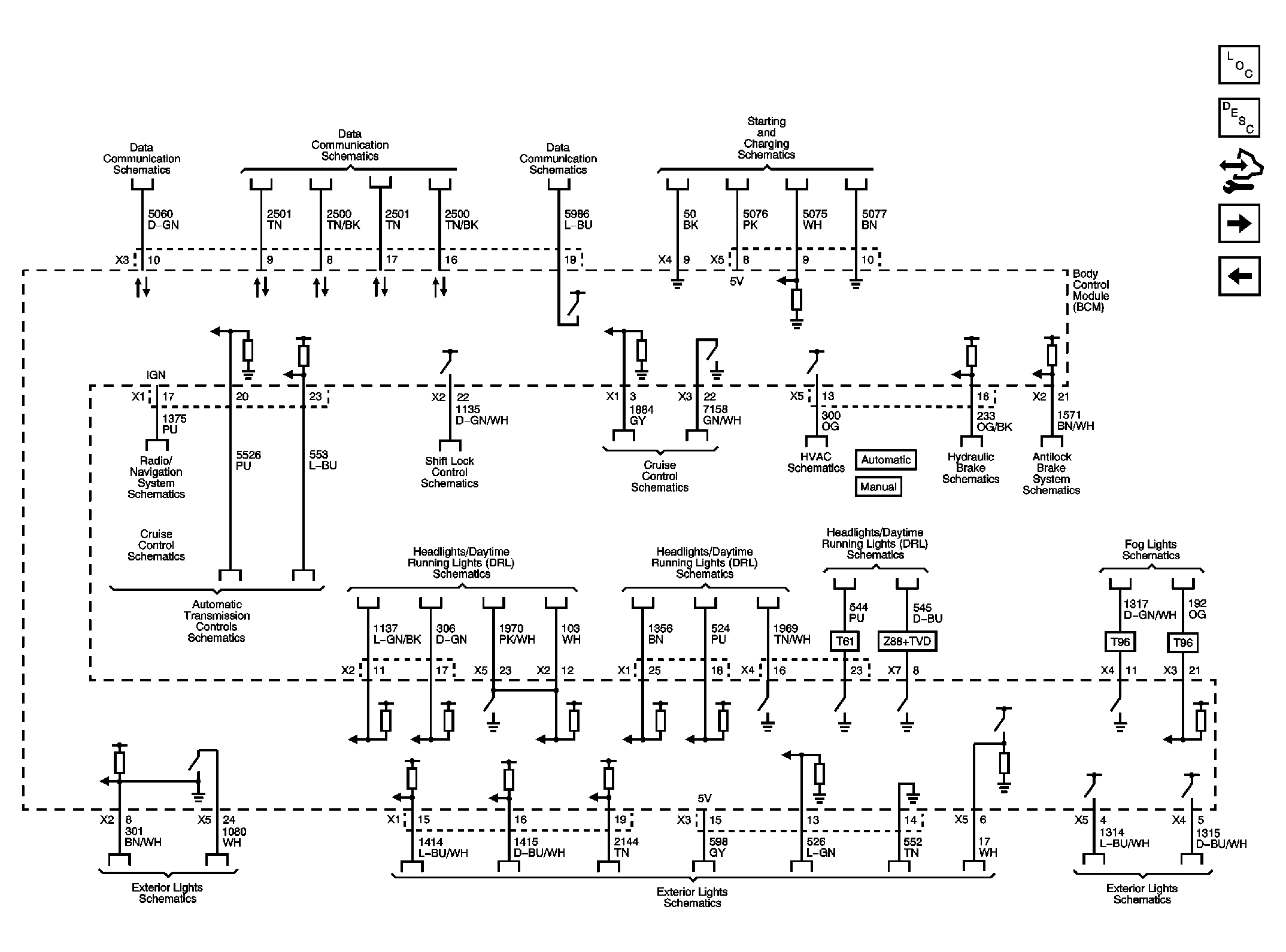

Home >> Chevrolet >> 2011 >> Traverse LS, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Wiring Schematic Diagrams >> Body Control System Schematics >> Subsystem References (1 of 3)
