Power, Ground, and References to Power Distribution and Power Moding

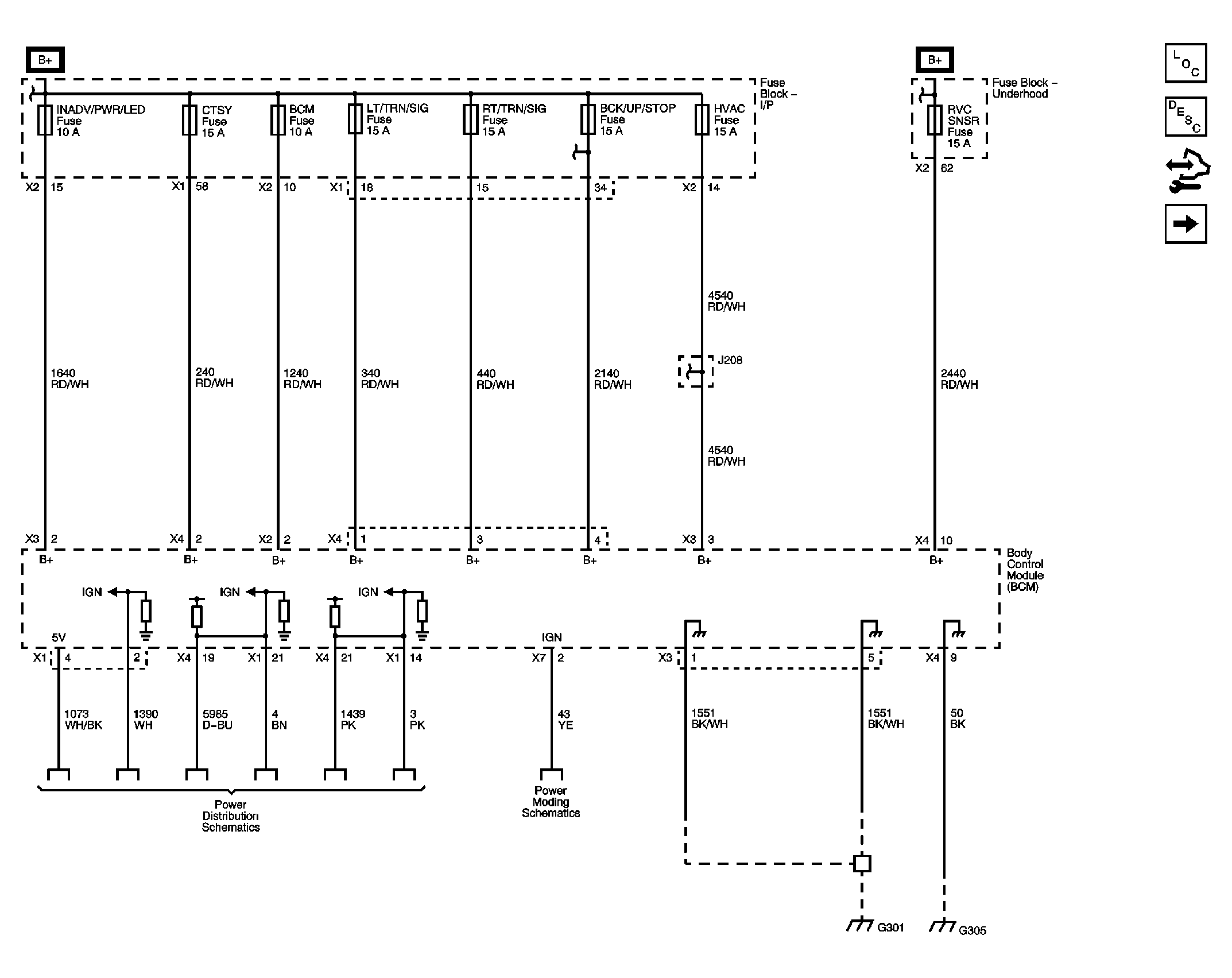

Fig 1: Wiring Schematic Power, Ground, And References To Power Distribution And Power Moding

GM2381845

Courtesy of GENERAL MOTORS CORP.
