Starting System and Charging System Wiring Schematics: Starting

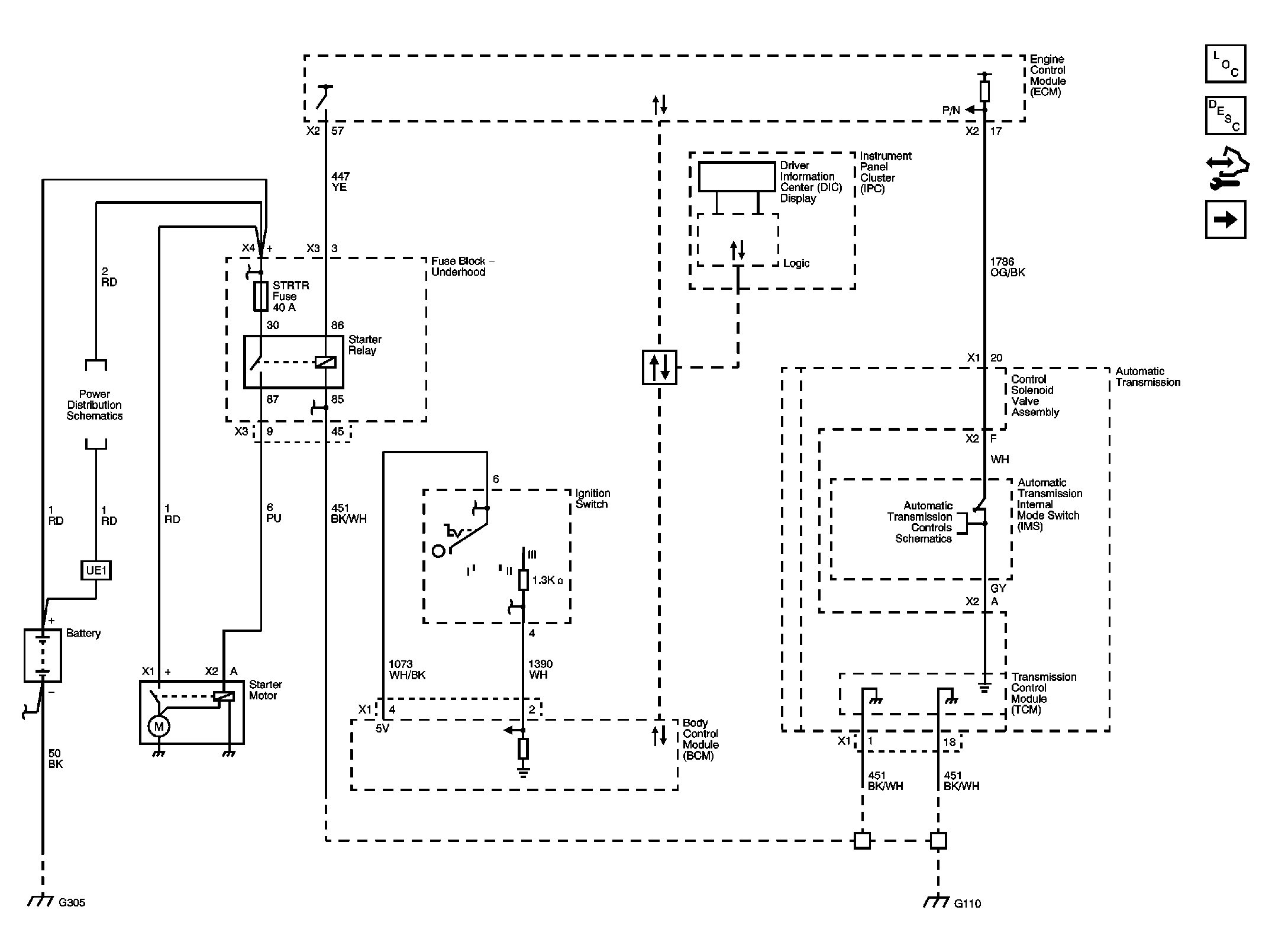

Fig 1: Starting System Wiring Schematic

GM2381819

Courtesy of GENERAL MOTORS CORP.
