Defogger Wiring Schematics: Defogger

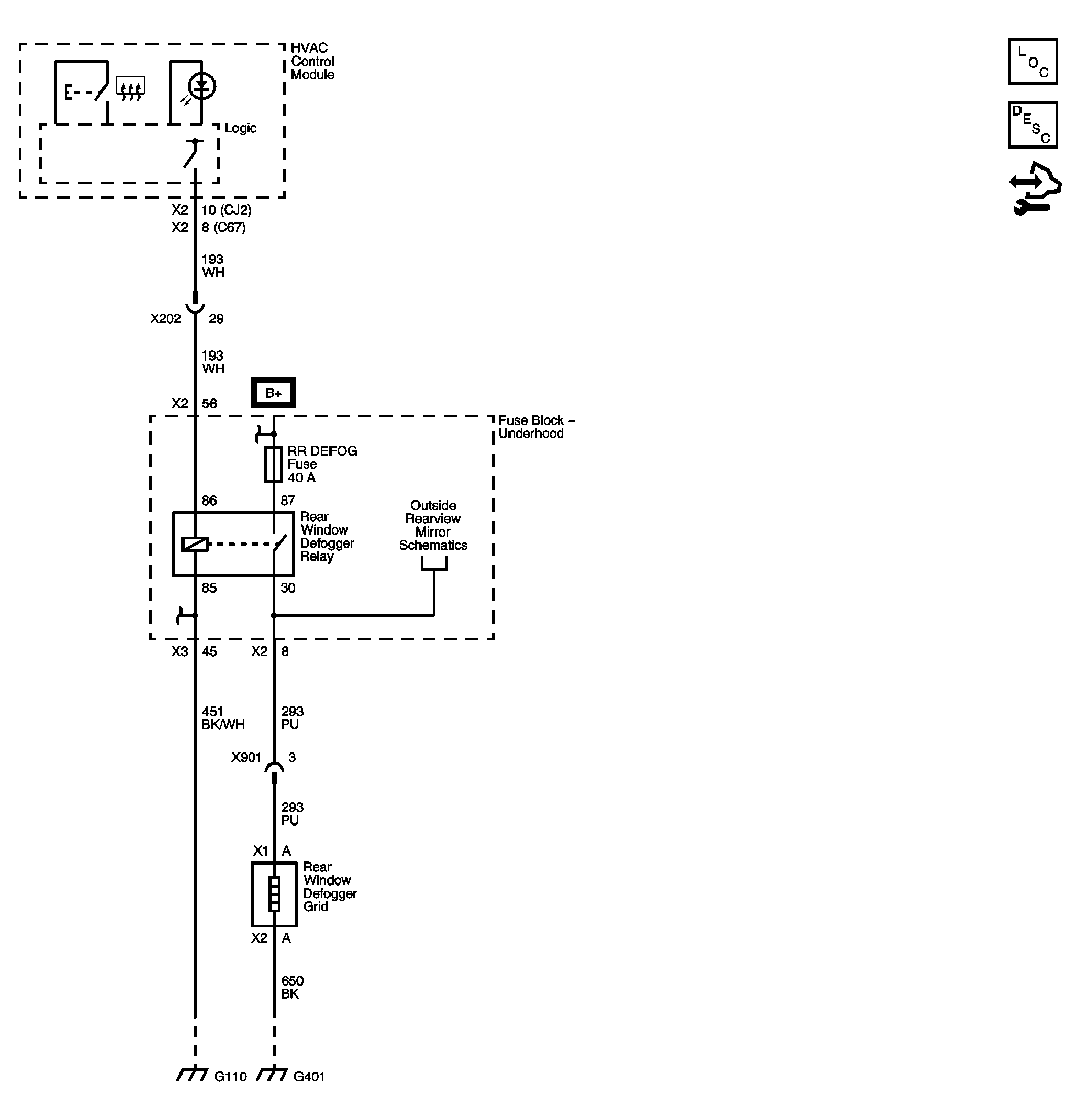

Fig 1: Defogger Wiring Schematic

GM2381502

Courtesy of GENERAL MOTORS CORP.
