Radio Rear Side Door Speaker Replacement
Radio Rear Side Door Speaker Replacement

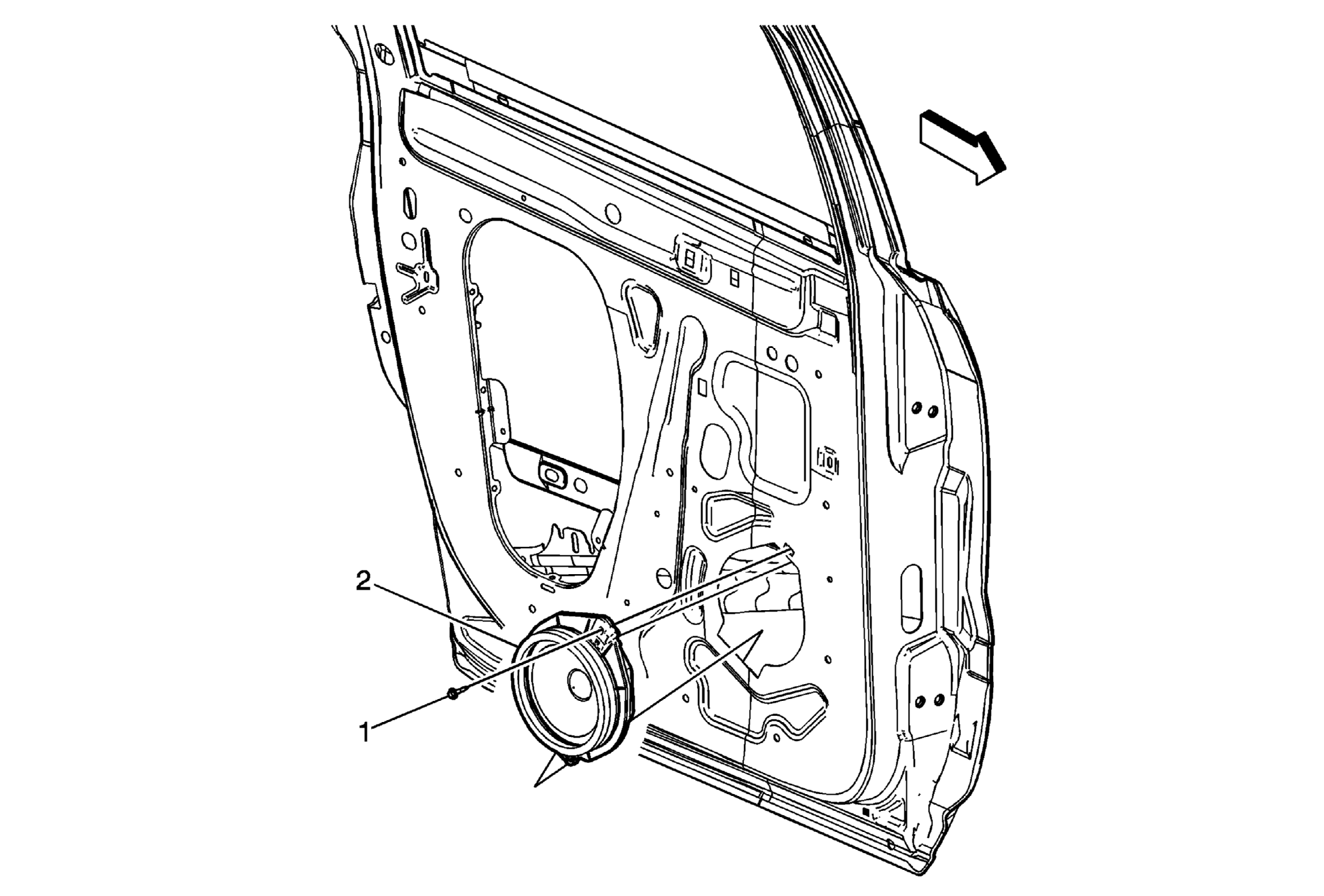

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear door inner trim panel. Refer to Rear Side Door Trim Panel Replacement (Traverse) , Rear Side Door Trim Panel Replacement (Enclave) , Rear Side Door Trim Panel Replacement (Acadia) . |
|
| 1 | Rear Side Door Speaker Screw
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Side Door Speaker Procedure Disconnect the electrical connectors. |
