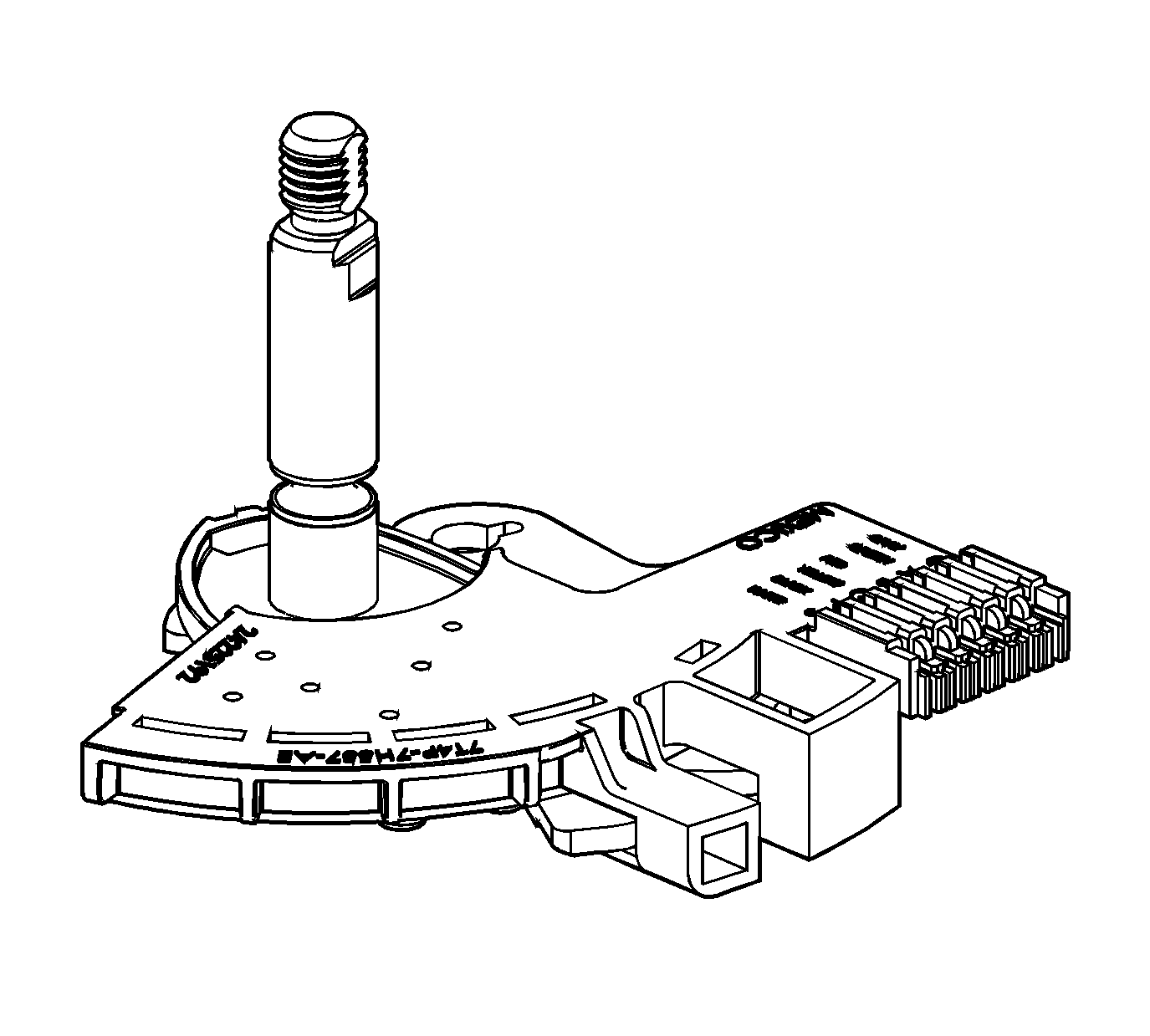

Manual Shift Detent Lever with Shaft Position Switch Assembly (IMS)
The transmission shaft position switch assembly is a sliding contact switch attached to the manual shaft detent lever assembly inside the transmission case. The five inputs to the TCM from the transmission manual shift shaft switch assembly indicate the transmission gear selector lever position. This information is used for engine controls as well as determining the transmission shift patterns. The state of each input is available for display on the scan tool. The five input parameters represented are Signal A, Signal B, Signal C, Signal P (Parity) and Signal N (P/N Start). The transmission shaft position switch assembly is connected to the Control Solenoid (W/Body and TCM) Valve Assembly via the Control Solenoid Valve Assembly X2 (IMS) connector.
