Starting System and Charging System Wiring Schematics: Charging

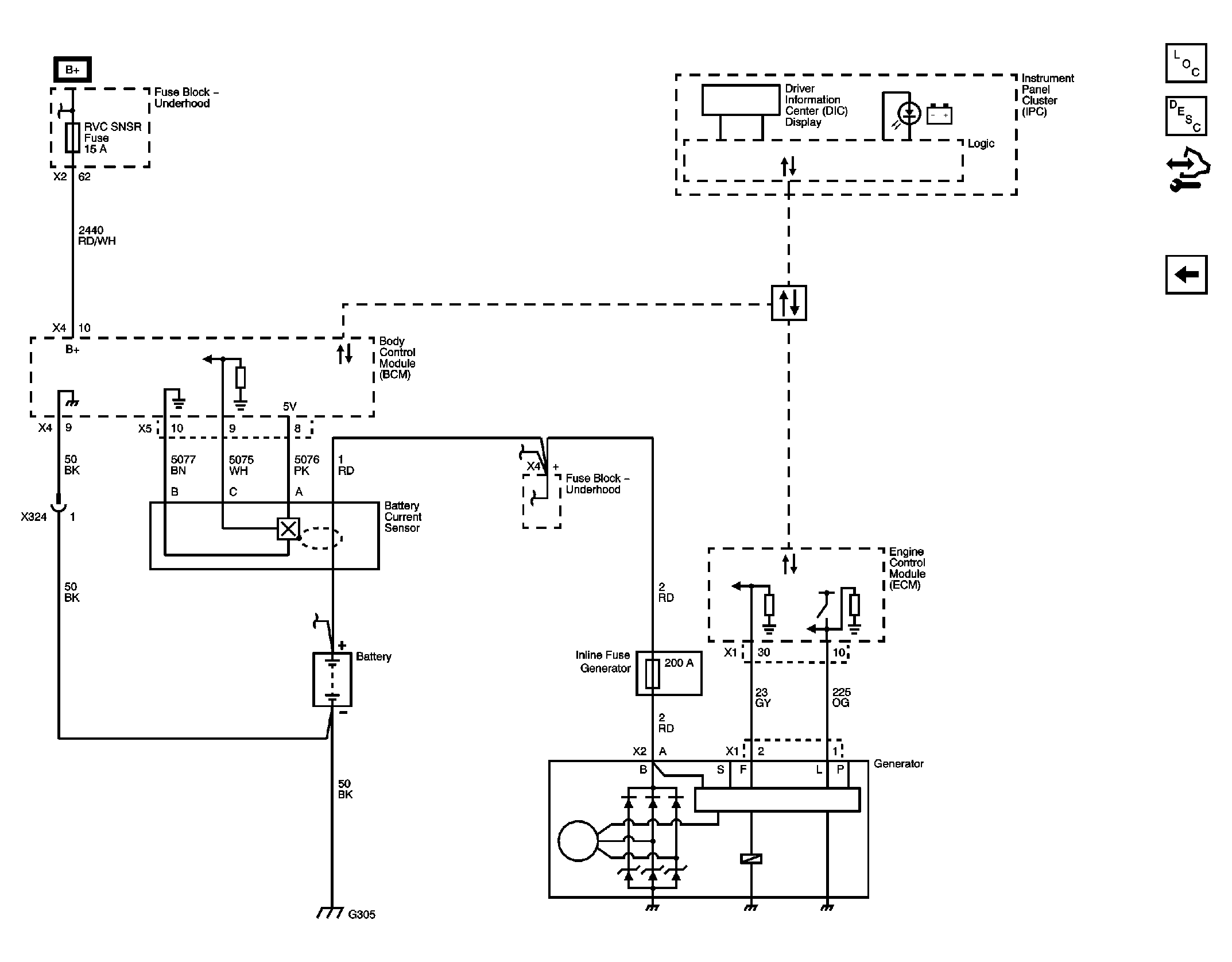

Fig 1: Charging System Wiring Schematic

GM2381820

Courtesy of GENERAL MOTORS CORP.
