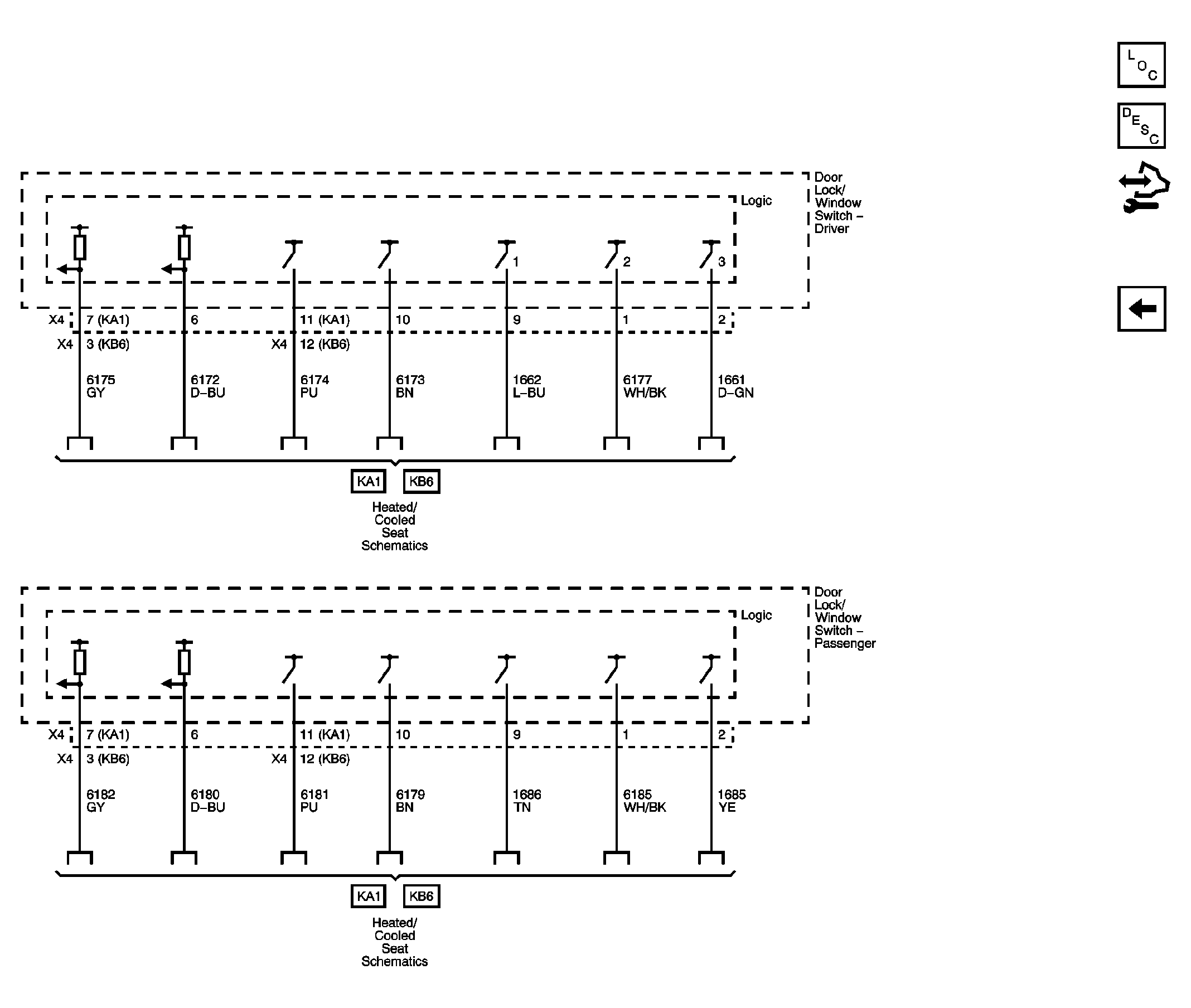

Home >> Chevrolet >> 2011 >> Traverse LS, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Power Door Lock System And Release Systems >> Wiring Schematics >> Door Control Module Wiring Schematics >> KA1 and KB6 Subsystem References
