Data Communication Wiring Schematics

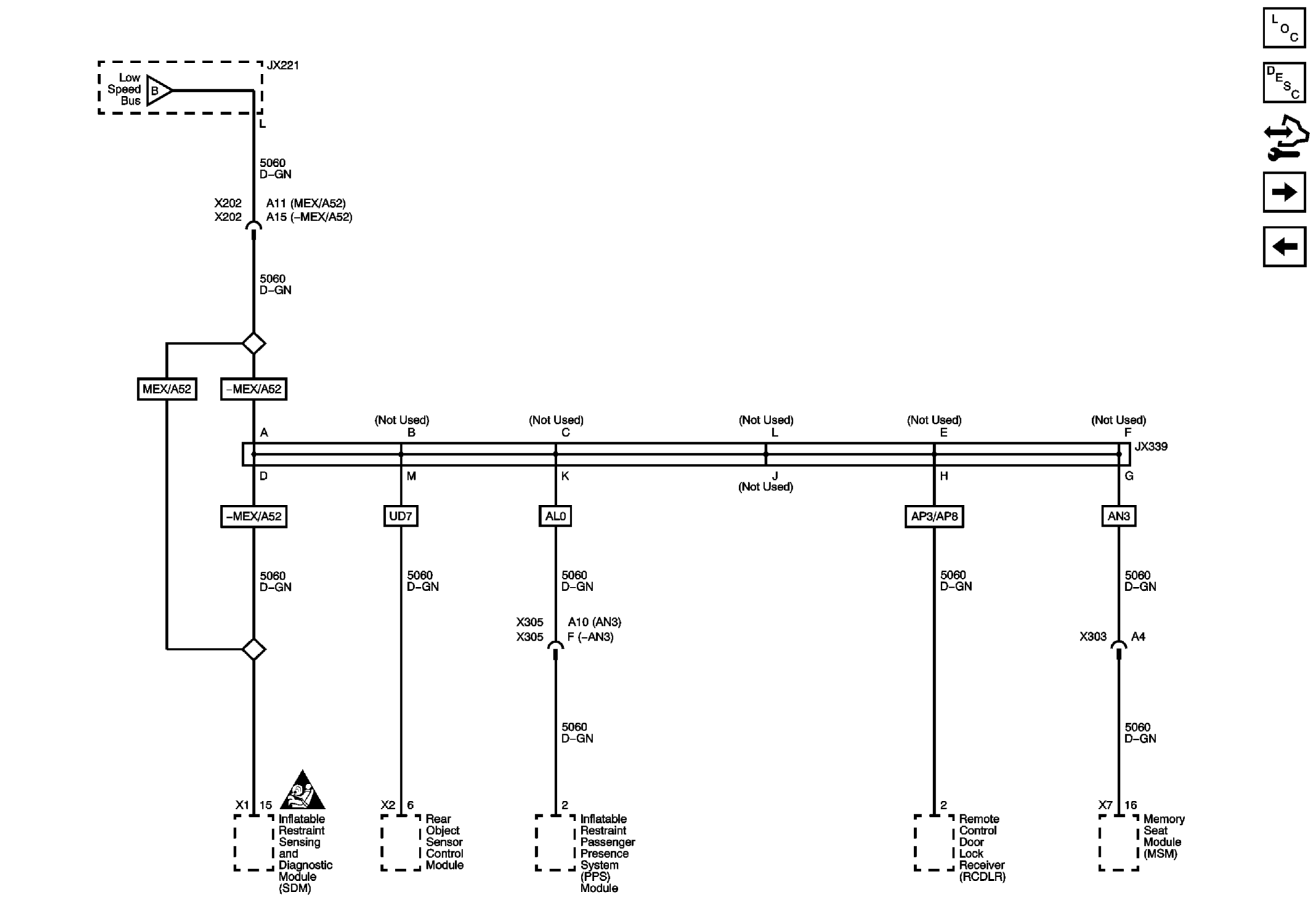

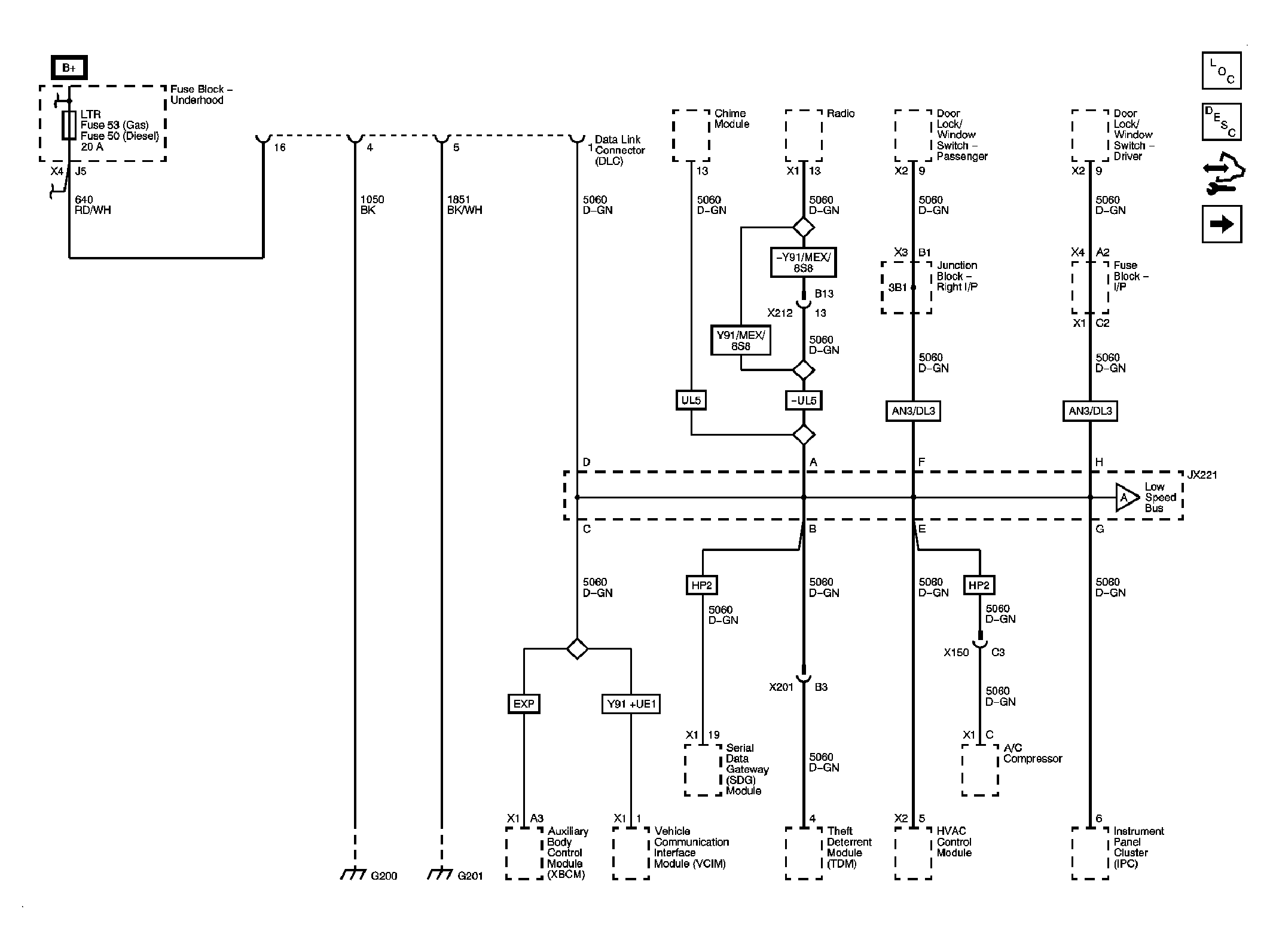

Fig 1: Low Speed Bus Wiring Schematic (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

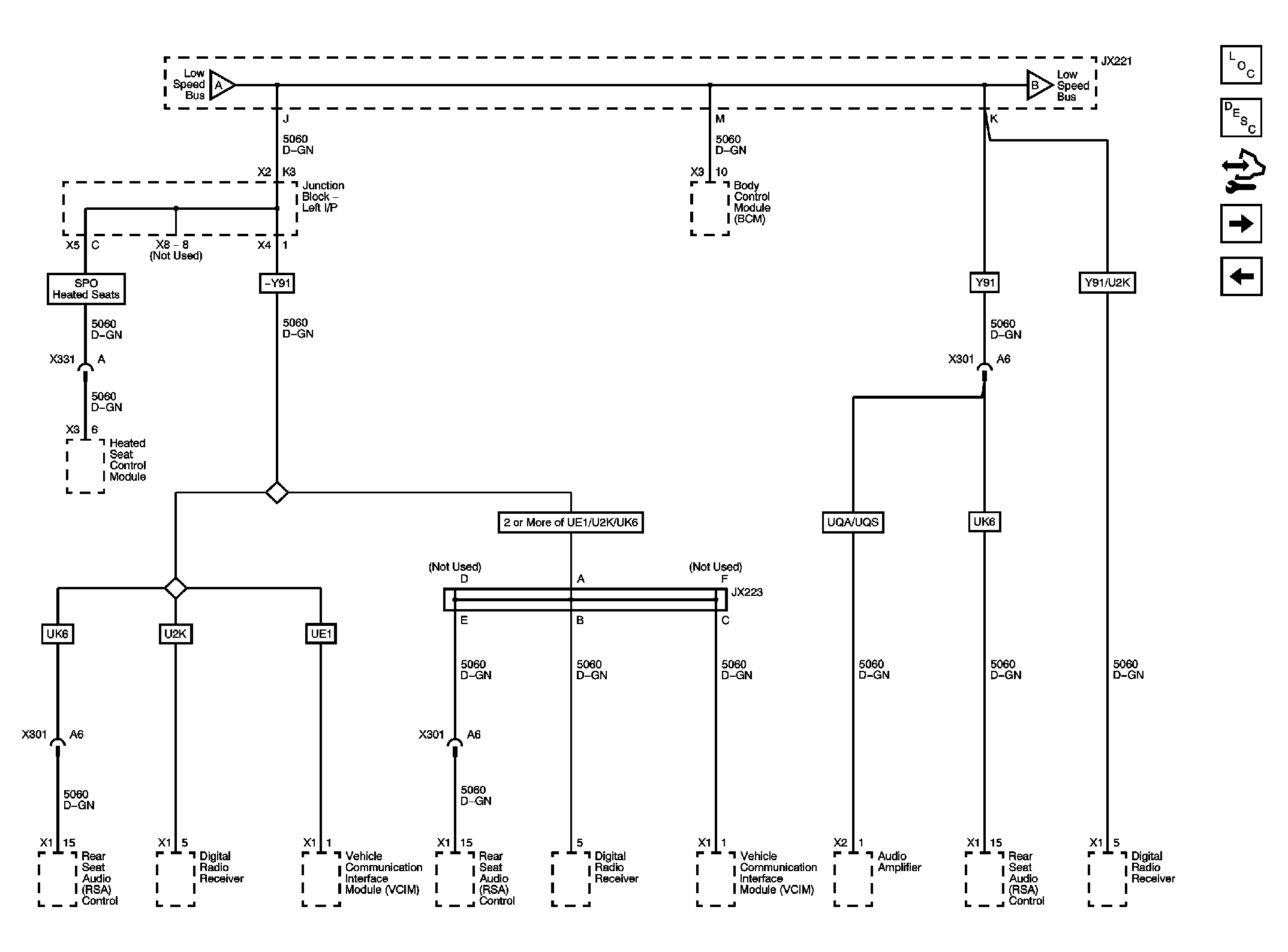

Fig 2: Low Speed Bus Wiring Schematic (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Low Speed Bus Wiring Schematic (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

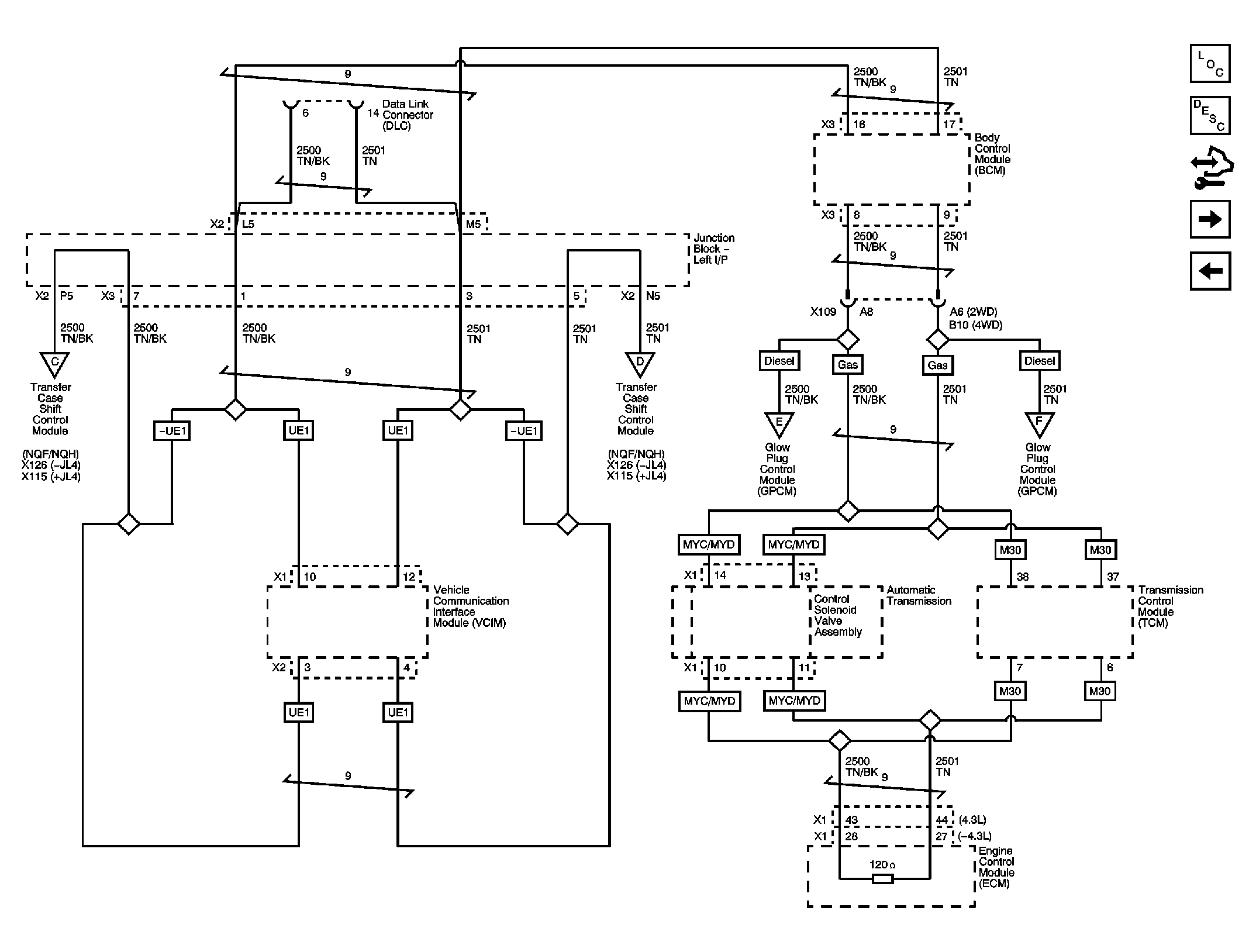

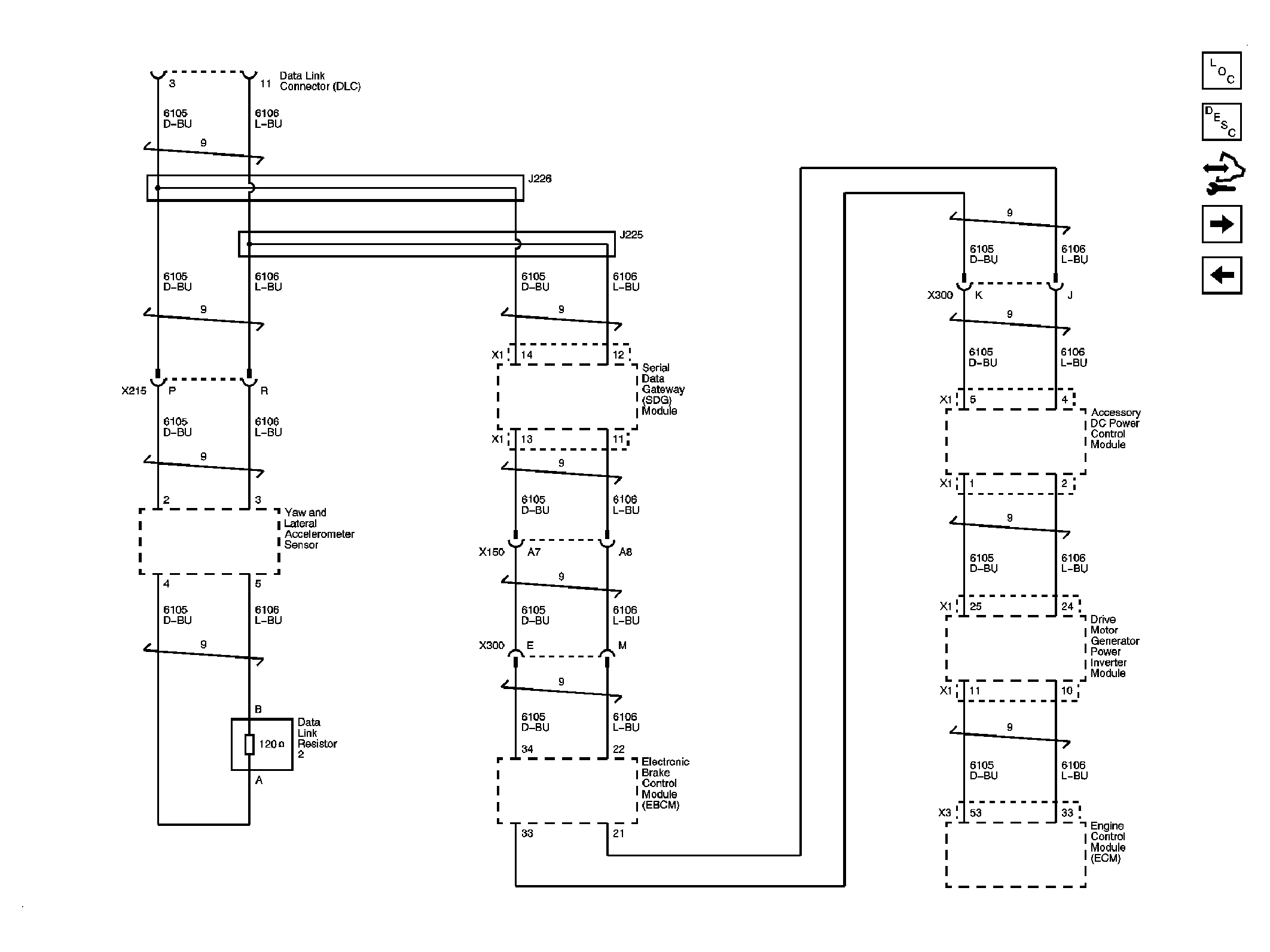

Fig 4: High Speed Bus Wiring Schematic (1 Of 6) (Except MEX Or HP2)

Courtesy of GENERAL MOTORS CORP.

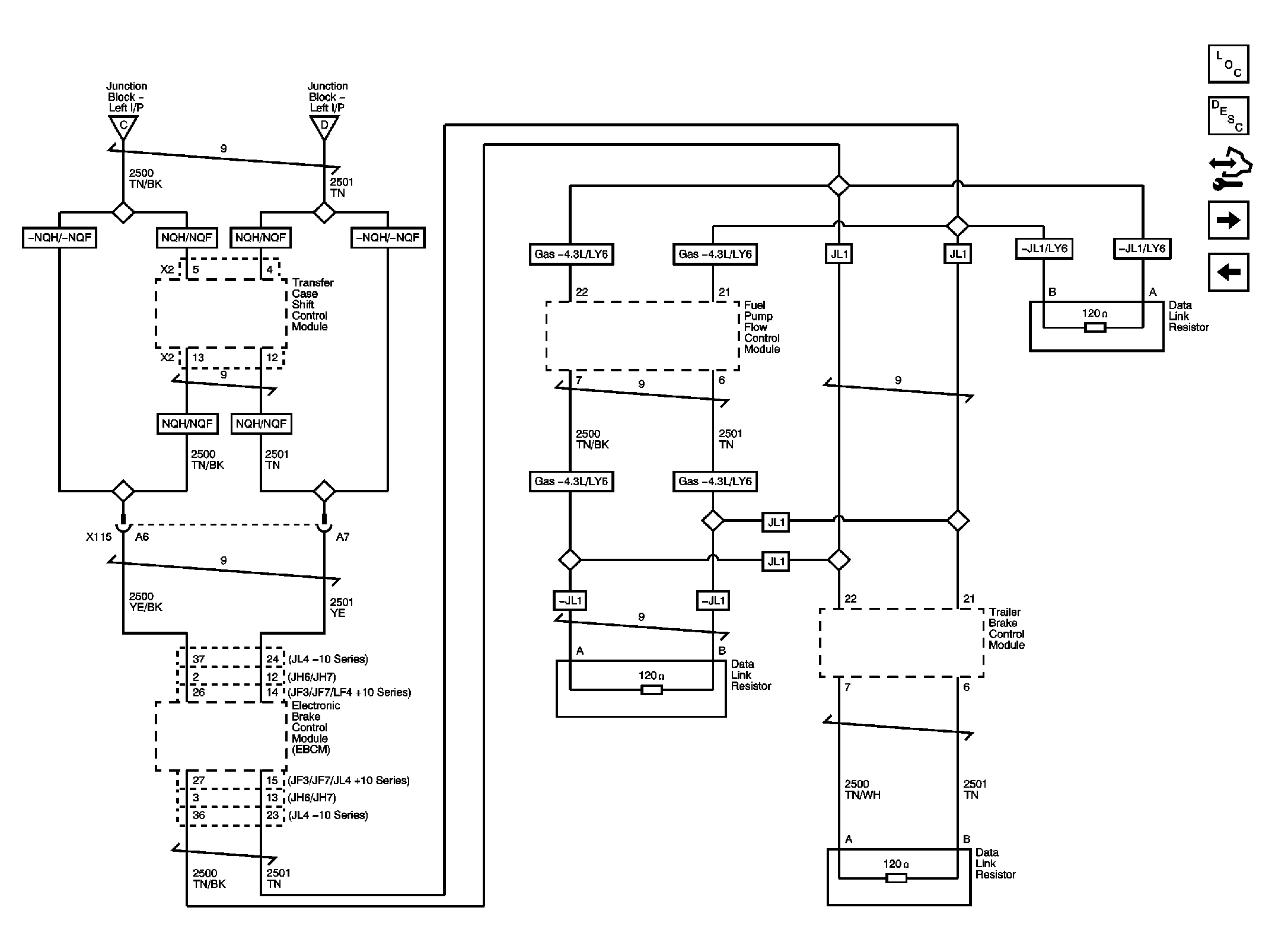

Fig 5: High Speed Bus Wiring Schematic (2 Of 6) (Except MEX Or HP2)

Courtesy of GENERAL MOTORS CORP.

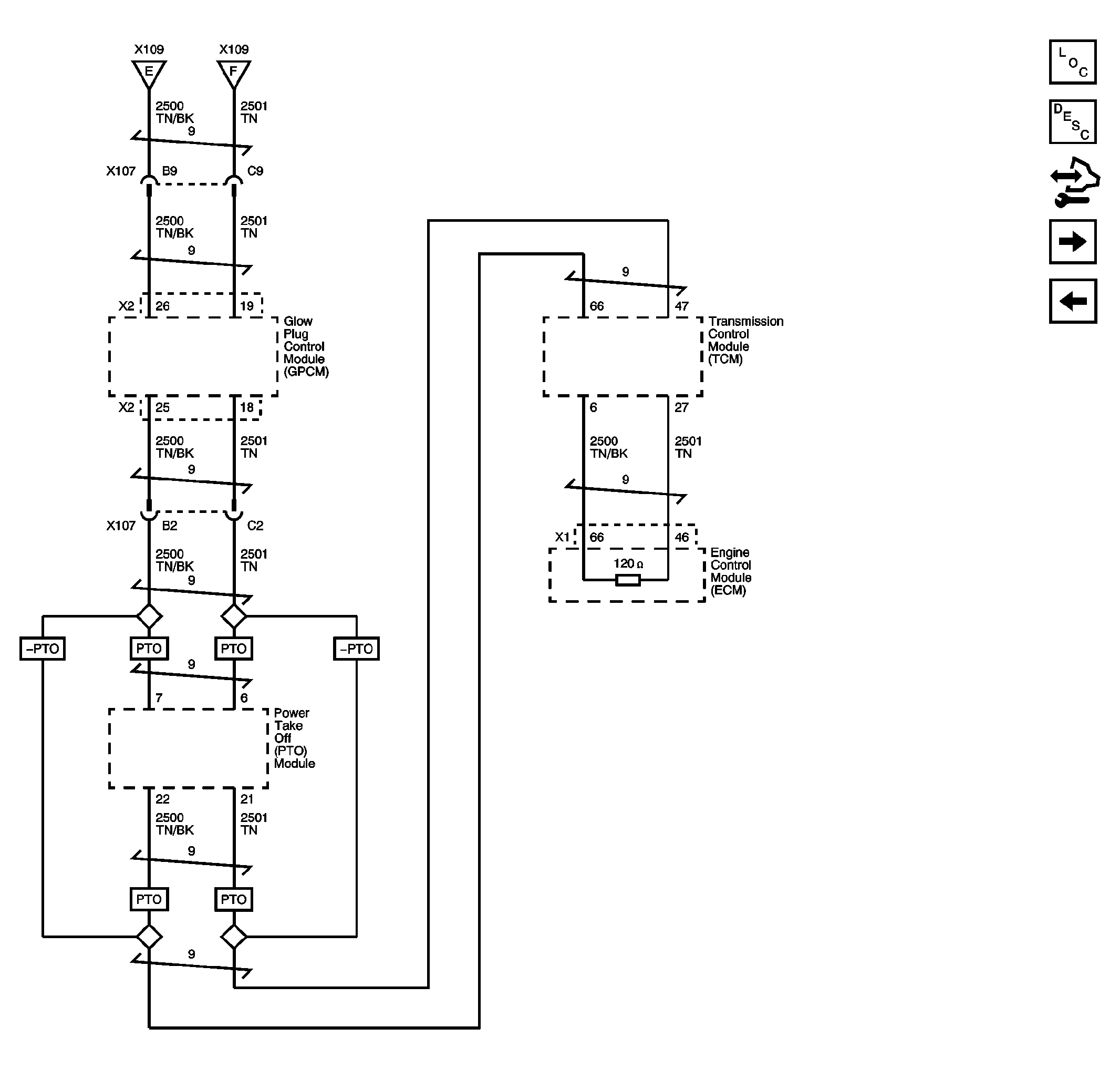

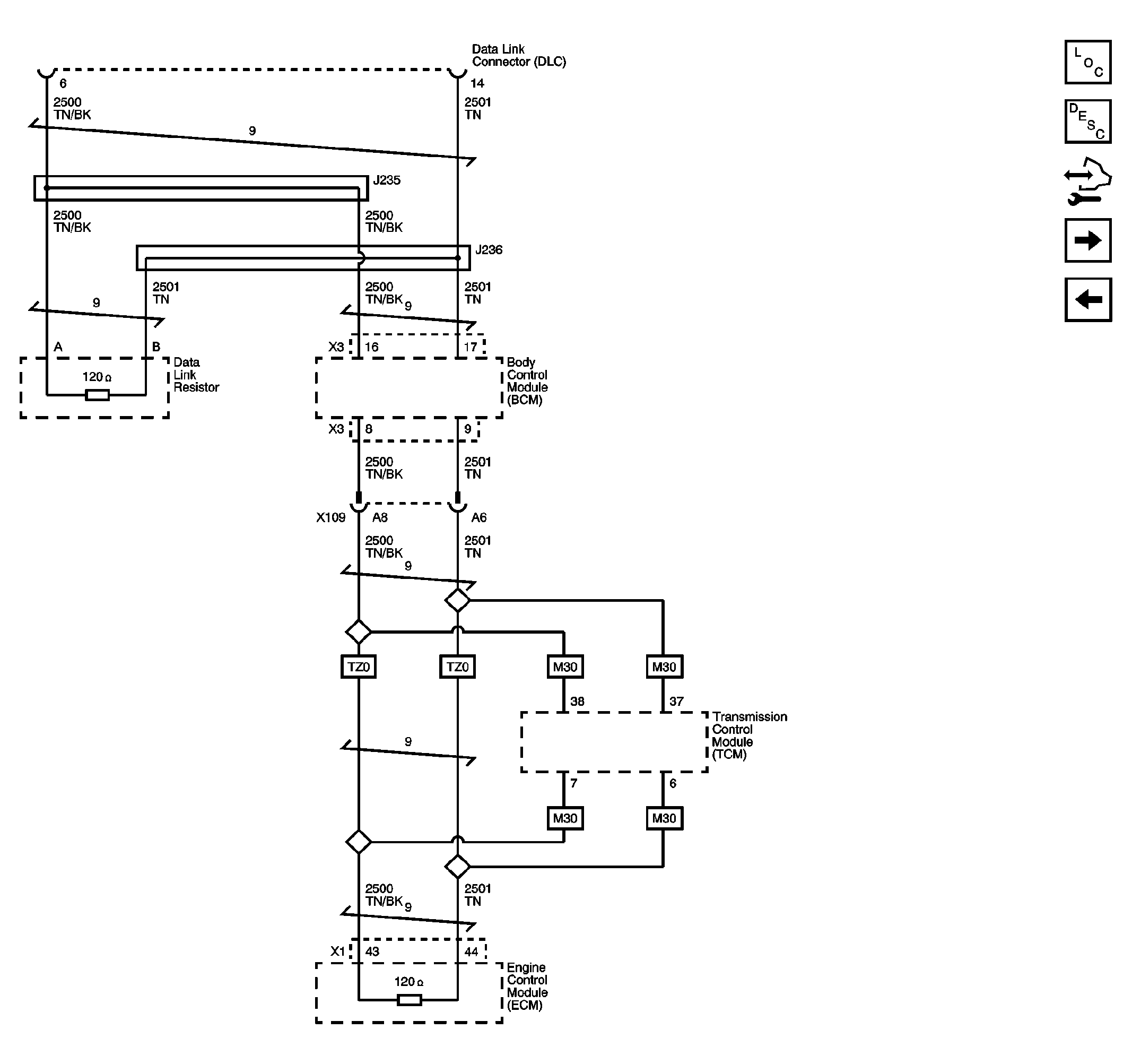

Fig 6: High Speed Bus Wiring Schematic (3 Of 6) (Diesel)

Courtesy of GENERAL MOTORS CORP.

Fig 7: High Speed Bus Wiring Schematic (4 Of 6) (MEX)

Courtesy of GENERAL MOTORS CORP.

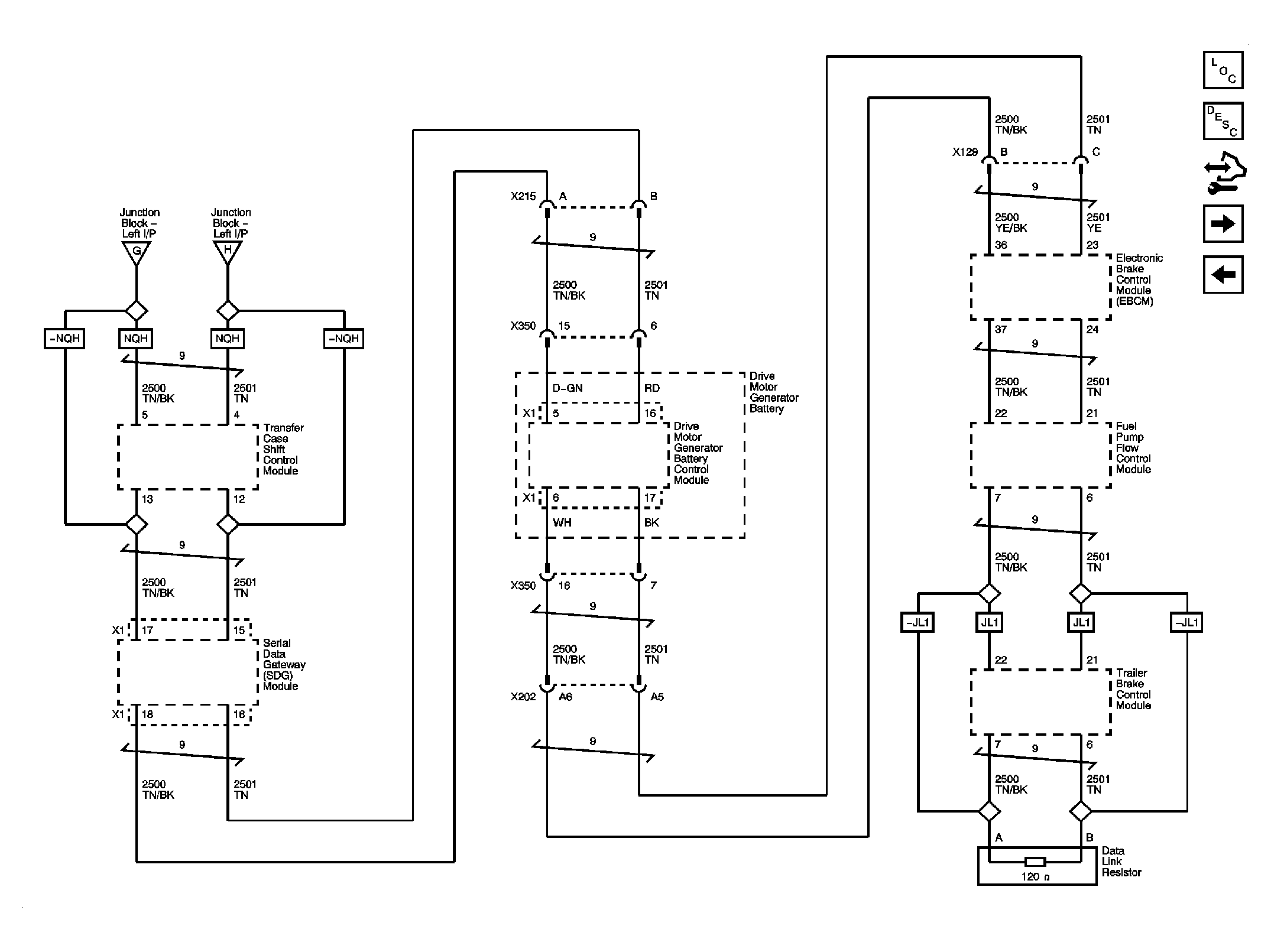

Fig 8: High Speed Bus Wiring Schematic (5 Of 6) (HP2)

Courtesy of GENERAL MOTORS CORP.

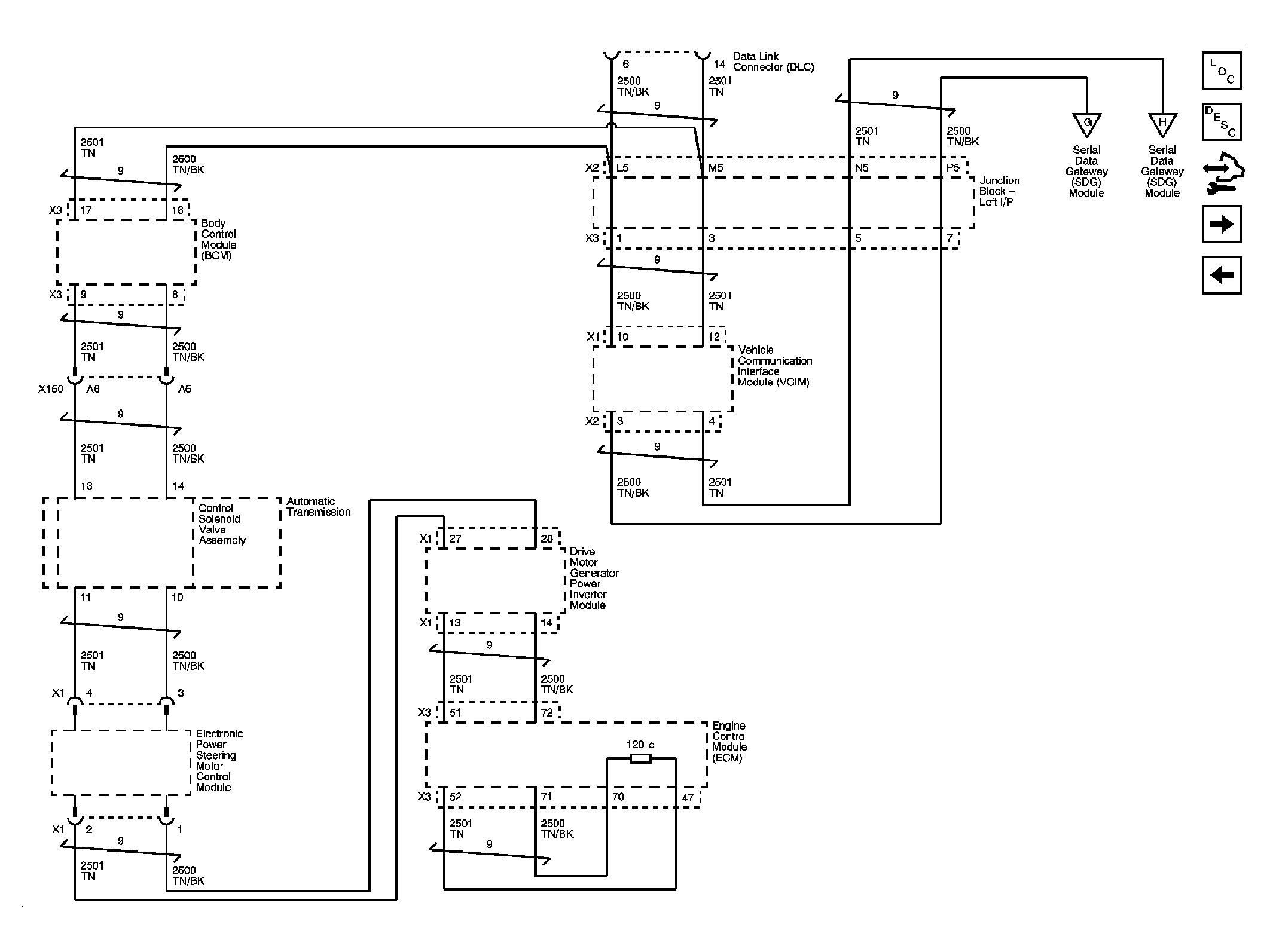

Fig 9: High Speed Bus Wiring Schematic (6 Of 6) (HP2)

Courtesy of GENERAL MOTORS CORP.

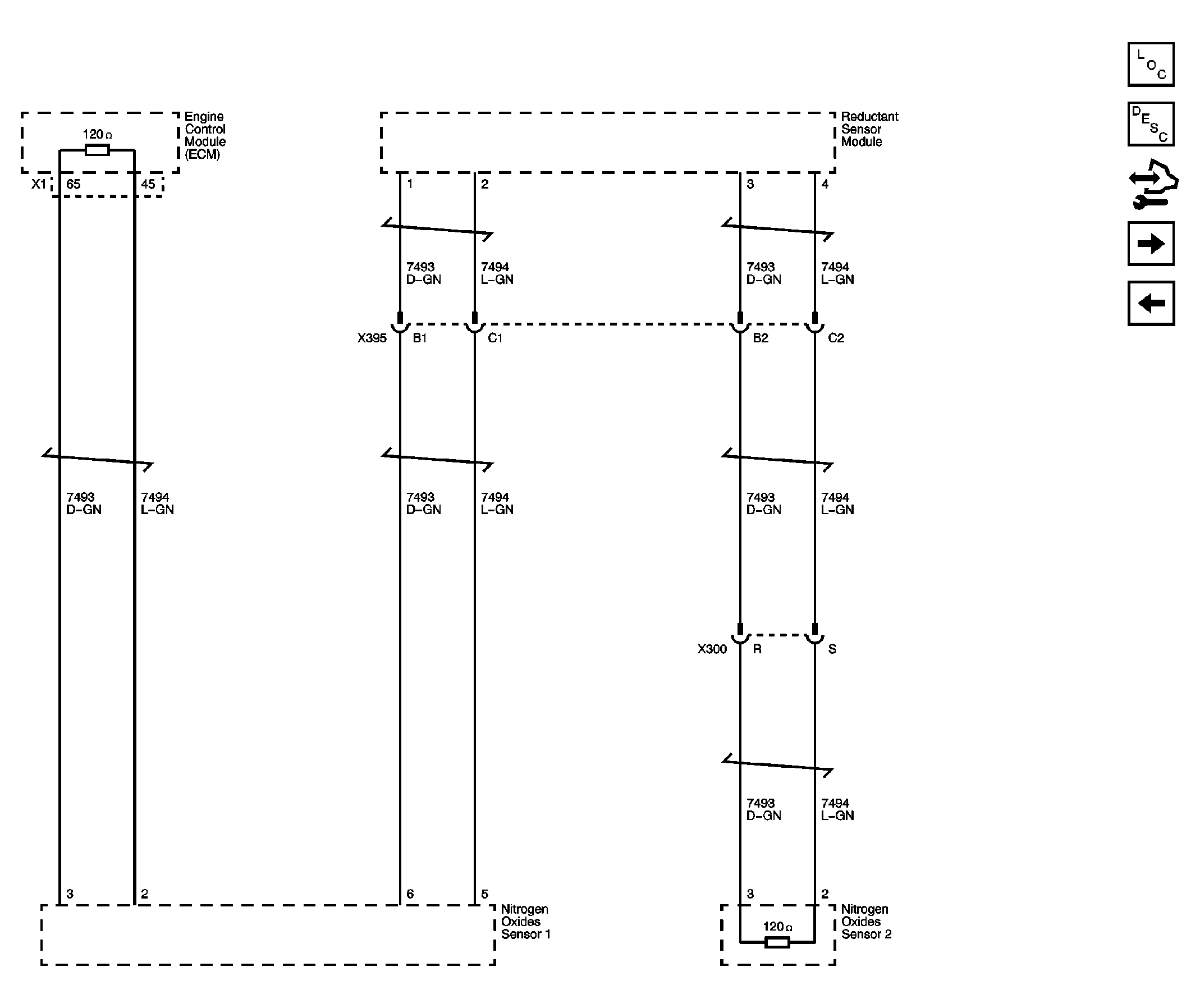

Fig 10: HTE GMLAN Wiring Schematic (LGH Or LML)

Courtesy of GENERAL MOTORS CORP.

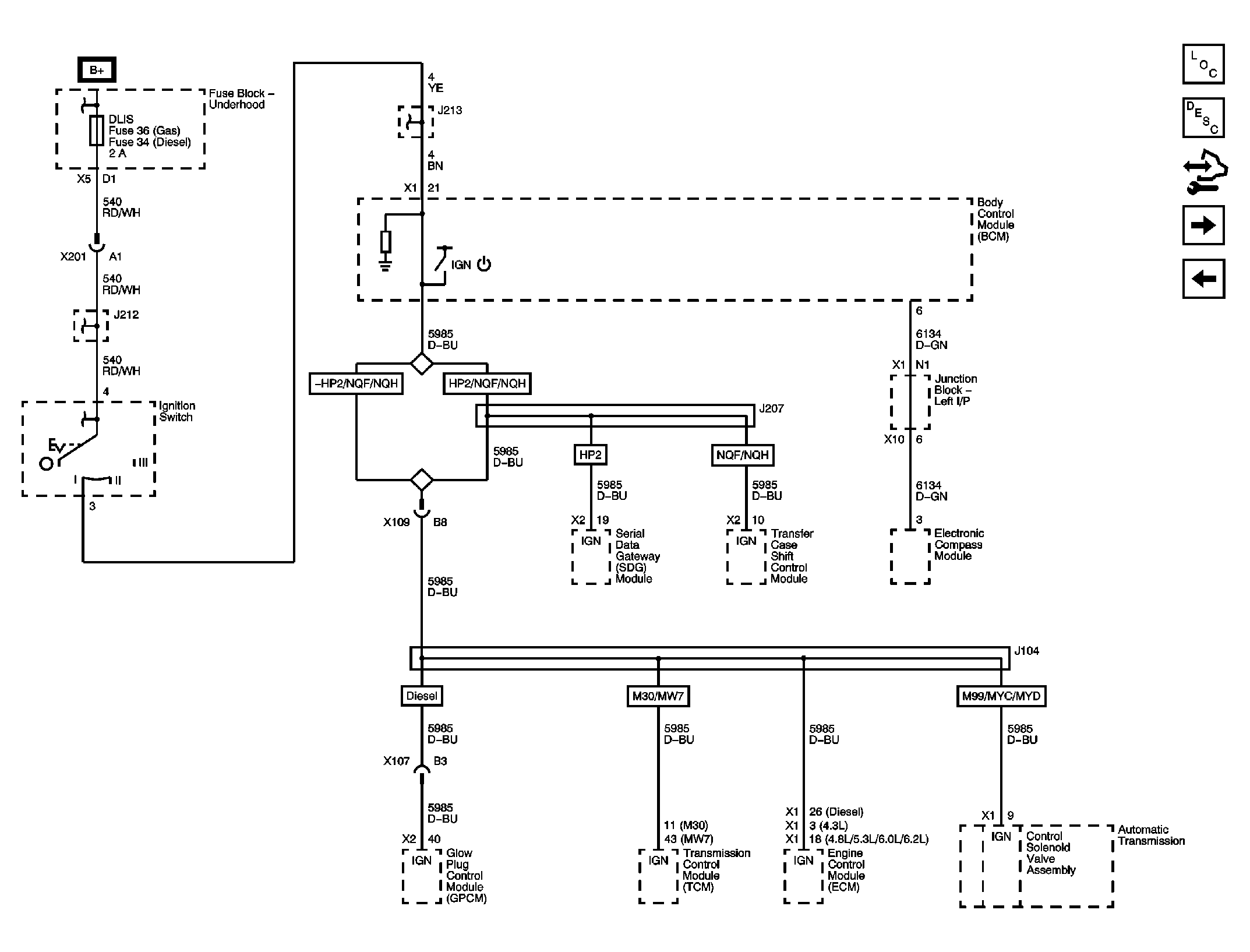

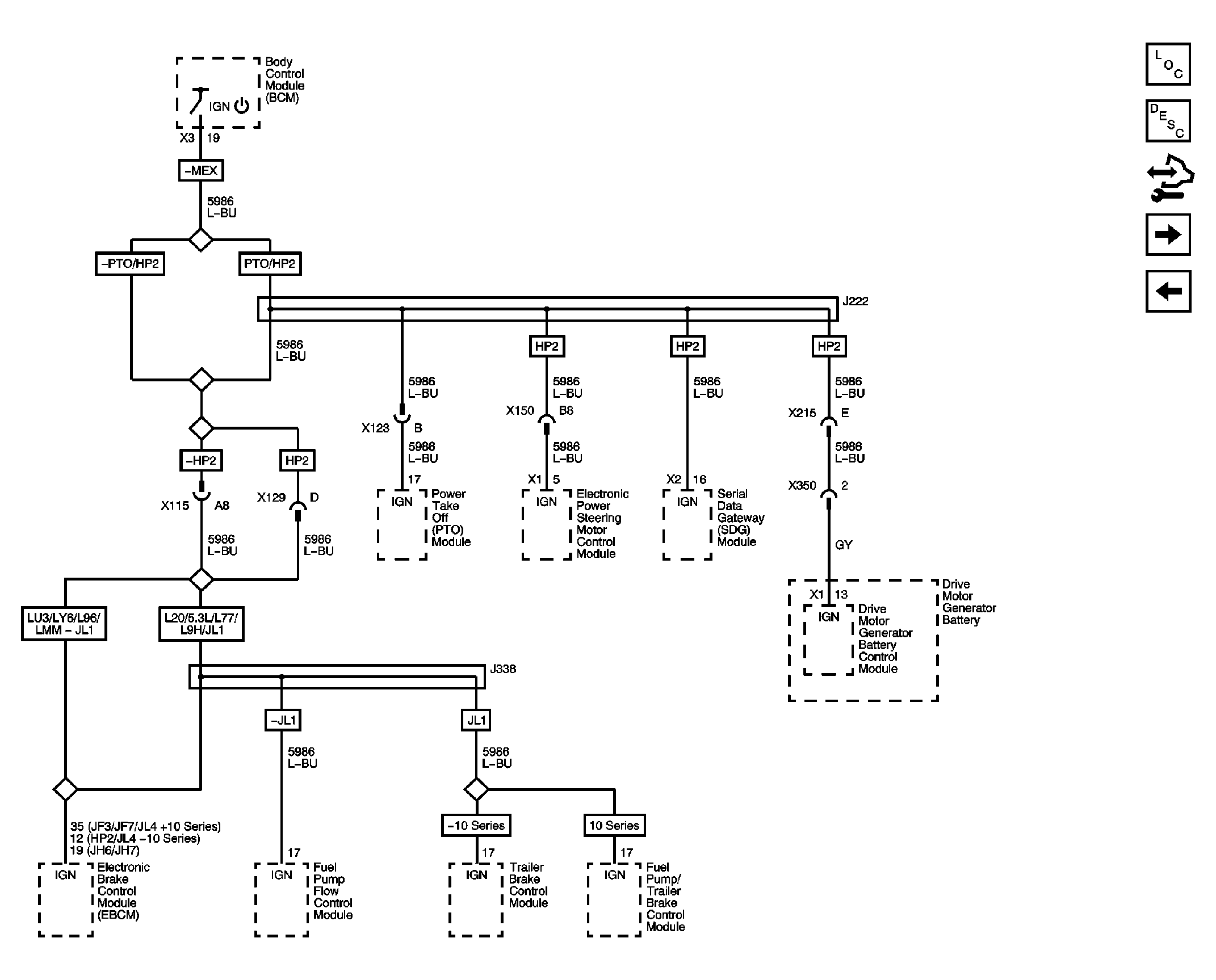

Fig 11: Serial Data Communication Enable Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: Accessory Wakeup And Local Interconnect Network (LIN) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 13: Powertrain Expansion Bus Wiring Schematic (HP2)

Courtesy of GENERAL MOTORS CORP.

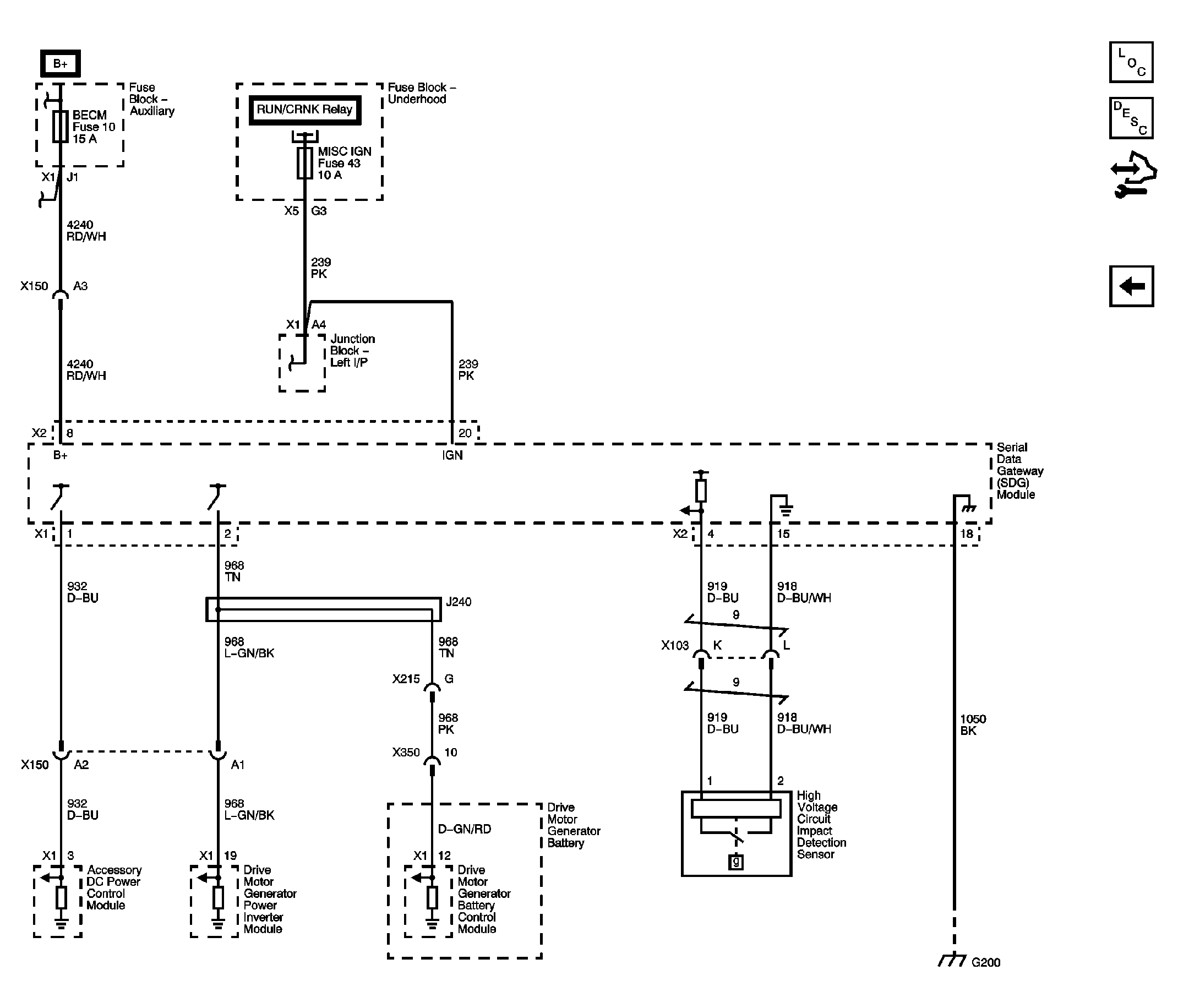

Fig 14: Serial Data Gateway (SDG) Module Wiring Schematic (HP2)

Courtesy of GENERAL MOTORS CORP.
