Body Control System Wiring Schematics

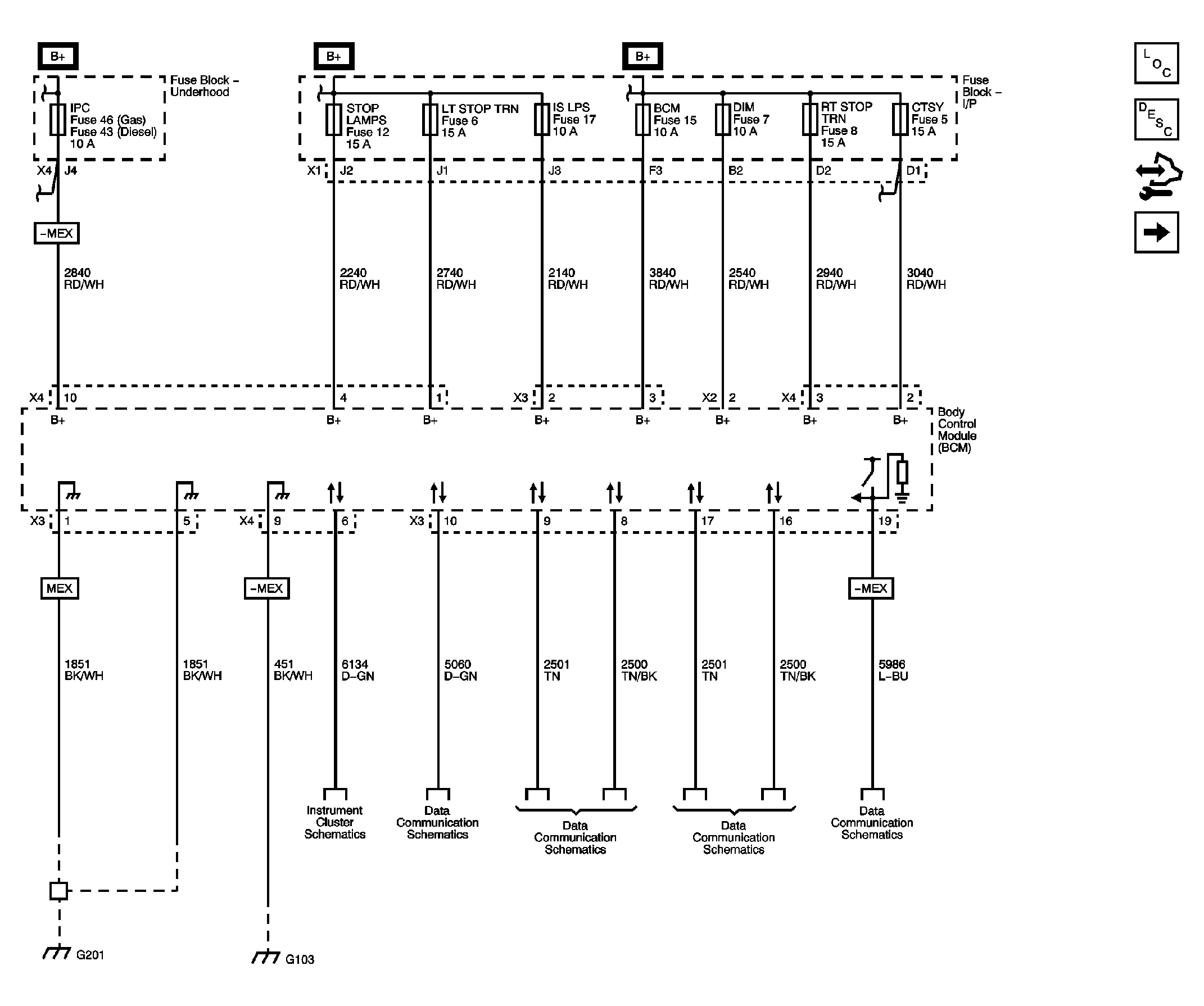

Fig 1: Module Power, Ground And Serial Data References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

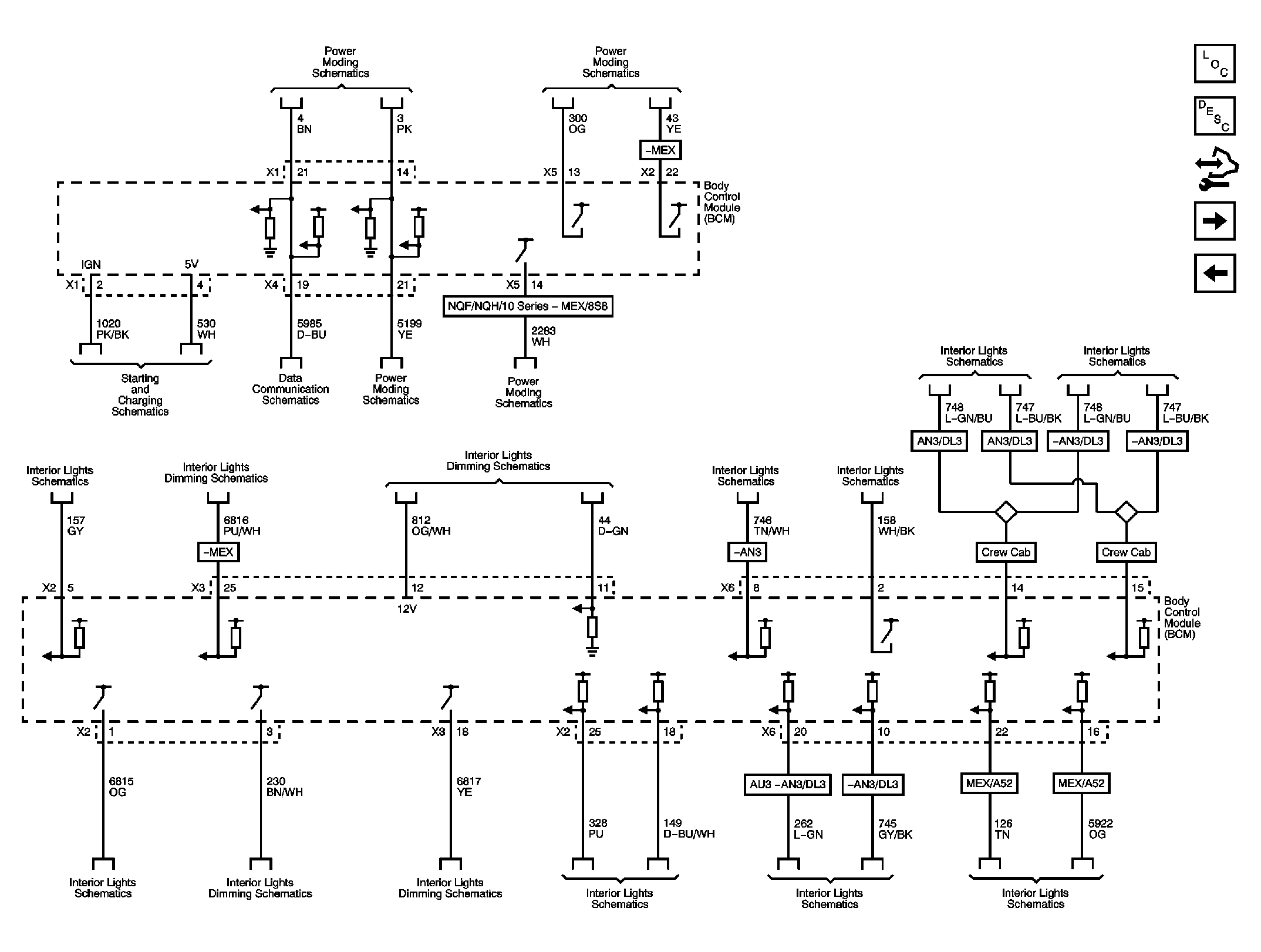

Fig 2: Power Moding And Interior Light References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

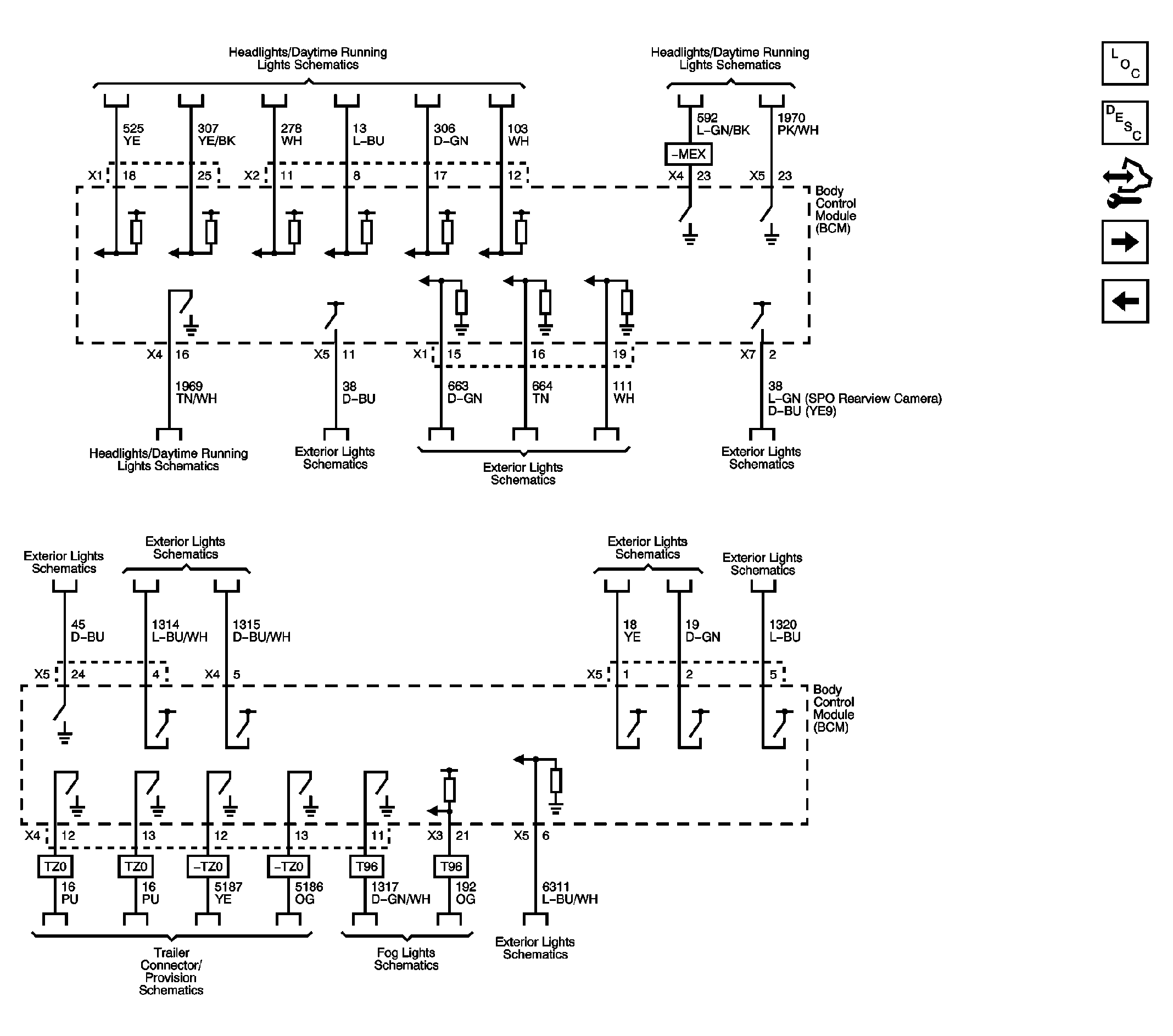

Fig 3: Exterior Light References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

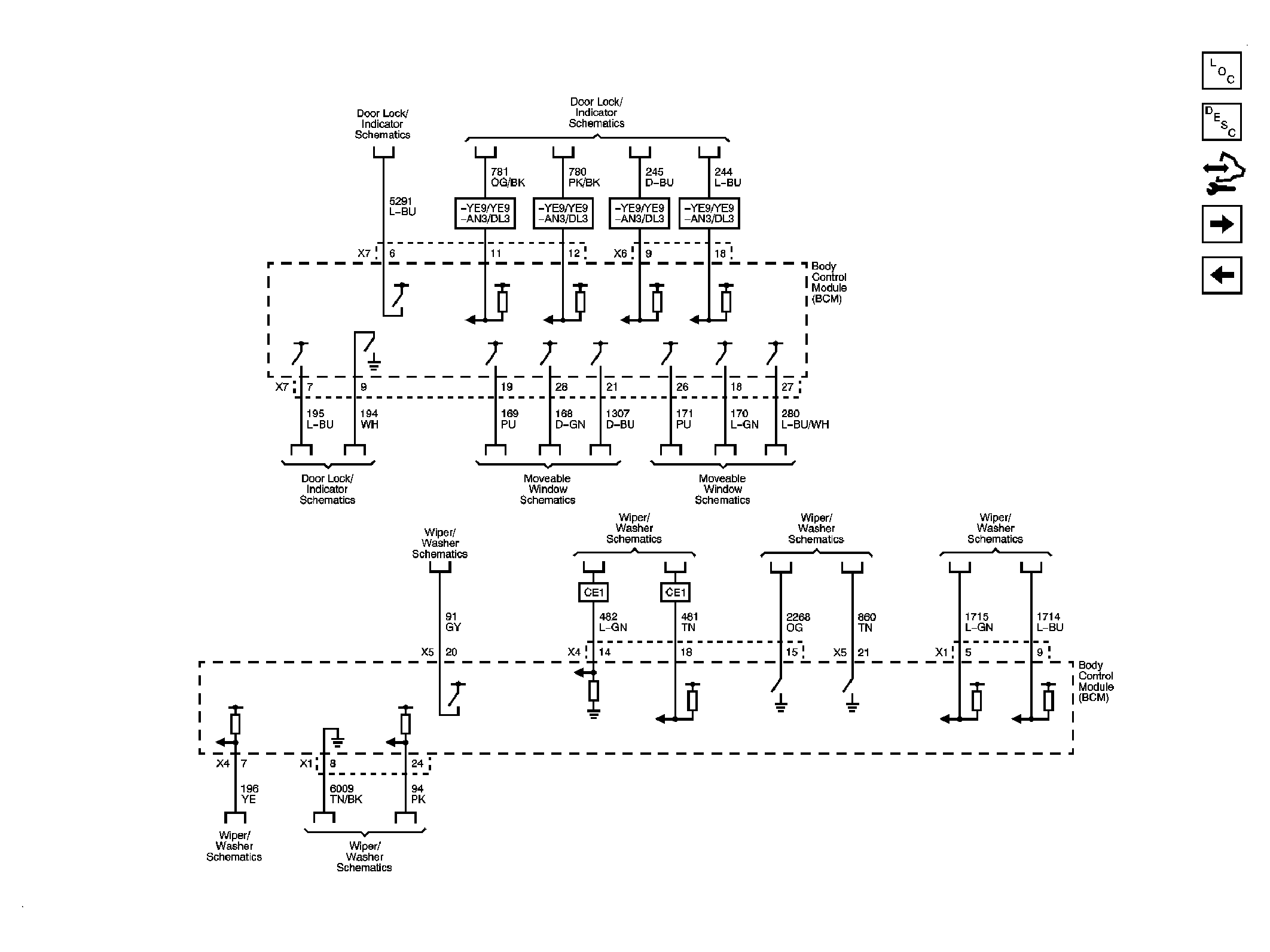

Fig 4: Vehicle Access And Wiper References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

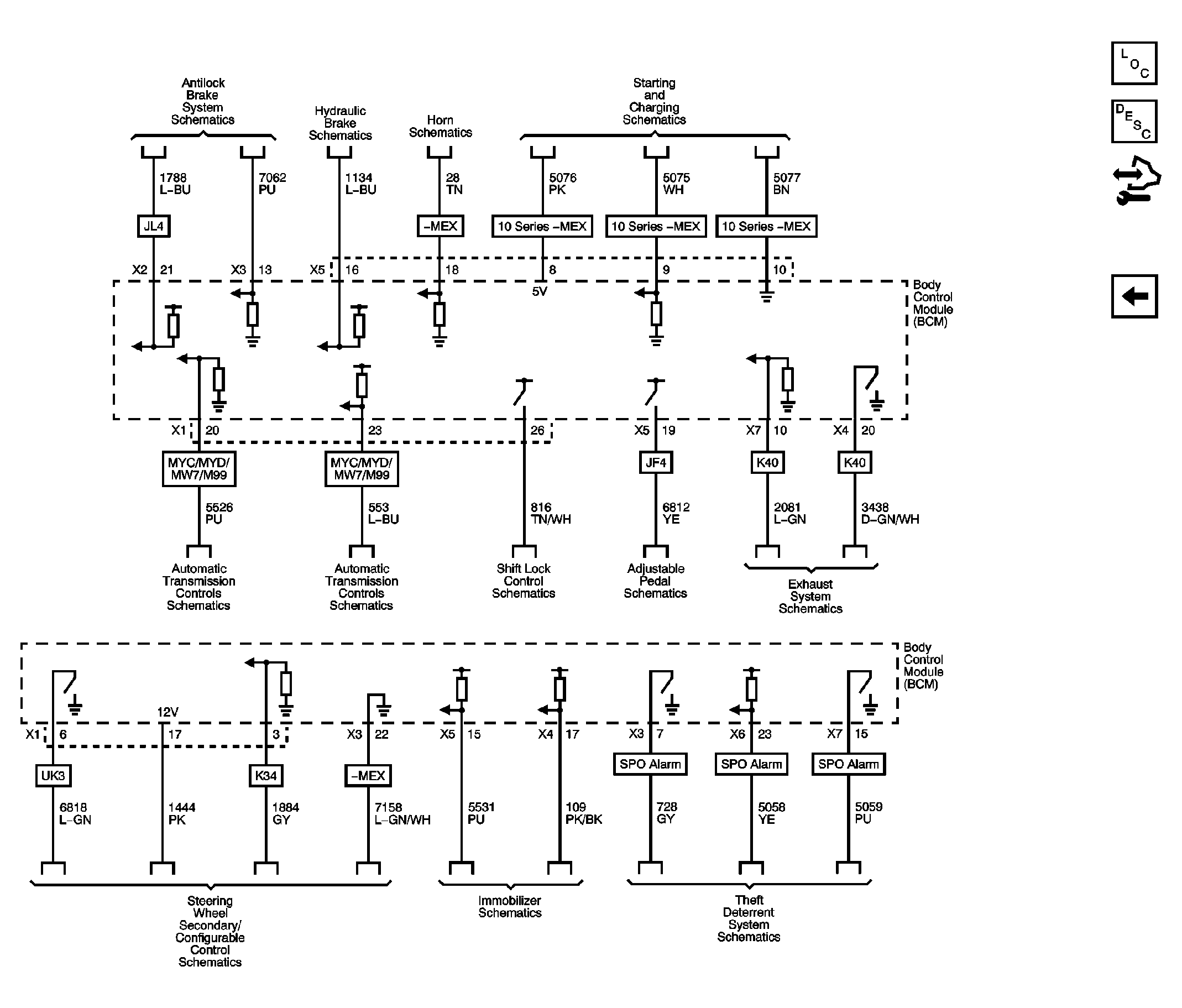

Fig 5: Brake, Horn, Transmission, Theft And Secondary/Configurable References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
