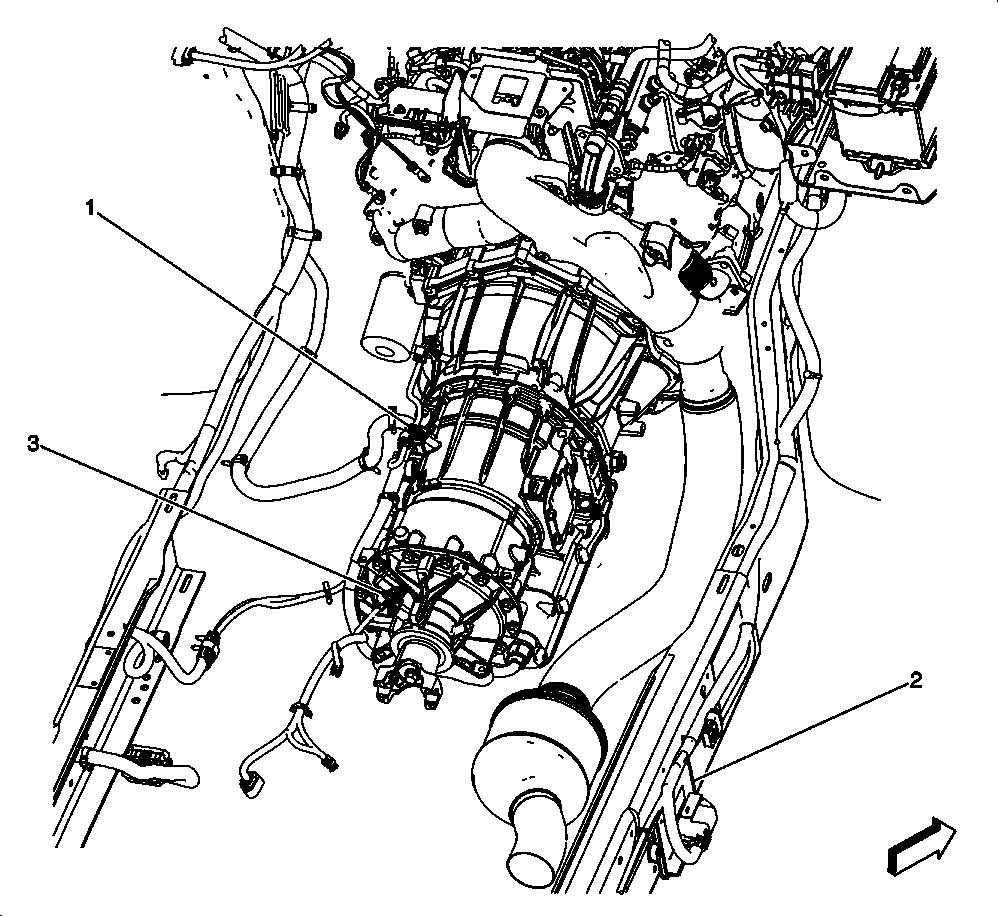

Identifying Rear Of The Engine Components (Diesel)
Identifying Engine Components (Rear) (Diesel)
| Component Name |
Callout |
| Automatic Transmission Turbine Speed Sensor (MW7) |
1 |
| Power Take Off (PTO) Module (PTO) |
2 |
| Vehicle Speed Sensor (VSS) (MW7) |
3 |
Courtesy of GENERAL MOTORS CORP.
