Identifying Engine Components (Right Front Side) (Diesel)
Identifying Engine Components (Right Front Side) (Diesel)

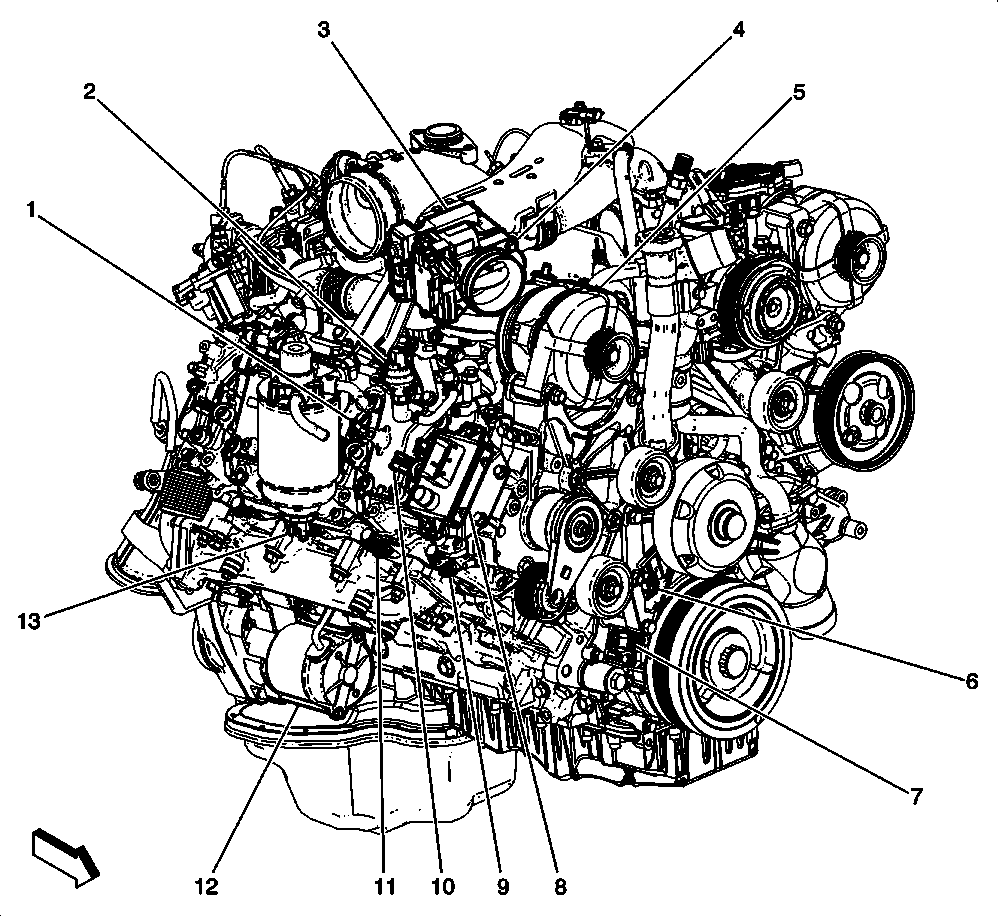

| Component Name | Callout |
|---|---|
| Fuel Injector 3 | 1 |
| Fuel Filter Pressure Switch | 2 |
| Intake Air Heater | 3 |
| Intake Air Valve | 4 |
| Generator - Auxiliary | 5 |
| Camshaft Position (CMP) Sensor | 6 |
| Crankshaft Position (CKP) Sensor | 7 |
| Glow Plug Control Module | 8 |
| Glow Plug 1 | 9 |
| Fuel Injector 1 | 10 |
| Glow Plug 3 | 11 |
| Starter Motor | 12 |
| Water in Fuel Sensor | 13 |
Identifying Engine Components (Right Front Side) (Diesel)

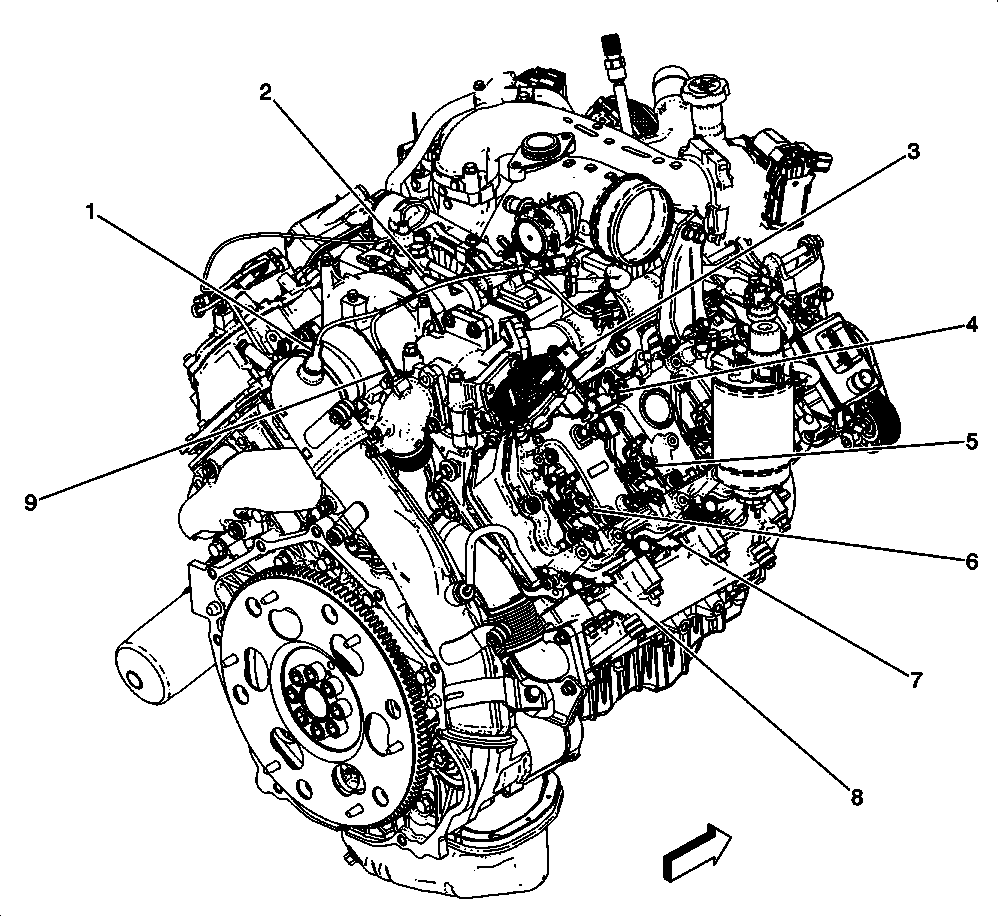

| Component Name | Callout |
|---|---|
| Exhaust Temperature Sensor 1 | 1 |
| Turbocharger Vane Position Control Solenoid Valve | 2 |
| Exhaust Gas Recirculation Cooler Bypass Valve (LML) | 3 |
| Hydrocarbon Injector | 4 |
| Fuel Injector 5 | 5 |
| Fuel Injector 7 | 6 |
| Glow Plug 5 | 7 |
| Glow Plug 7 | 8 |
| Exhaust Gas Recirculation (EGR) Temperature Sensor 1 | 9 |
