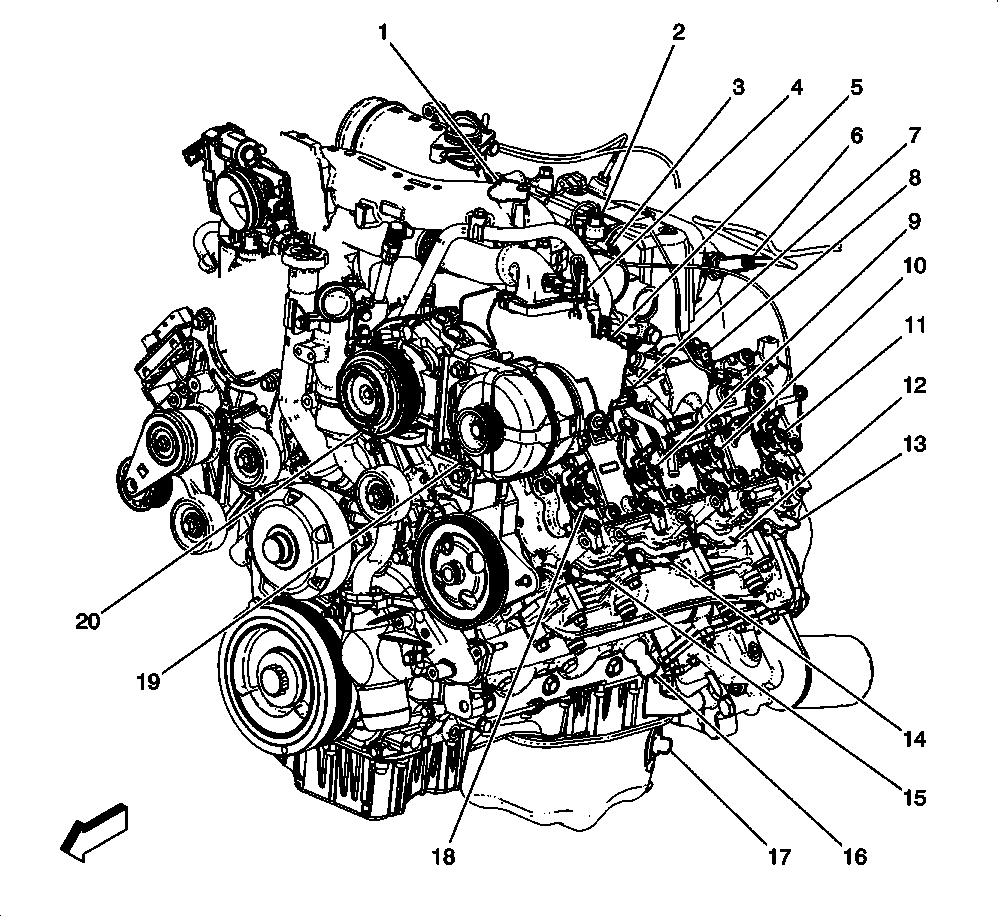

Identifying Left Side Of The Engine Components (Diesel)
Identifying Left Side Of The Engine Components (Diesel)
| Component Name | Callout |
|---|---|
| Manifold Absolute Pressure (MAP) Sensor | 1 |
| Turbocharger Vane Position Sensor | 2 |
| Charge Air Cooler Inlet Temperature Sensor | 3 |
| Exhaust Gas Recirculation (EGR) Temperature Sensor 2 | 4 |
| Exhaust Gas Recirculation (EGR) Valve | 5 |
| Nitrogen Oxides Sensor 1 | 6 |
| Fuel Rail Pressure (FRP) Sensor | 7 |
| Fuel Injector 4 | 8 |
| Fuel Injector 6 | 9 |
| Fuel Injector 8 | 10 |
| Glow Plug 6 | 11 |
| Glow Plug 8 | 12 |
| Glow Plug 4 | 13 |
| Glow Plug 2 | 14 |
| Engine Oil Pressure (EOP) Sensor | 15 |
| Engine Oil Level (EOL) Switch | 16 |
| Fuel Injector 2 | 17 |
| Generator | 18 |
| A/C Compressor Clutch (C67 or CJ2) | 19 |
