Glow Plug Control Module Bracket Replacement

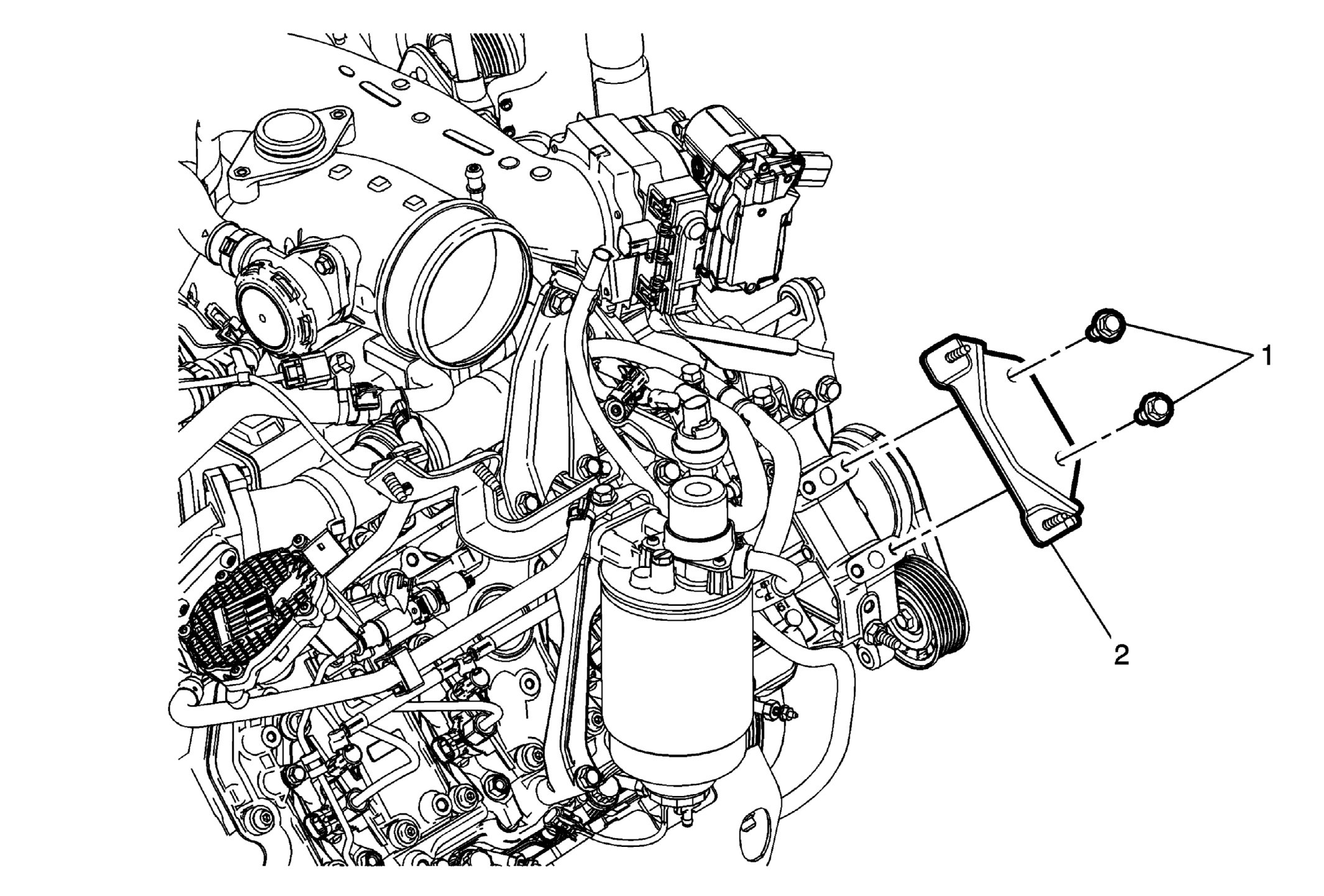

Fig 1: Glow Plug Control Module And Fasteners
GM2406364Courtesy of GENERAL MOTORS CORP.
Glow Plug Control Module Bracket Replacement

Callout Component Name
Preliminary Procedure
Remove the glow plug control module. Refer to Glow Plug Control Module Replacement .
1 Glow Plug Control Module Bracket Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Glow Plug Control Module Bracket
