Installation Procedure

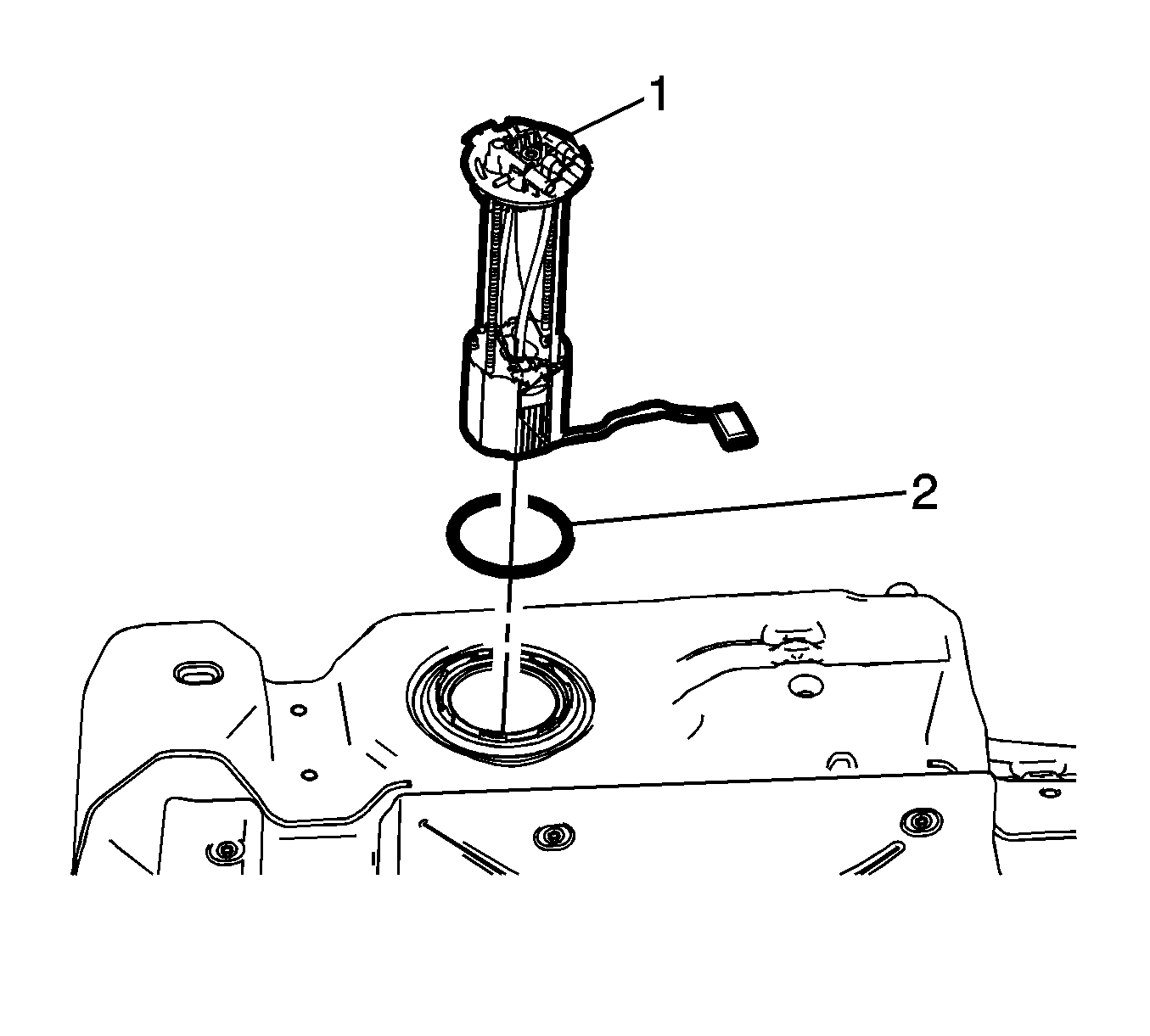

    Fig 1: Fuel Sender Assembly And O-Ring
    GM2407921Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel sender assembly (1) and O-ring (2).

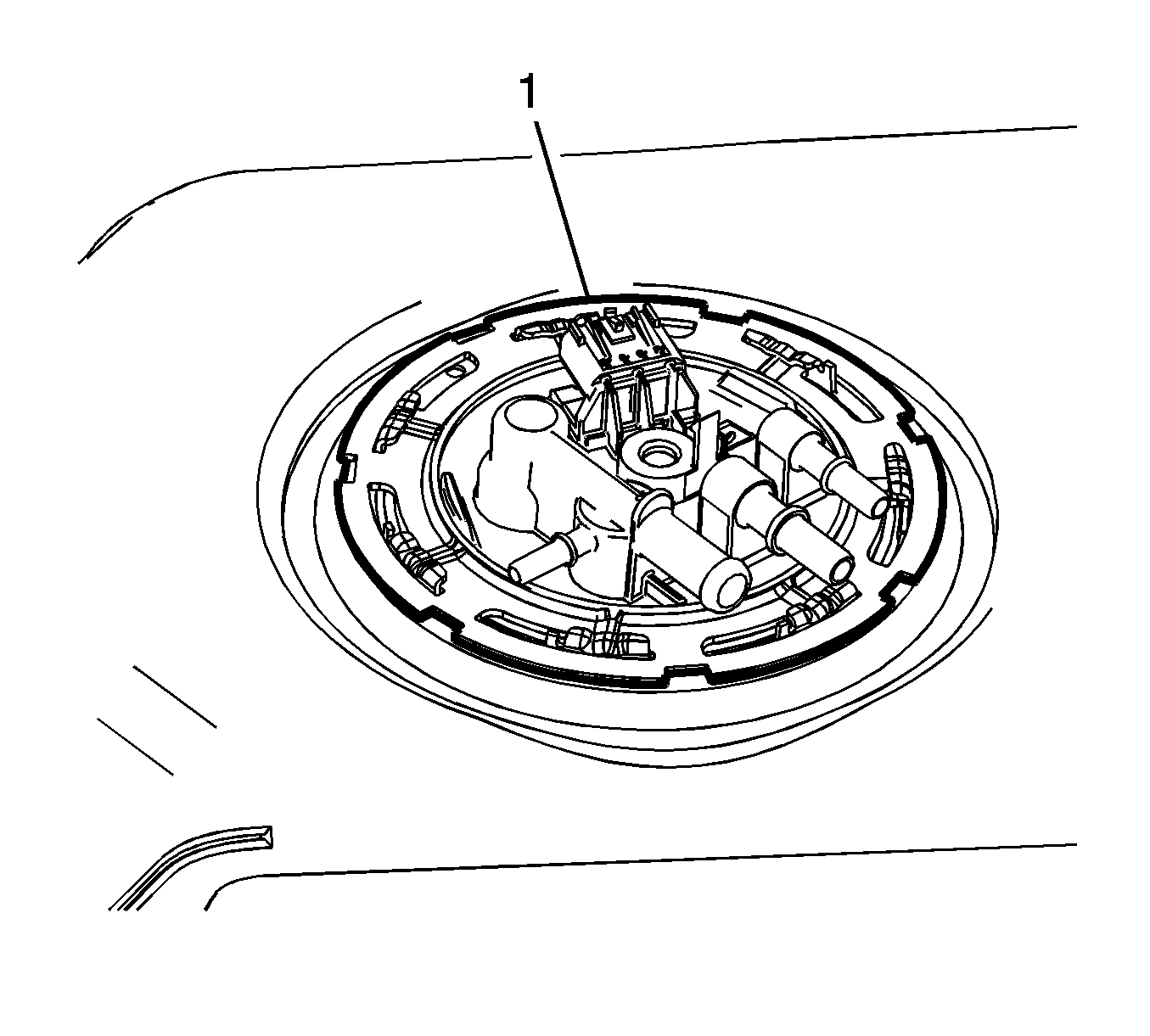

    2. Fig 2: Cam Lock Ring
    GM2407919Courtesy of GENERAL MOTORS CORP.
  2. Using the CH-45722  wrench, install the cam lock ring (1) by turning clockwise.

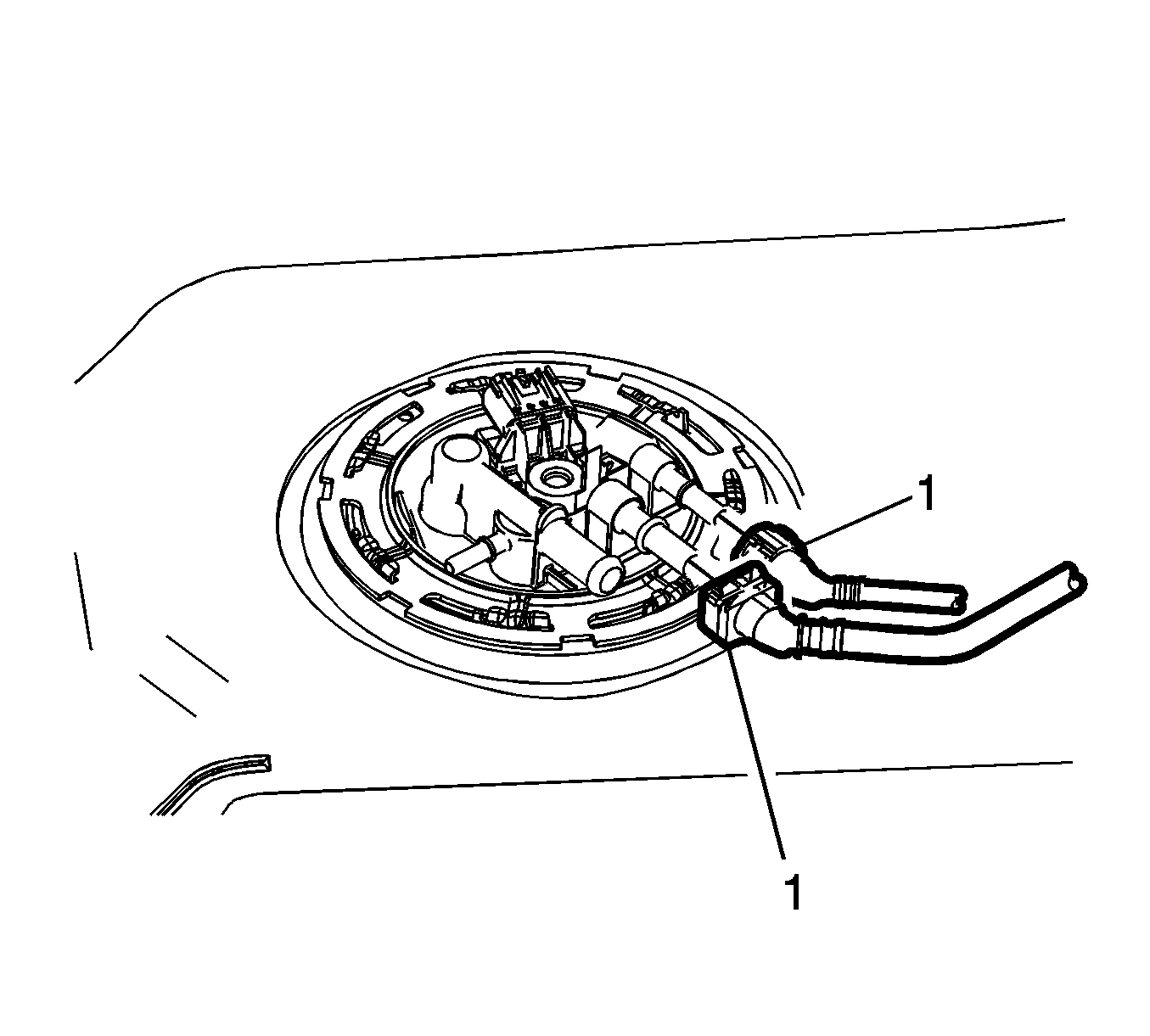

    3. Fig 3: Fuel Feed And Return Pipes
    GM2407918Courtesy of GENERAL MOTORS CORP.
  3. Connect the fuel feed and return pipes (1). Refer to Plastic Collar Quick Connect Fitting Service .
  4. Install the fuel tank. Refer to Fuel Tank Replacement .
