Rear License Lamp Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

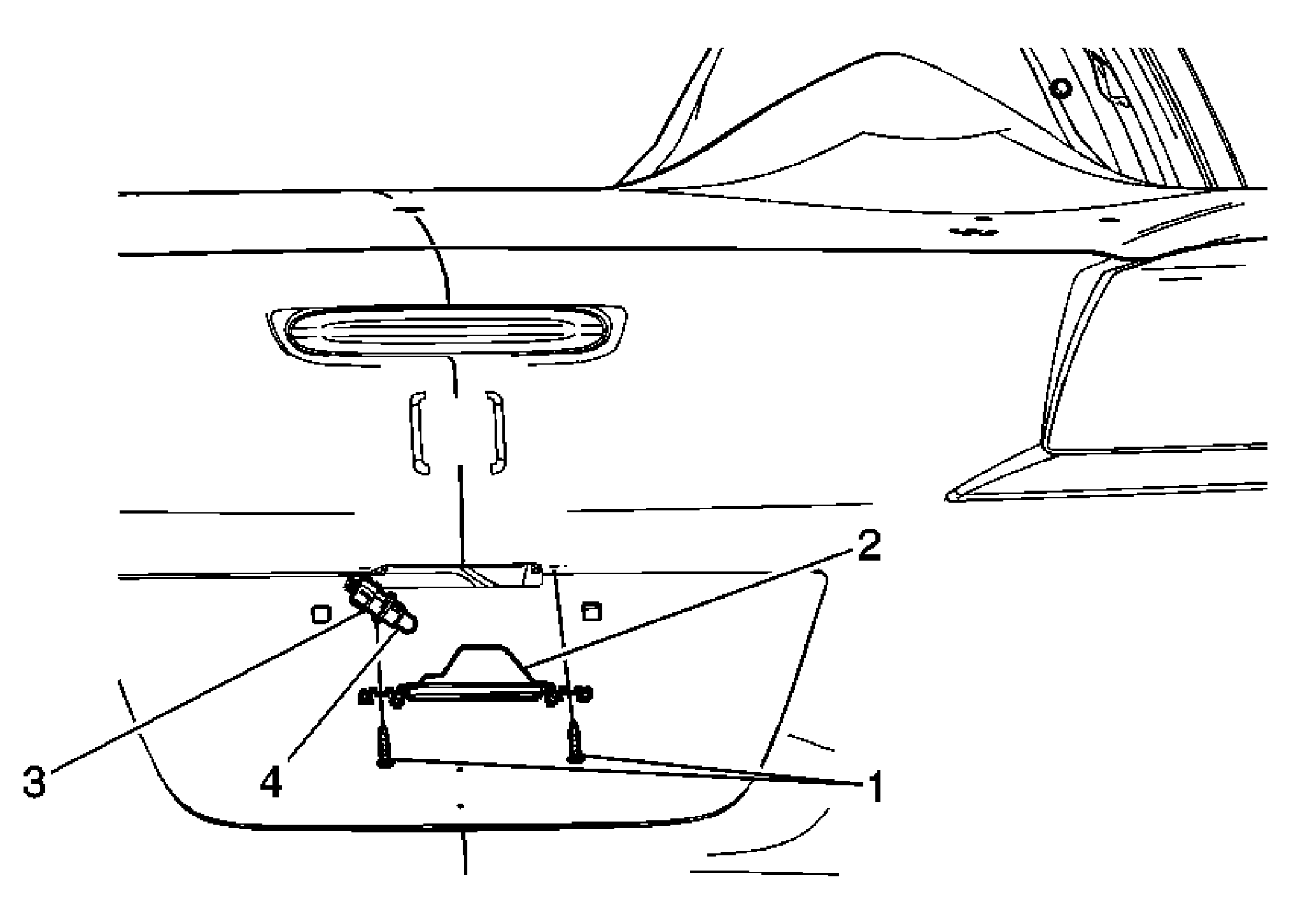

Fig 1: Rear License Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear License Plate Lamp Assembly Screws (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Rear License Plate Lamp Assembly Tip: Push one side of the lamp assembly inside the rear bumper cover hole and pull downward to disconnect the electrical connector.
3	Rear License Plate Electrical Connector Tip: Twist the socket counterclockwise in order to remove from the lamp housing.
4	Rear License Plate Assembly Bulb
