Daytime Running Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

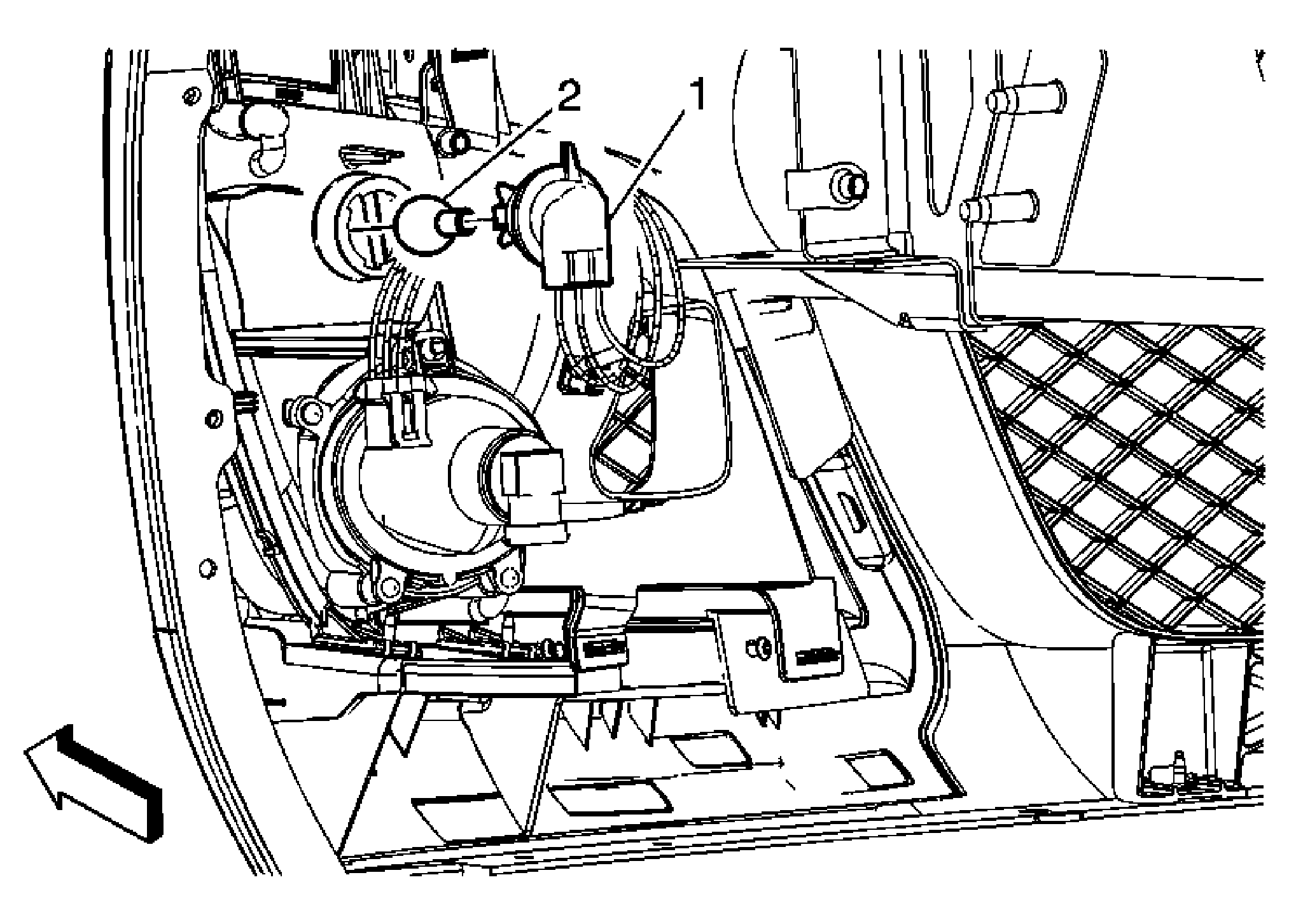

Fig 1: Daytime Running Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Open and support the hood. Reach in between the bumper and front hood opening to disconnect the daytime running, park and turn signal lamp socket from the lamp housing.
1	Daytime Running, Park and Turn Signal Lamp Socket Tip: Squeeze the locking tab and rotate the bulb socket counter-clockwise from the lamp housing in order to remove.
2	Daytime Running, Park and Turn Signal Lamp Bulb

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Open and support the hood.
Reach in between the bumper and front hood opening to disconnect the daytime running, park and turn signal lamp socket from the lamp housing.

Daytime Running, Park and Turn Signal Lamp Socket
Tip: Squeeze the locking tab and rotate the bulb socket counter-clockwise from the lamp housing in order to remove.

Daytime Running, Park and Turn Signal Lamp Bulb
