Outside Rearview Mirror Glass Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

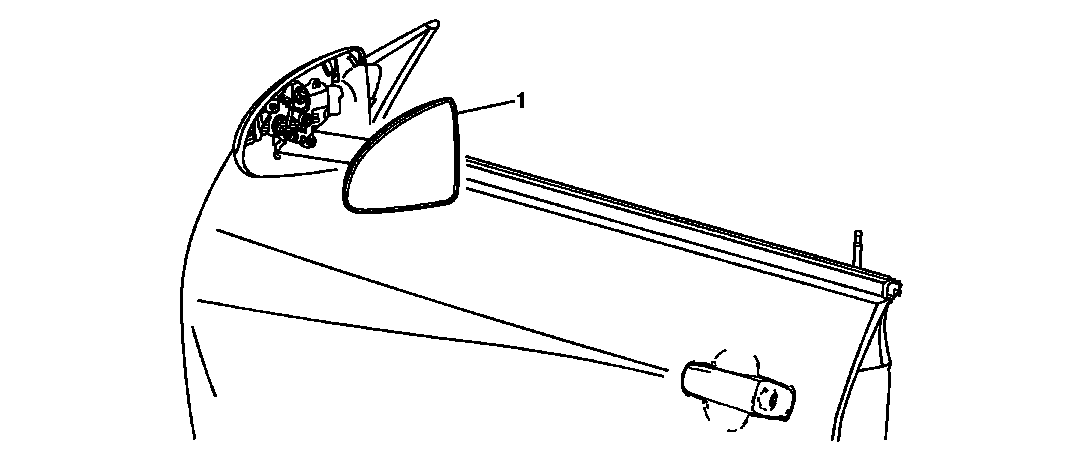

Fig 1: View Of Outside Rearview Mirror Glass

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning .
1	Outside Rearview Mirror Face Procedure Release the mirror face backing from the mirror housing by pulling outward. Disconnect the power wire harness electrical connector.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Outside Rearview Mirror Face

Procedure

Release the mirror face backing from the mirror housing by pulling outward.
Disconnect the power wire harness electrical connector.
