Lower Front of the Engine Components

Lower Front of the Engine Components

Component Name Callout
Camshaft Position (CMP) Actuator Solenoid Valve 1
Knock Sensor (KS) 2 2
Engine Oil Pressure (EOP) Sensor 3
Starter Motor 4
A/C Compressor 5

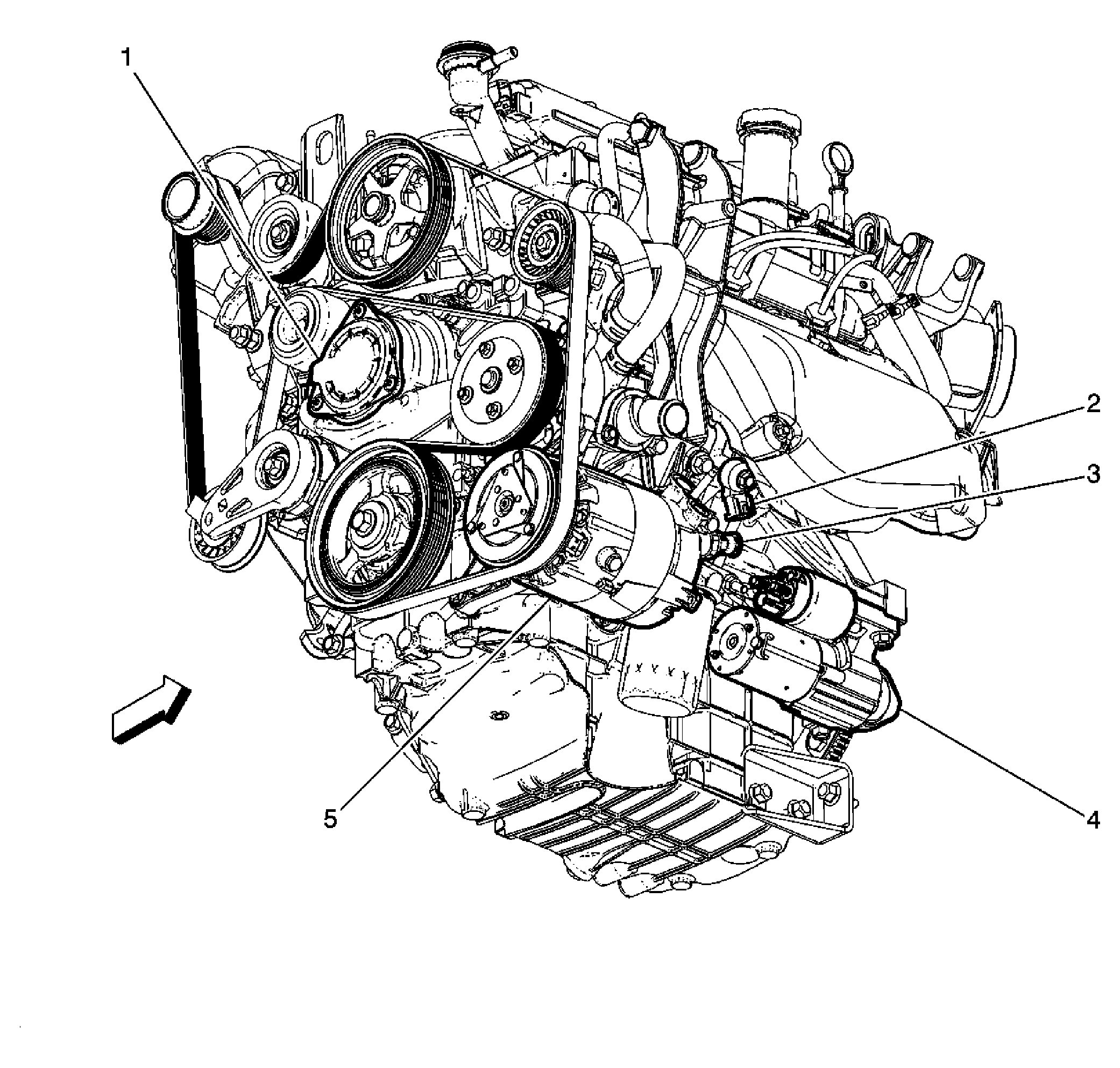

Fig 1: Lower Front of the Engine Components
GM2330268Courtesy of GENERAL MOTORS CORP.
