Front Floor Console Armrest Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

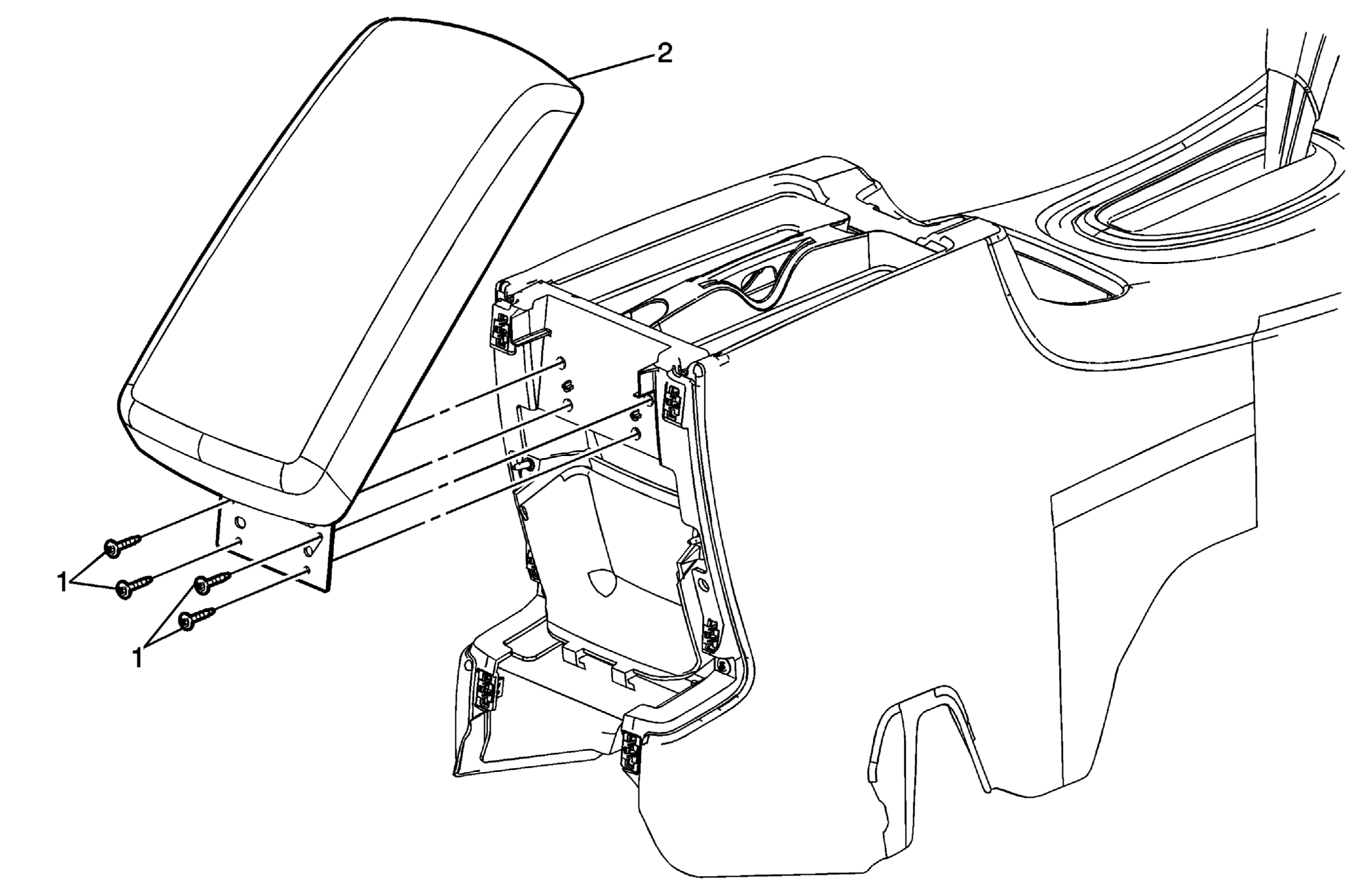

Fig 1: Identifying Front Floor Console Armrest Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the Front Floor Console Rear Trim Plate. Refer to Console Rear Trim Plate Replacement (Impala) .
1	Screw, Front Floor Console Armrest Hinge (Qty 4) Tighten: 2 N.m (18 lb in)
2	Armrest Assembly, Front Floor Console
