Removal Procedure

Remove the fuel tank. Refer to Fuel Tank Replacement (NC7) or Fuel Tank Replacement (NU6) .

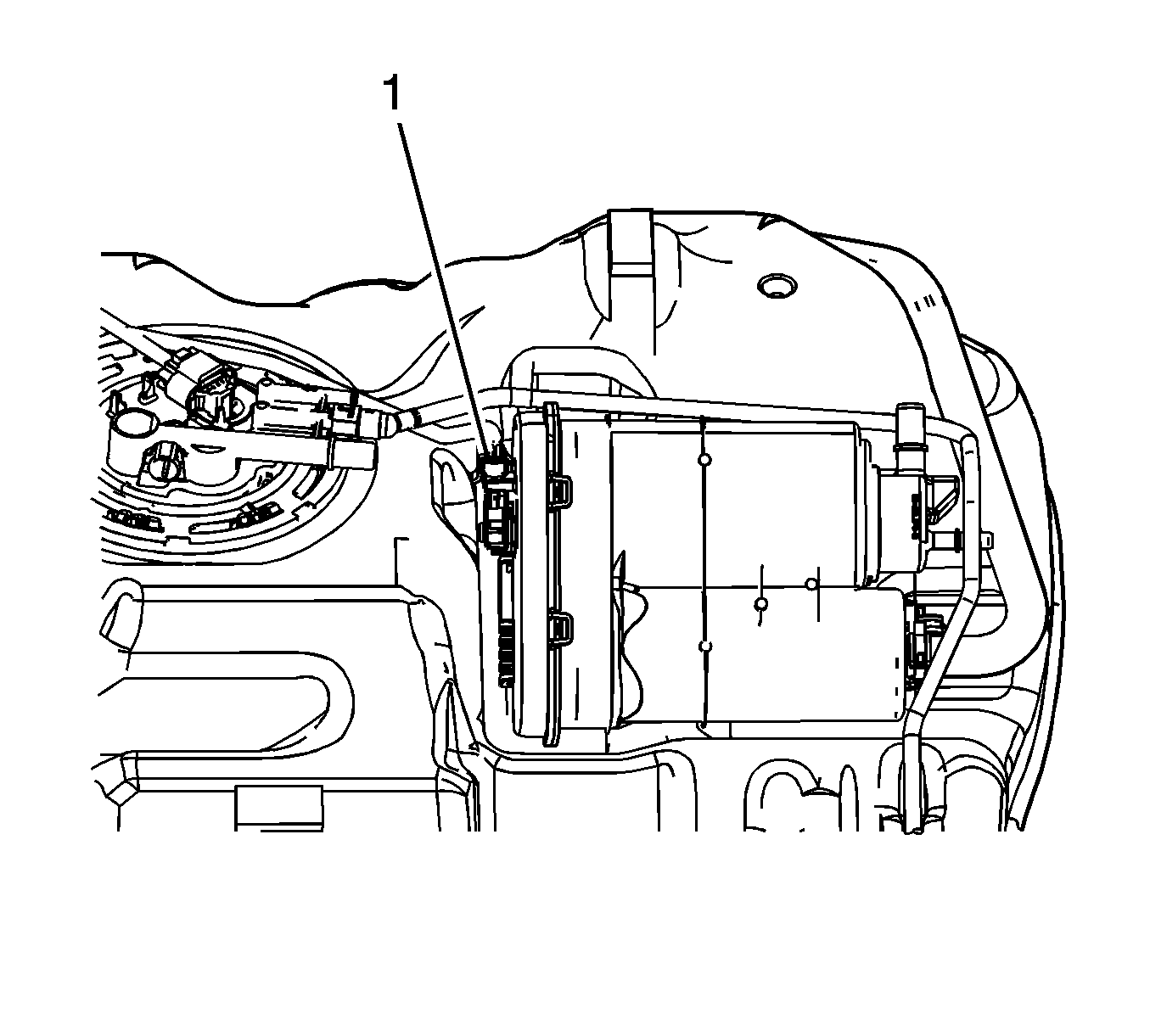

Fig 1: Identifying Fuel Tank Wiring Harness Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Disconnect the fuel tank wiring harness electrical connector from the fuel pressure sensor (1).

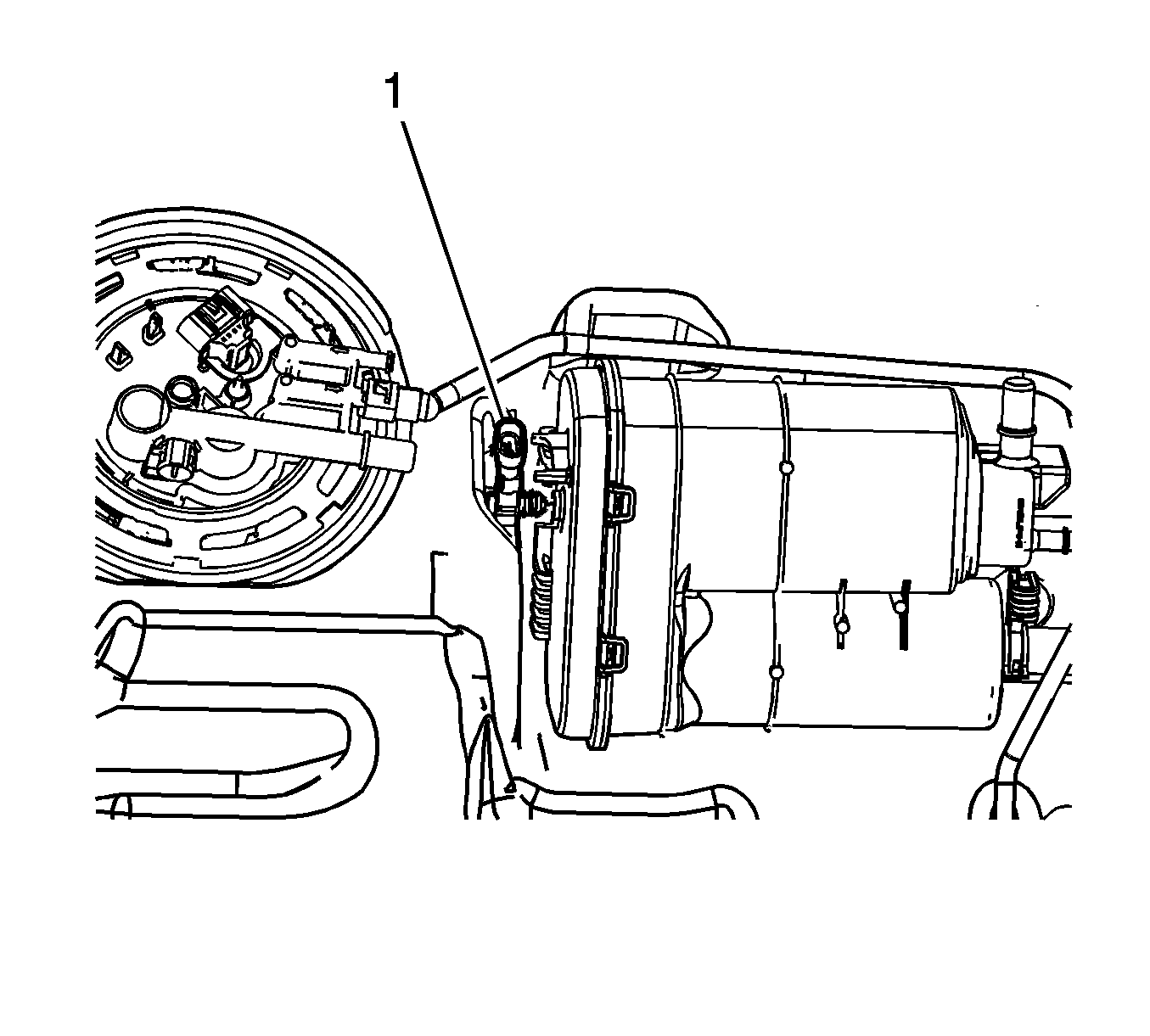

Fig 2: Identifying Fuel Pressure Sensor & EVAP Canister

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: It is not necessary to remove the evaporative emission (EVAP) canister in order to remove the fuel pressure sensor.

Using a small flat bladed tool, gently pry the fuel pressure sensor (1) out of the EVAP canister in order to remove the sensor.
