Installation Procedure

    Fig 1: Identifying MAP Sensor
    GM1581050Courtesy of GENERAL MOTORS COMPANY
  1. Install the NEW MAP sensor seal, if required.
  2. Install the MAP sensor.
  3. Connect the MAP sensor electrical connector.

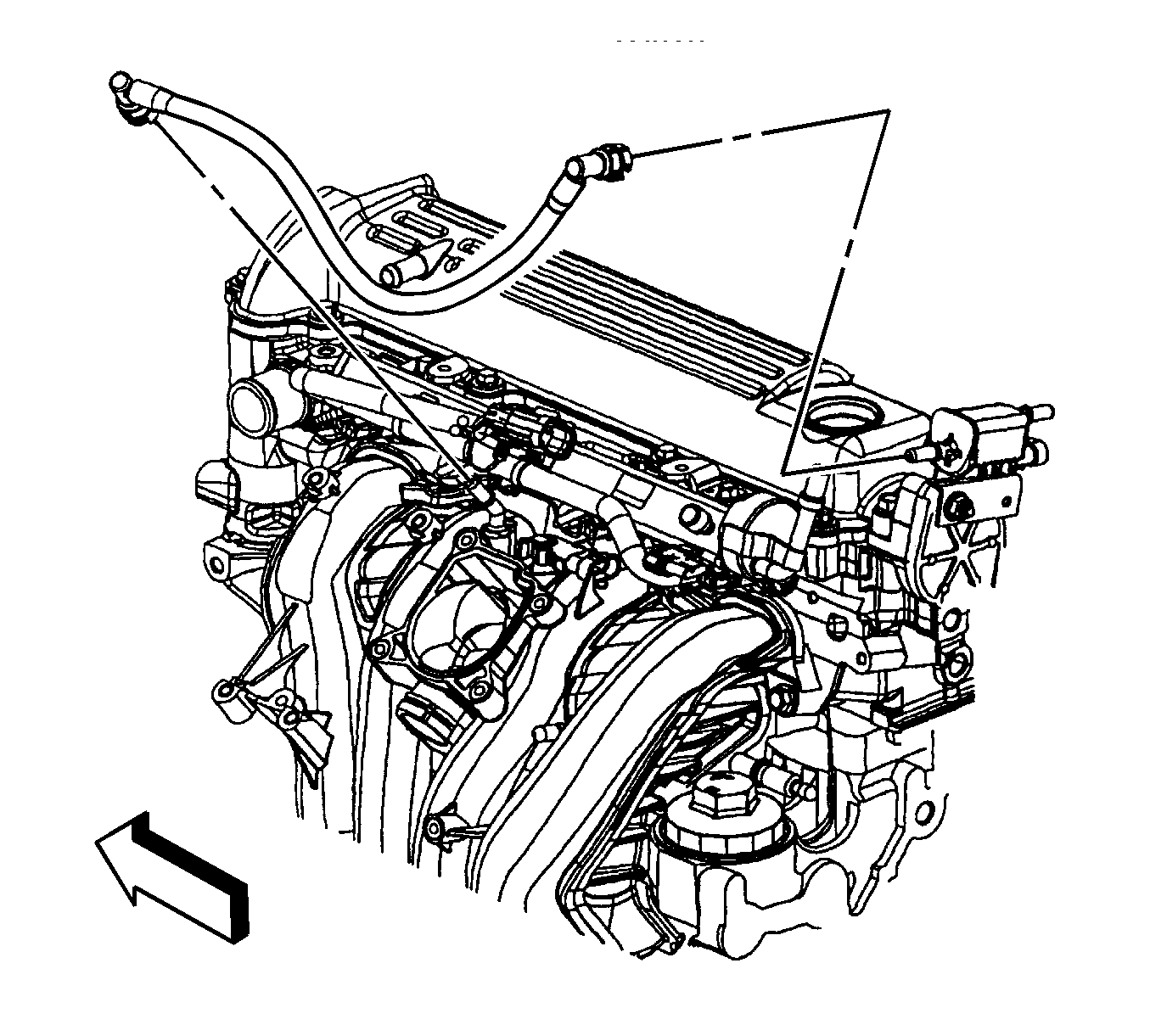

    4. Fig 2: EVAP Canister Purge Valve Tube
    GM1623766Courtesy of GENERAL MOTORS COMPANY
  4. Position the wiring harness and connect the harness clips to the fuel rail.
  5. Connect the EVAP purge tube to the intake manifold. Refer to Plastic Collar Quick Connect Fitting Service .
  6. Install the throttle body. Refer to Throttle Body Assembly Replacement .
