Steering Wheel Opening Cover Replacement
Steering Wheel Opening Cover Replacement

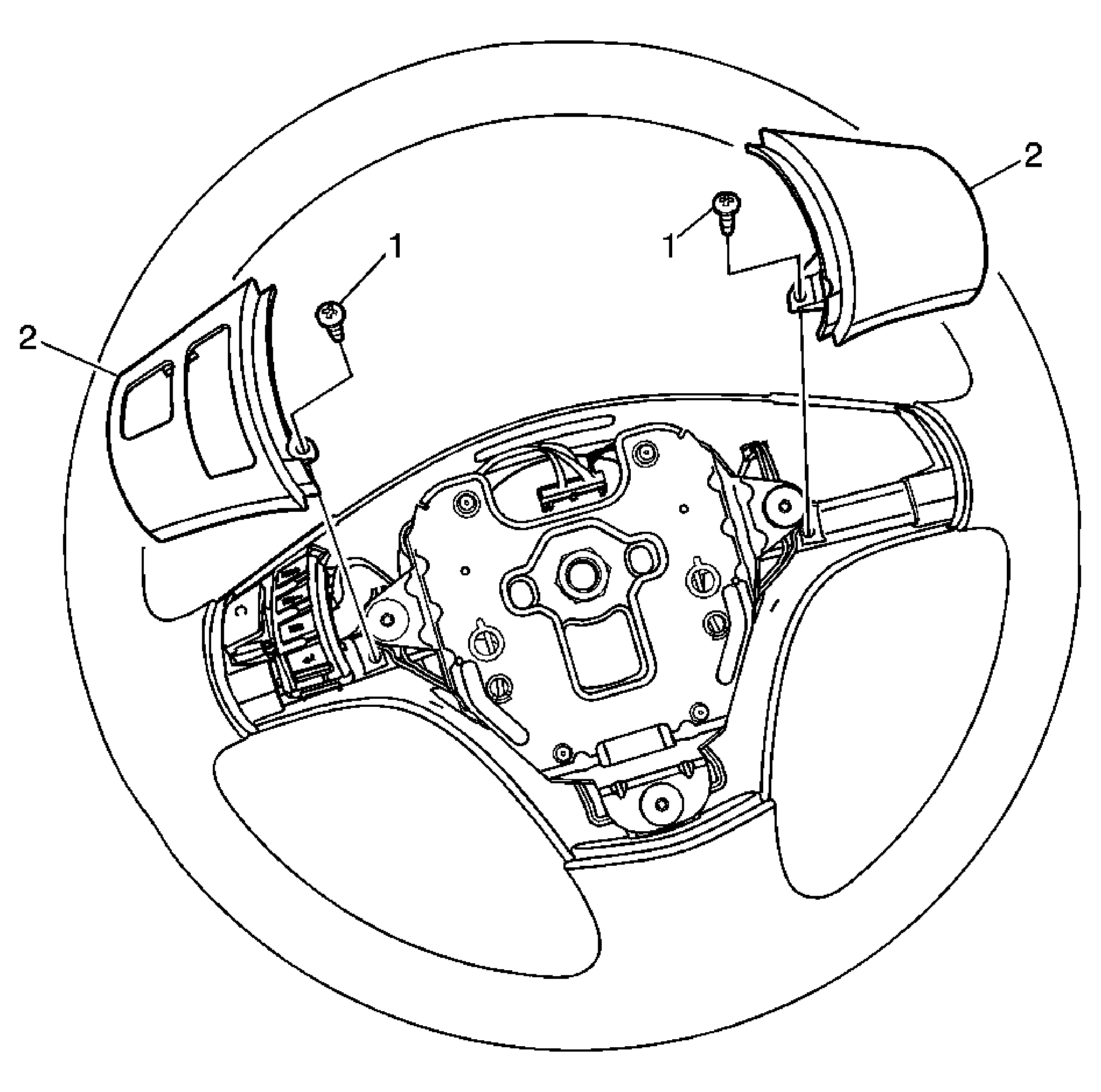

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement . |
|
| 1 | Steering Wheel Trim Cover Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Steering Wheel Trim Cover (Qty: 2) |
