Rear Seat Belt Intermediate Guide Replacement

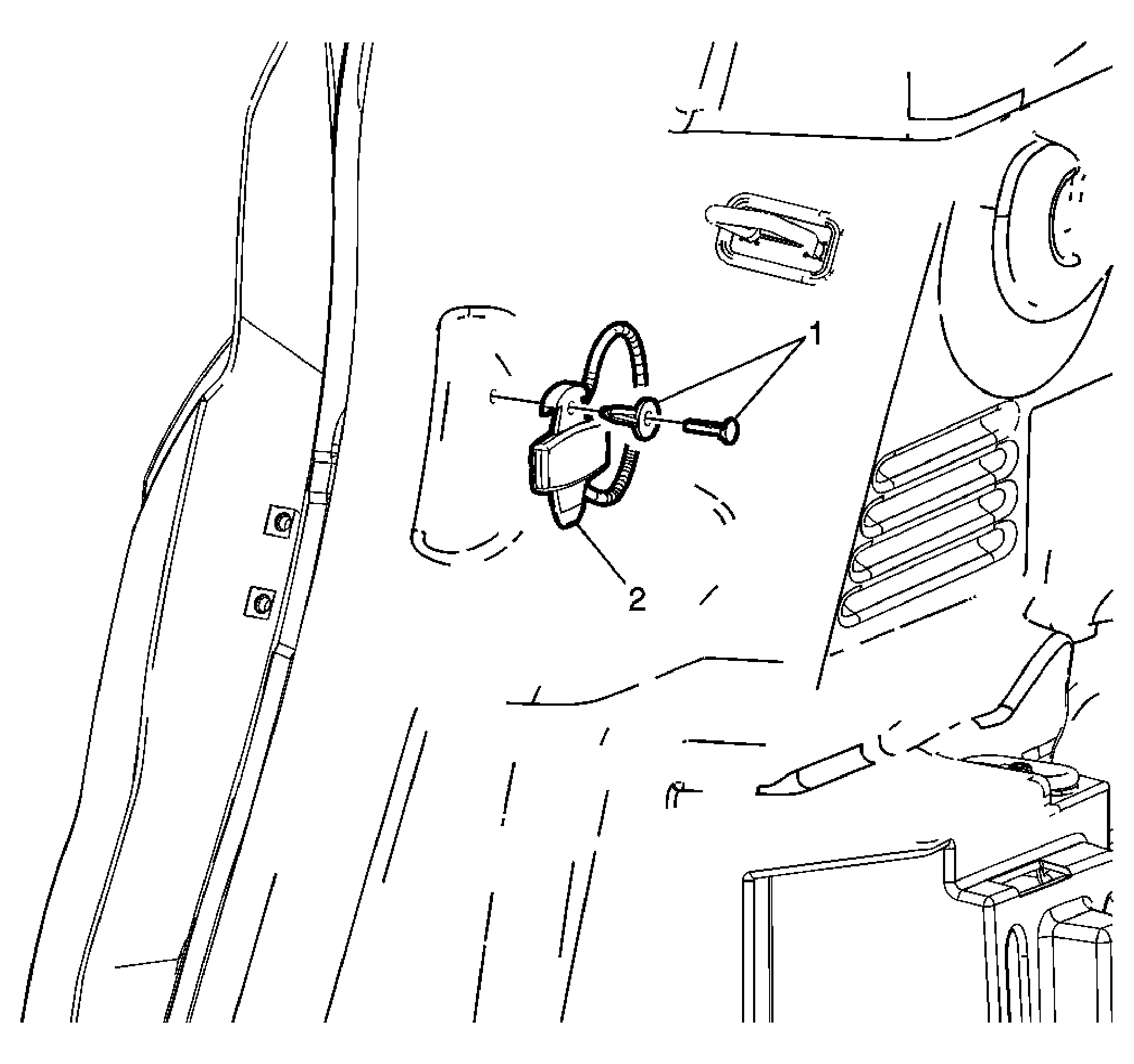

Fig 1: Rear Seat Belt Intermediate Guide

Courtesy of GENERAL MOTORS COMPANY

Rear Seat Belt Intermediate Guide Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Rear Seat Shoulder Belt Guide Strap Retainer TIP:  Fold the seat back forward to allow easier access to the fastener.
2	Rear Seat Shoulder Belt Guide Strap
