Removal Procedure

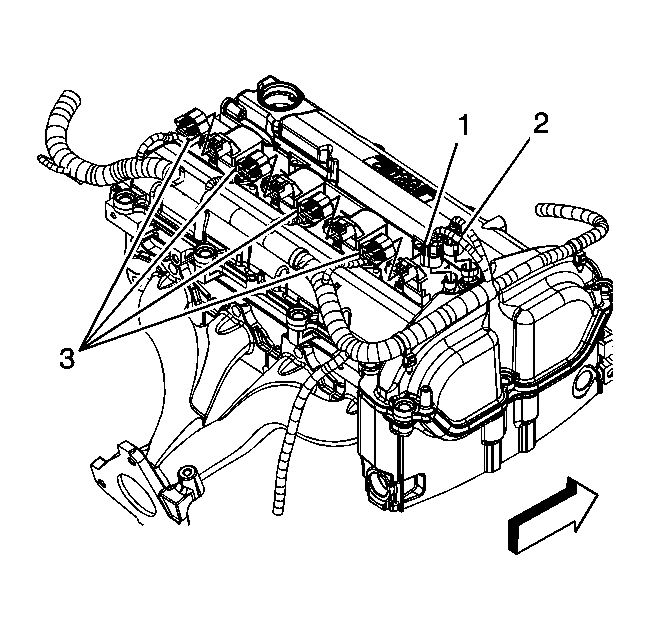

    Fig 1: Ignition Coil Electrical Connectors
    GM1628020Courtesy of GENERAL MOTORS COMPANY
  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  2. Disconnect the ignition coil electrical connector(s) (3).
    3. Fig 2: View Of Ignition Coils
    GM1578474Courtesy of GENERAL MOTORS COMPANY
  3. Remove the ignition coil bolt(s).
  4. Remove the ignition coil(s).
