Installation Procedure

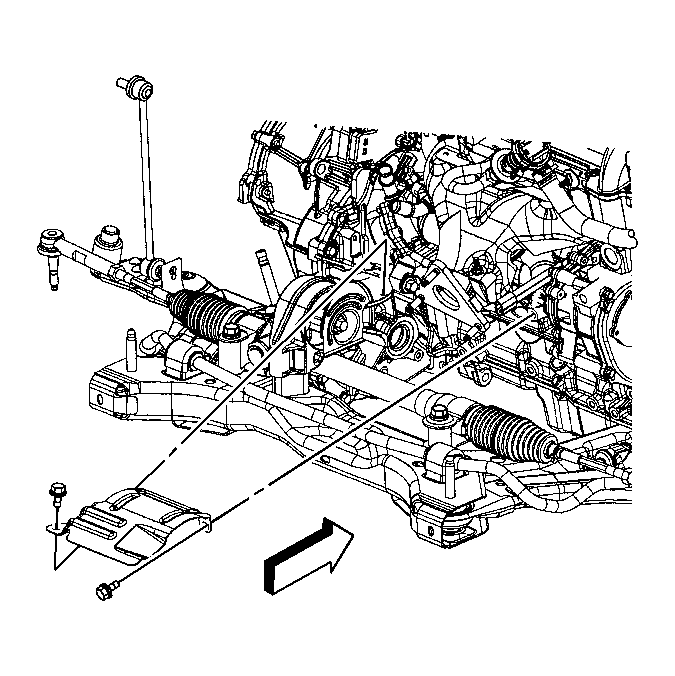

    Fig 1: Wheel Drive Shaft Heat Shield
    GM1631770Courtesy of GENERAL MOTORS COMPANY
  1. Position the wheel drive shaft heat shield onto the engine.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel drive shaft heat shield-to-engine block bolt.

    Tighten

    Tighten the bolt to 30 N.m (22 lb ft).

  3. Install the wheel drive shaft heat shield-to-transaxle mount bracket bolt.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

  4. Lower the vehicle.
