Front Seat Belt Buckle Replacement

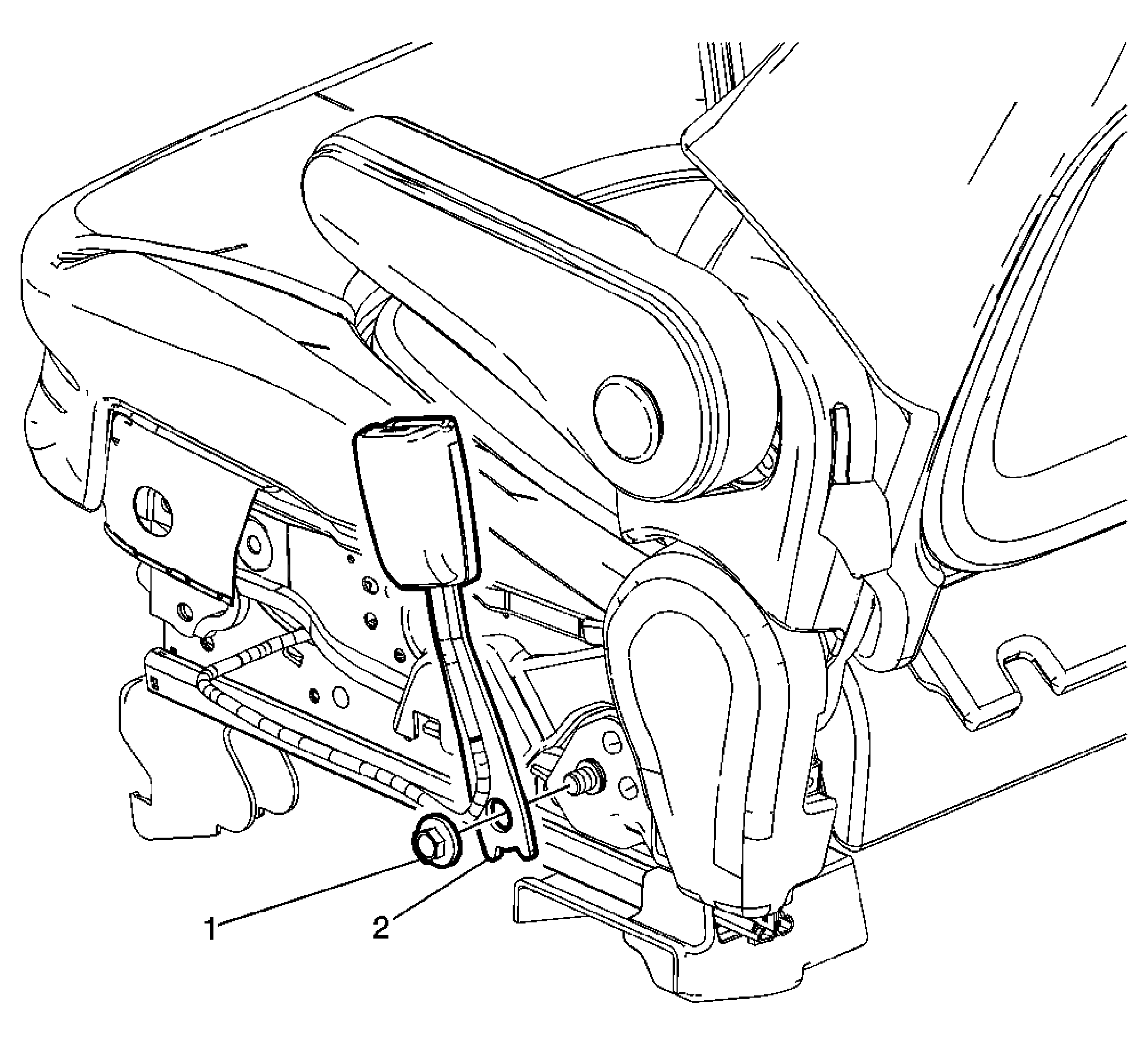

Fig 1: Front Seat Belt Buckle
GM1644059Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Buckle Replacement

Callout Component Name
Preliminary Procedure
Remove the front seat. Refer to Front Seat Replacement - Bucket .
1 Seat Belt Buckle Nut
CAUTION:

Refer to Fastener Caution .


TIP:  Disconnect the electrical connector.
Tighten
40 N.m (30 lb ft)
2 Seat Buckle Assembly Belt
