Liftgate Inside Pull Handle Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

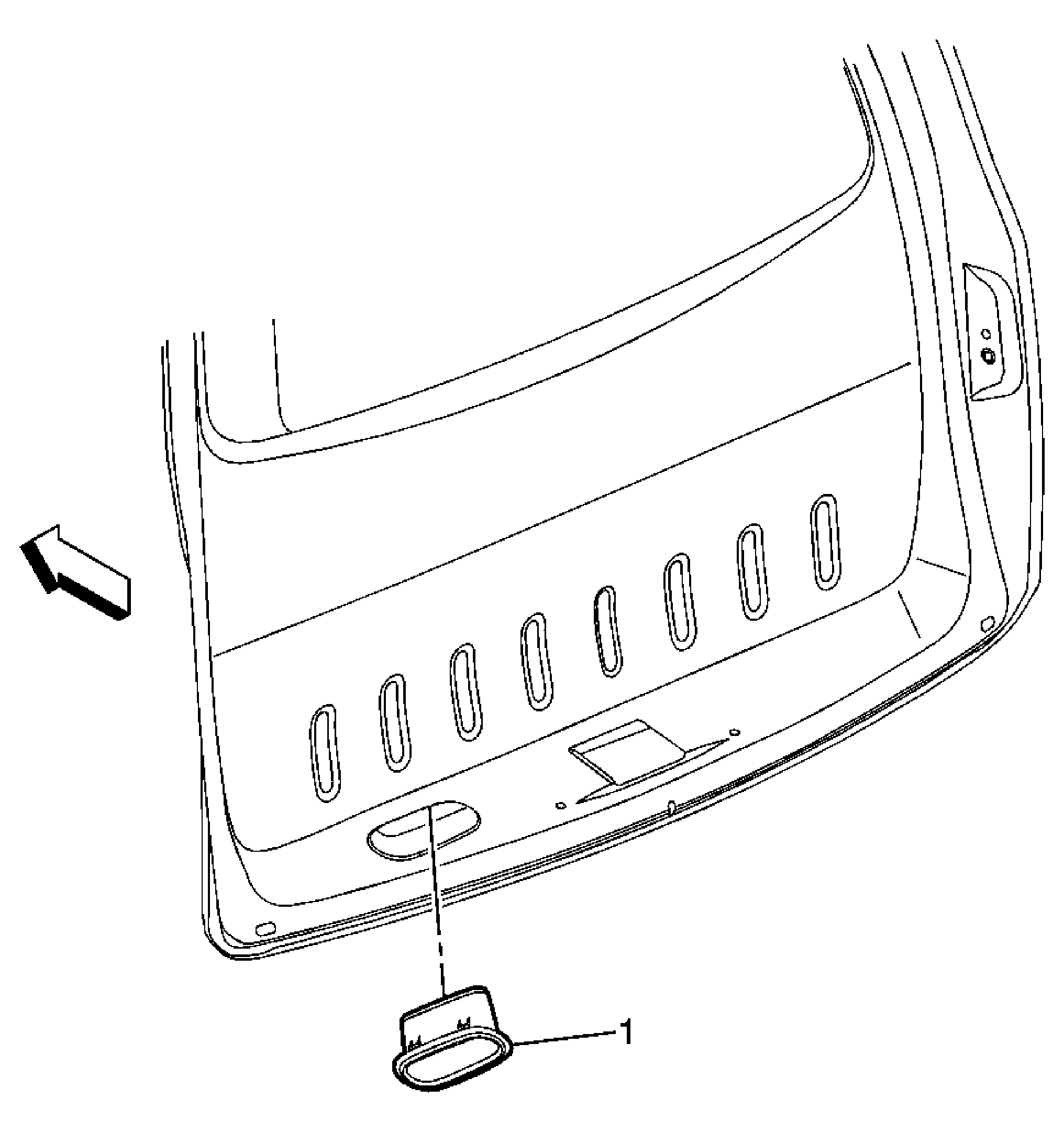

Fig 1: Liftgate Inside Pull Handle
GM1614234Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Liftgate Inside Pull Handle
Tip:  Use nylon trim tool on the rear side of the handle, pivot handle, rotate to release.
