Radiator Support Bracket Replacement
WARNING: This page is about a different car, the 2009 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

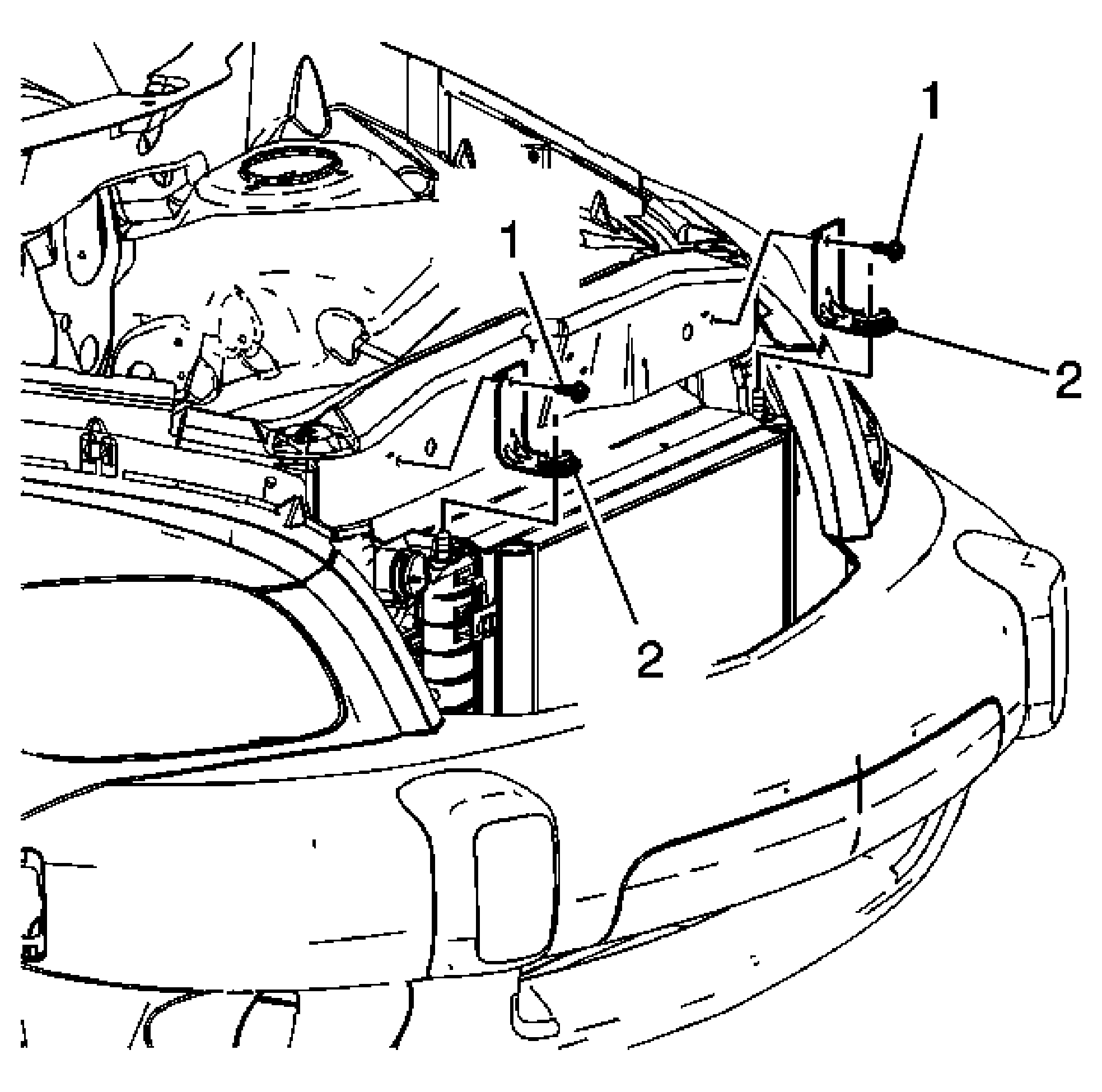

| Callout | Component Name |
|---|---|
| 1 | Radiator Bracket Assembly Bolt - Upper
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Radiator Bracket - Upper |
