Instrument Panel Compartment Replacement

WARNING: This page is about a different car, the 2008 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

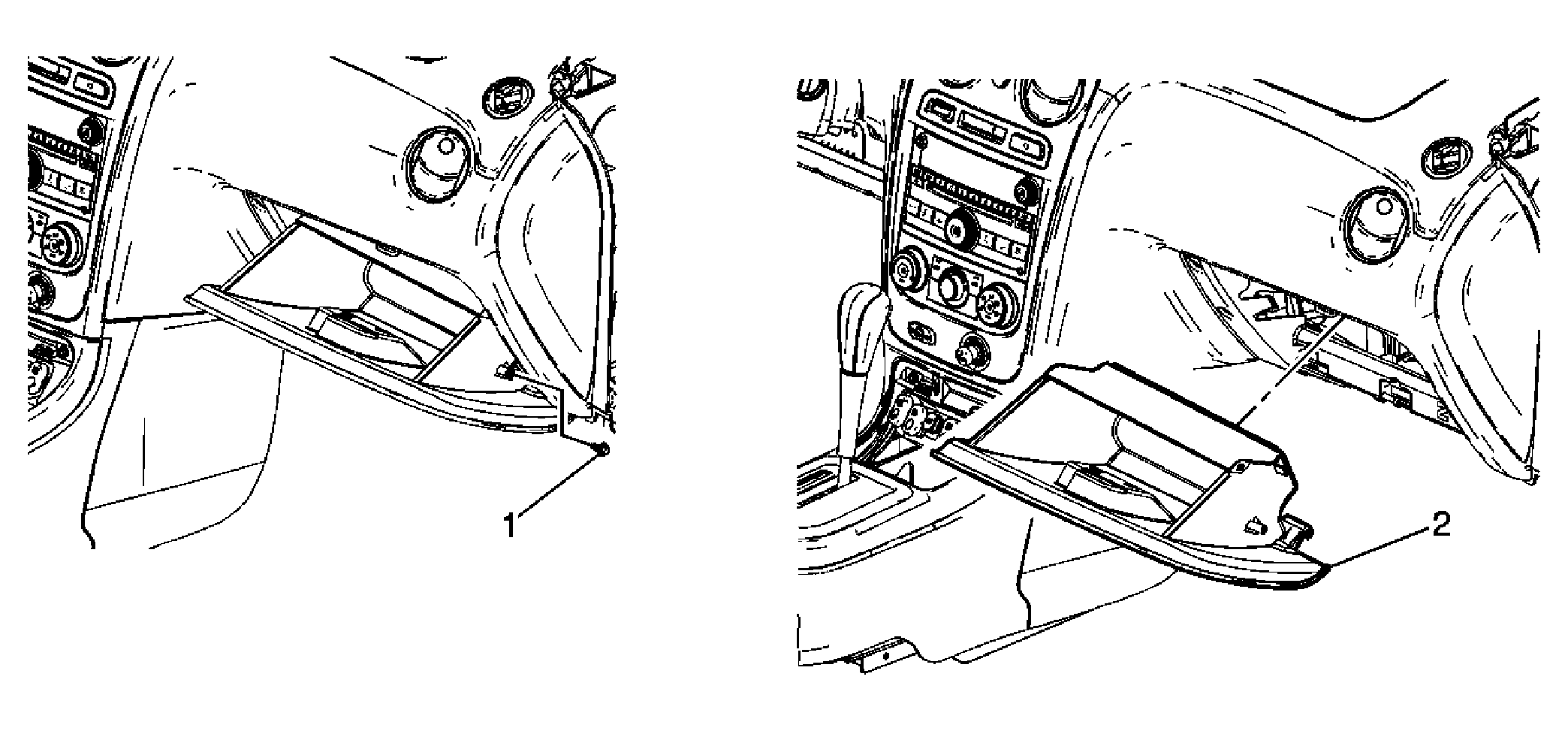

Fig 1: Instrument Panel Compartment Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Compartment Dampener Screws (Qty: 1) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Compartment Assembly Tip: Squeeze the sides of the compartment and pull the compartment out of the instrument panel opening past the stops. Pull outward on the compartment assembly releasing the 3 hinge points from the instrument panel assembly.
