Console Shift Lever Bezel Replacement
WARNING: This page is about a different car, the 2008 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

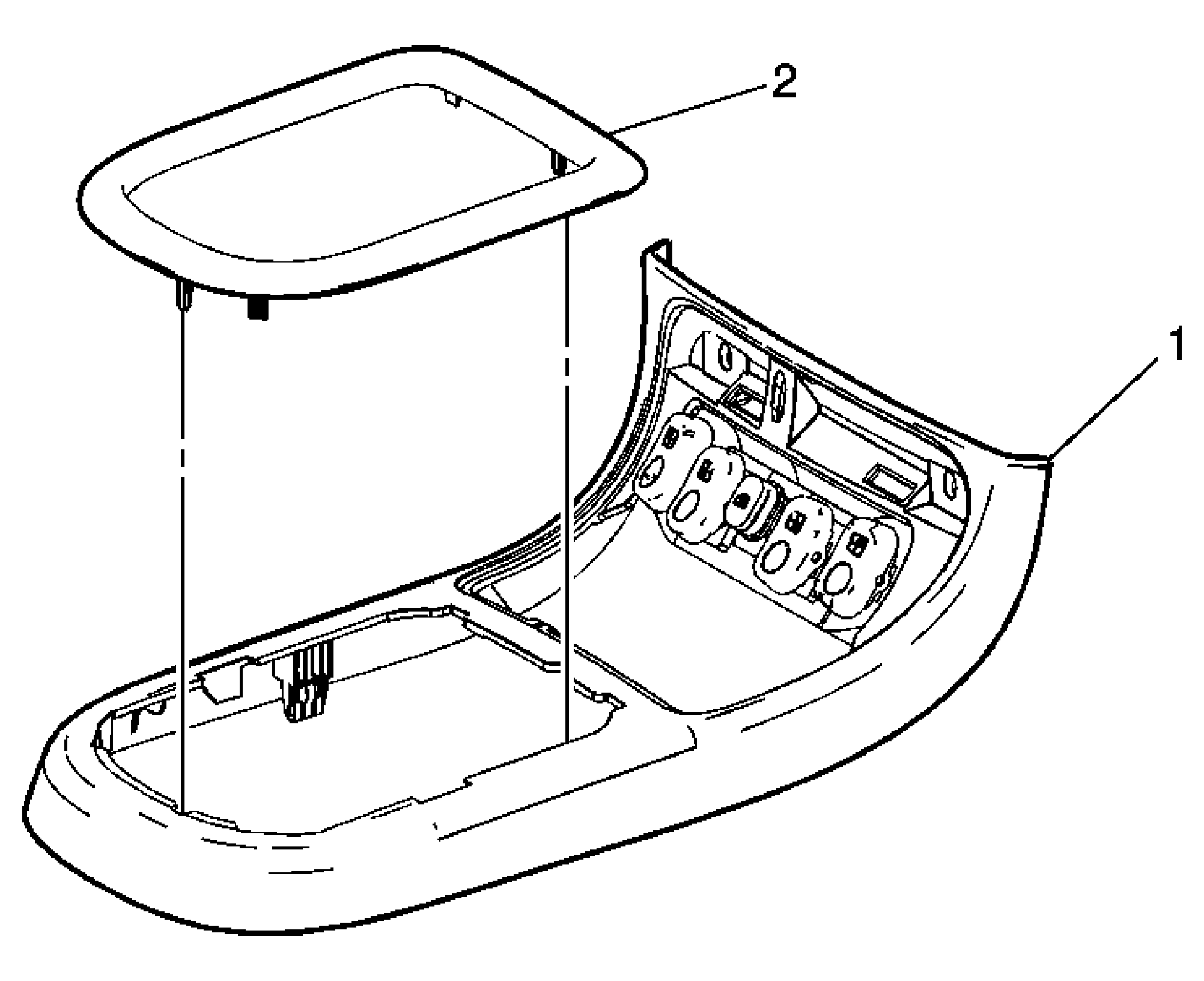

| Callout |
Component Name |
| 1 |
Front Floor Console Assembly
Refer to Front Floor Console Replacement . |
| 2 |
Console Shift Bezel
Tip:
- The Console shift bezel is replaceable on cars equipped with automatic transmissions. Cars equipped with manual transmissions the bezel is not serviceable.
- The shifter bezel and front floor console plate must be removed as one assembly.
- The console shift bezel retainers must be released from the underside of the console upper trim plate.
|
