Power, Ground, Serial Data, and Subsystem References (1 of 4)

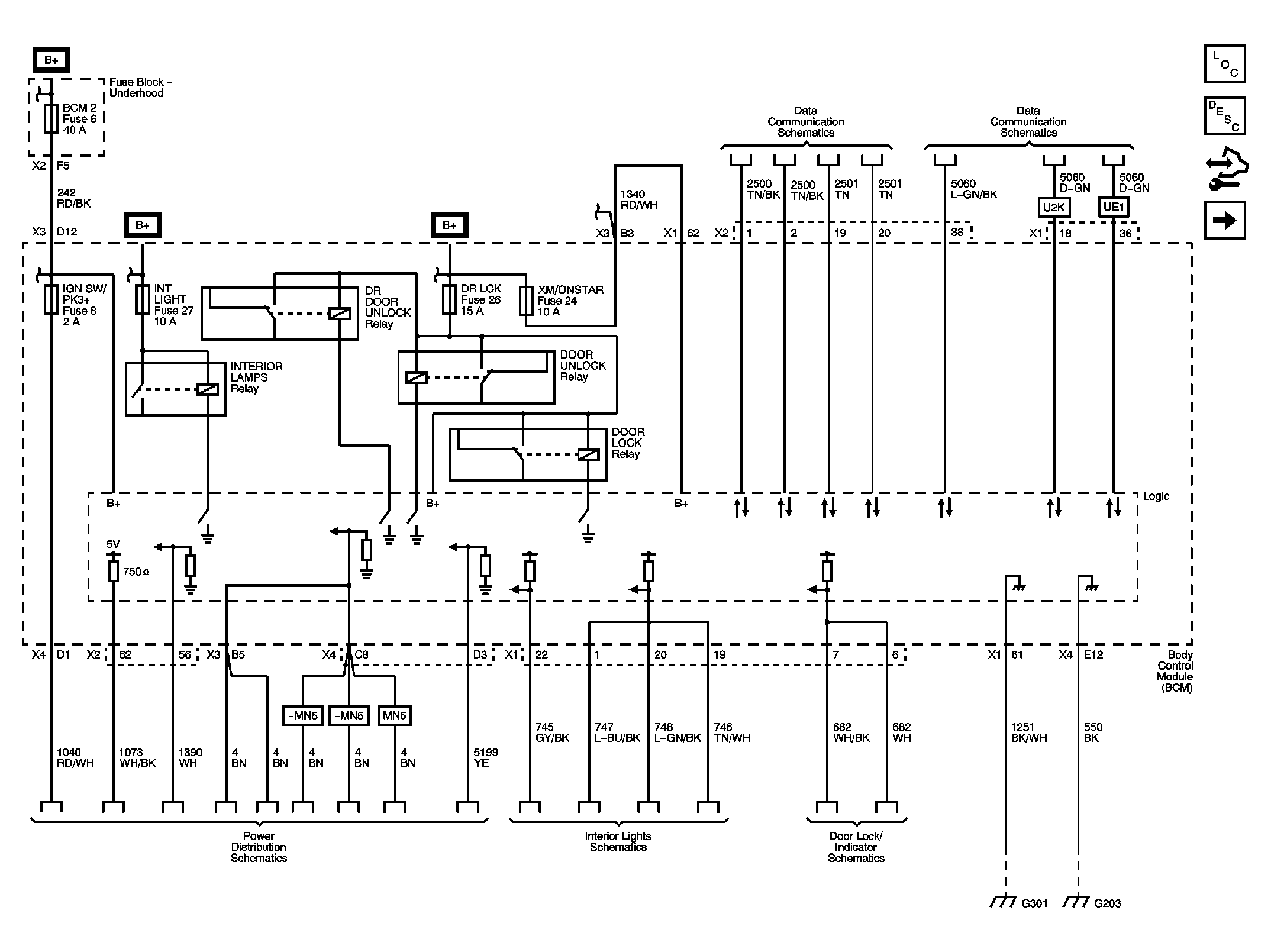

Fig 1: Power, Ground, Serial Data, and Subsystem References Wiring Schematic (1 of 4)

GM2376998

Courtesy of GENERAL MOTORS COMPANY
