Engine Splash Shield Replacement

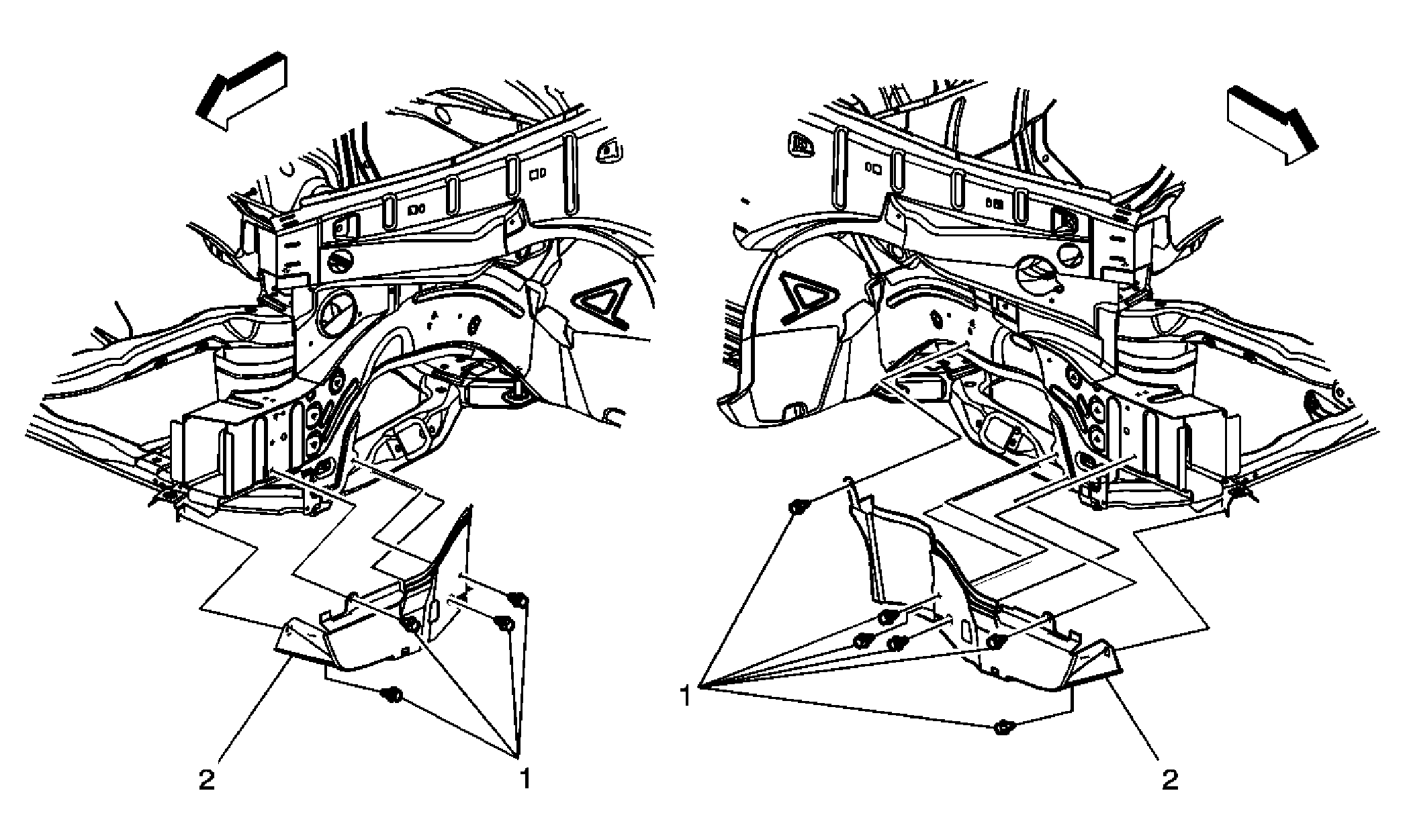

Fig 1: Engine Splash Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lift and support vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Engine Splash Shield Retainers (Qty: 5 right side, Qty: 4 left side) TIP: Use a flat-bladed tool to remove the push-in retainers.
2	Engine Splash Shield

Callout

Component Name

Preliminary Procedure

Lift and support vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Engine Splash Shield Retainers (Qty: 5 right side, Qty: 4 left side)
TIP: Use a flat-bladed tool to remove the push-in retainers.

Engine Splash Shield
