Cruise Control System Wiring Schematics

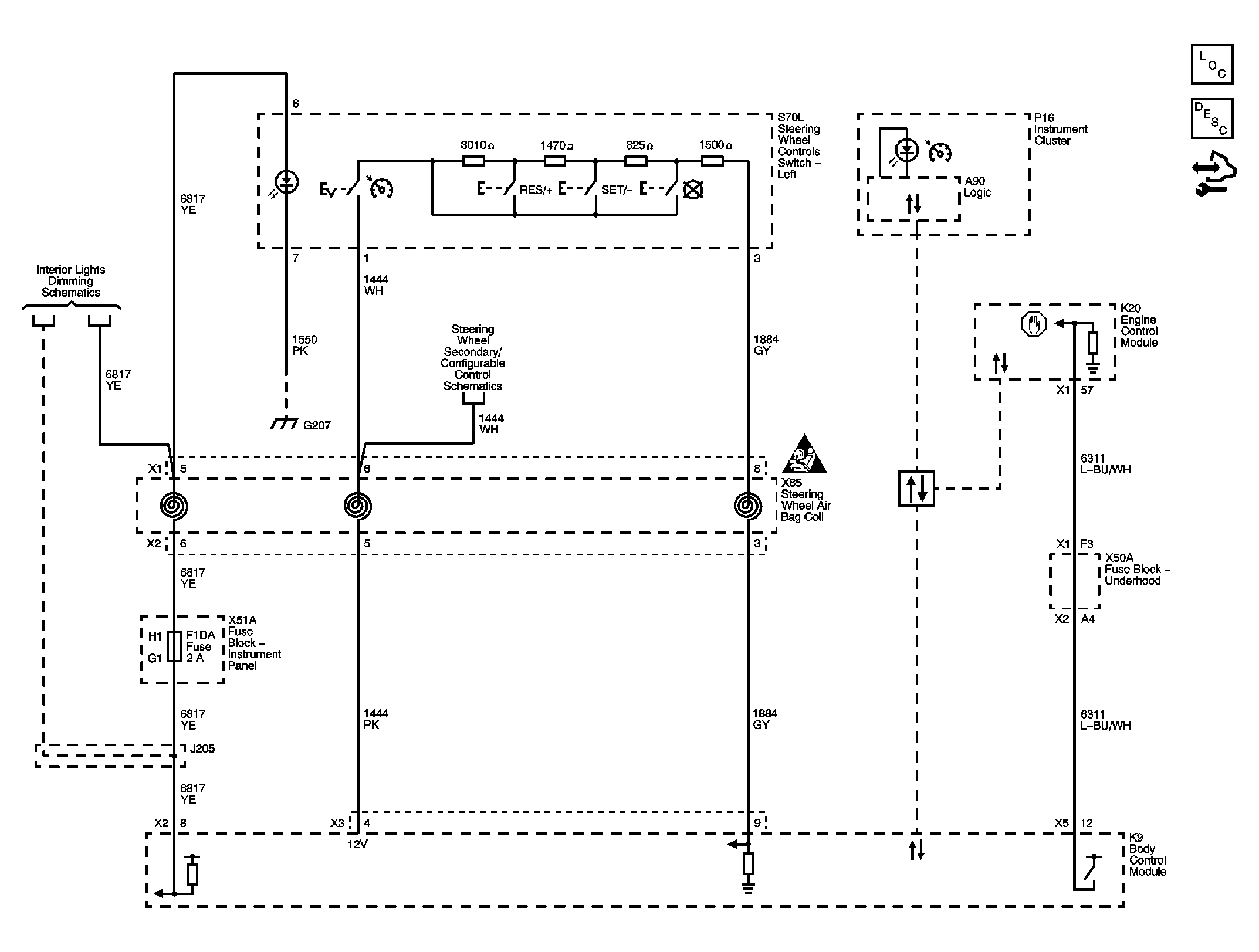

Fig 1: Cruise Control System Wiring Schematic

GM2409461

Courtesy of GENERAL MOTORS CORP.
