Air Cleaner Outlet Resonator Replacement

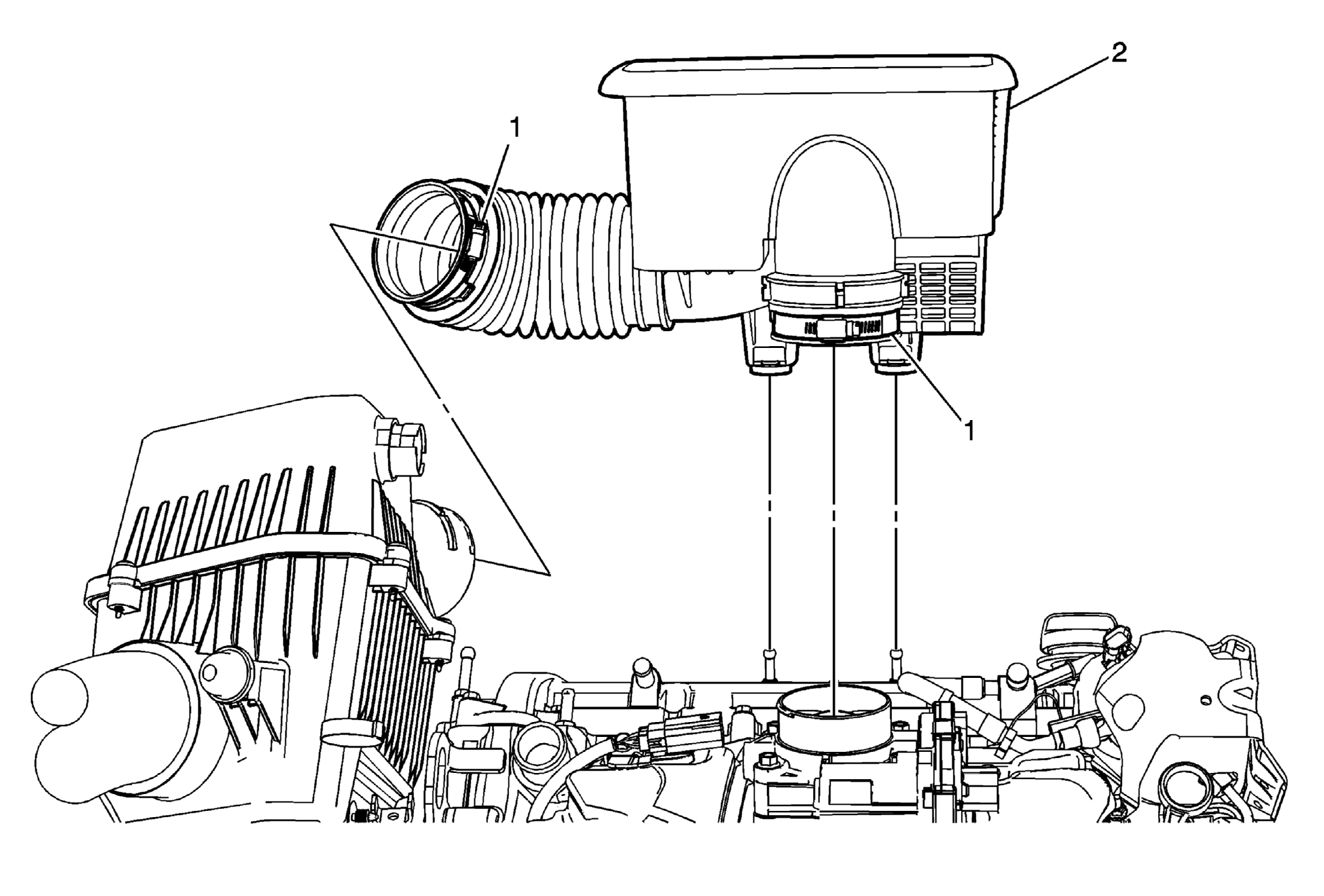

Fig 1: Air Cleaner Outlet Resonator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Disconnect the PCV valve from the resonator. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement .
1	Resonator Clamps (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  5 N.m (44 lb in)
2	Air Cleaner Outlet Resonator
