Electrical Component Locator - Passenger Compartment/Roof Component Views
>>
Passenger Compartment/Roof Component Views
>>
Identifying Roof/Headliner Components
Identifying Roof/Headliner Components
Identifying Roof/Headliner Components
Component Name
Callout
B160 Windshield Temperature and Inside Moisture Sensor
1
K84 Remote Function Receiver Module
2

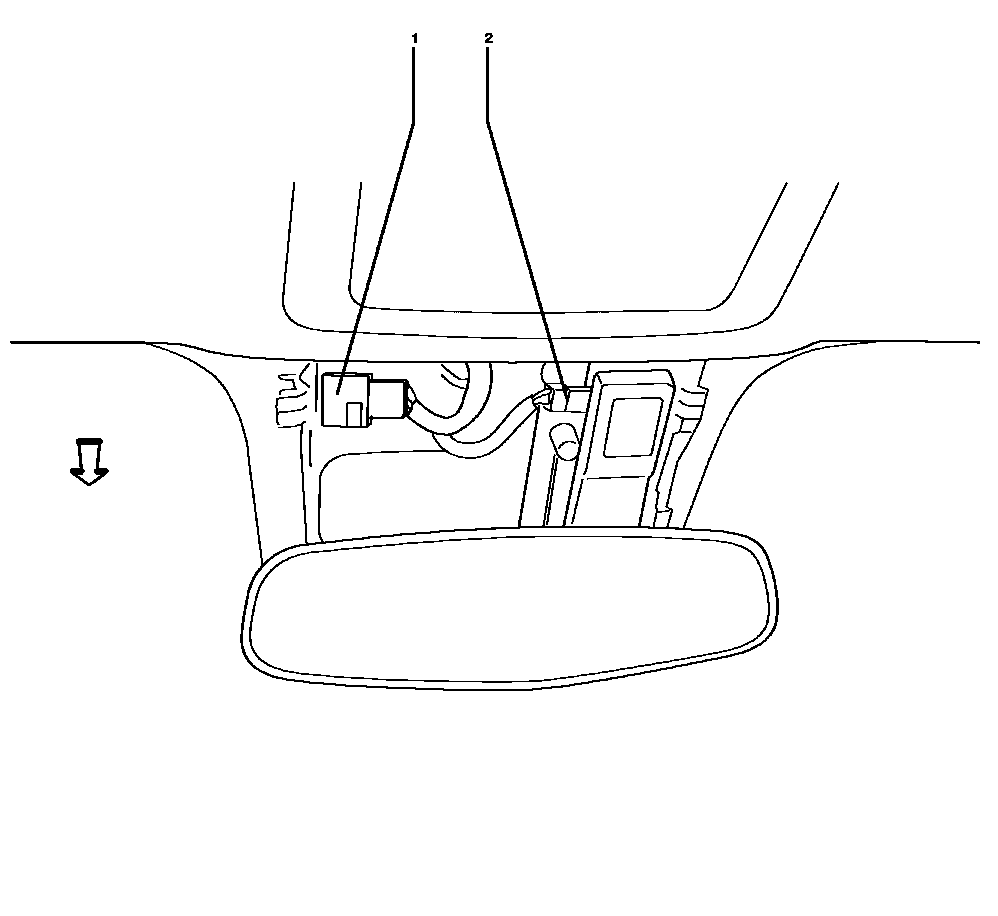

Fig 1: Identifying Roof/Headliner Components
Courtesy of GENERAL MOTORS CORP.
