Left Rear of the Engine Compartment Components

Left Rear of the Engine Compartment Components

Component Name Callout
K17 Electronic Brake Control Module (EBCM) 1

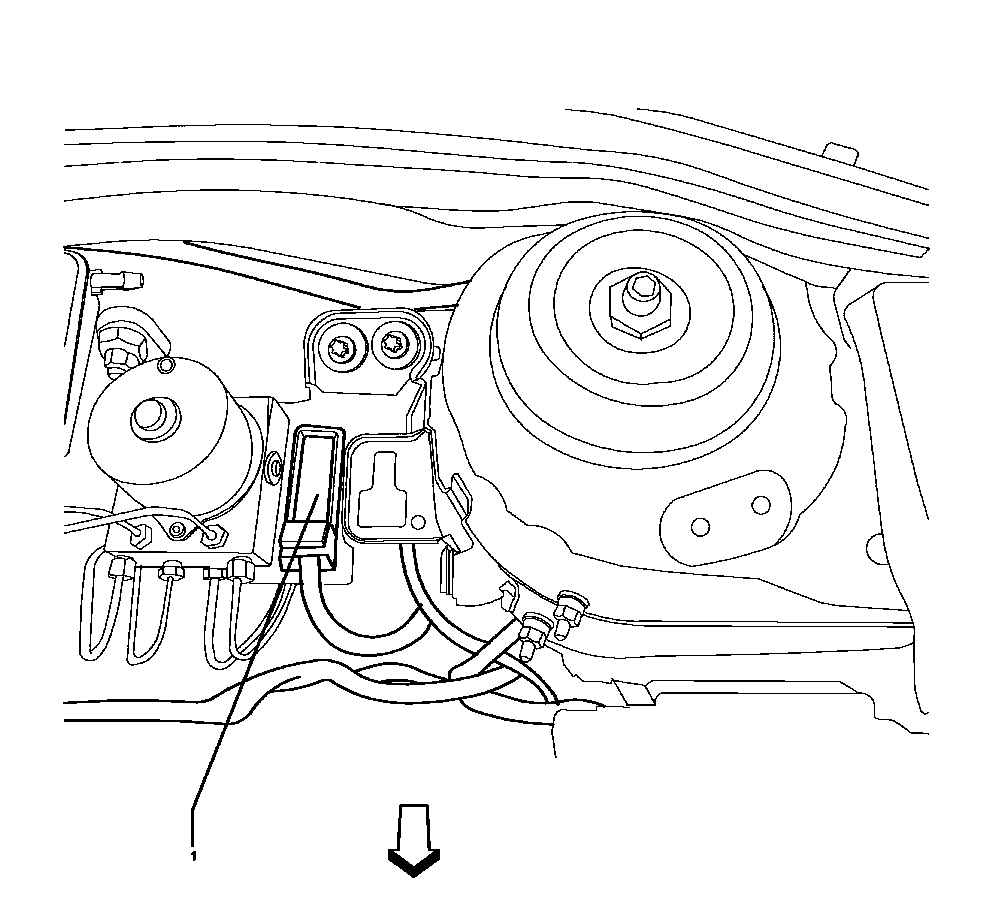

Fig 1: Left Rear of the Engine Compartment Components
GM2224160Courtesy of GENERAL MOTORS CORP.
