Air Cleaner Outlet Duct Replacement
Air Cleaner Outlet Duct Replacement

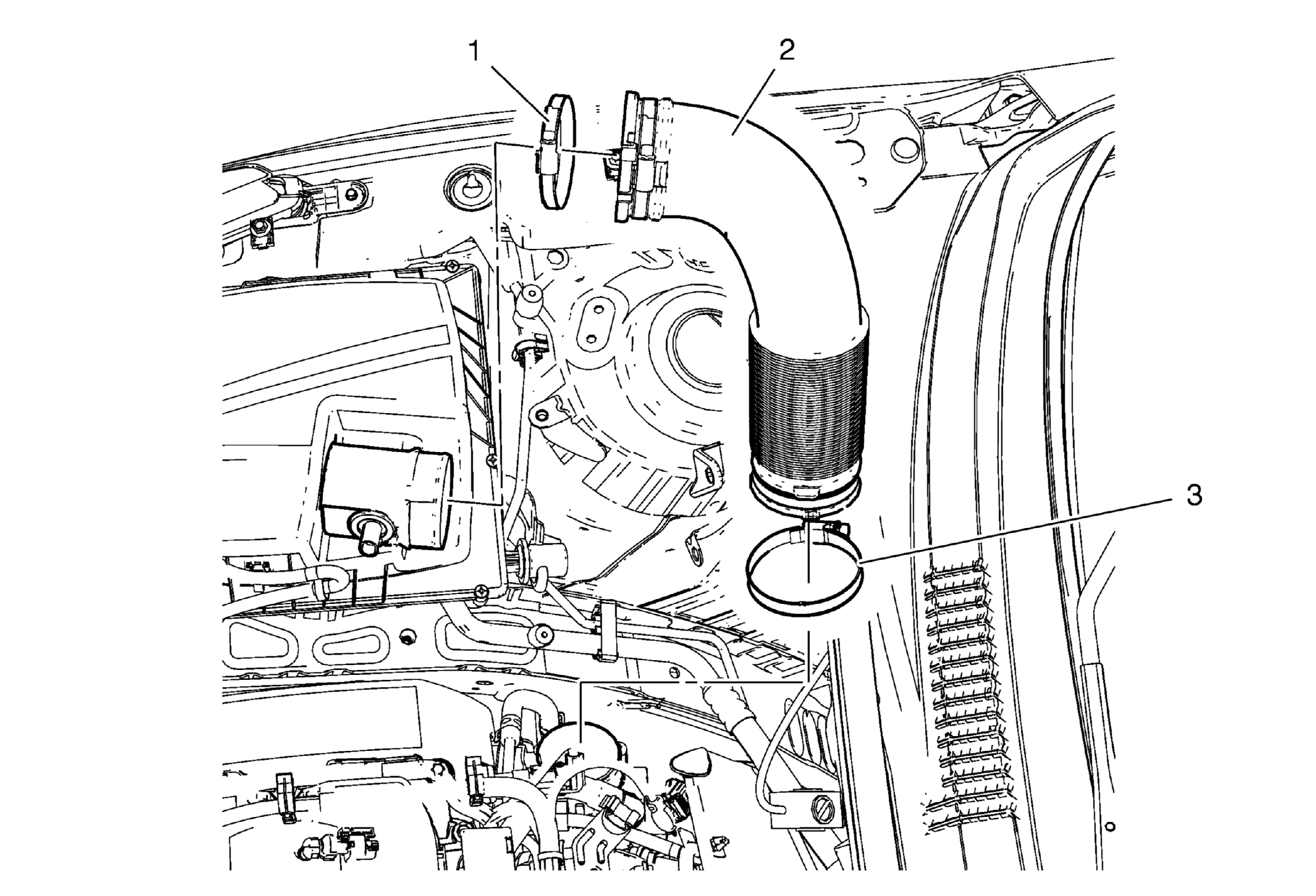

| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct to Air Cleaner Housing Cover Clamp
CAUTION:
Any time service is being performed which requires removal of the air cleaner assembly, always cover the throttle body opening. This will prevent any foreign material from entering the engine.
CAUTION:
Refer to Fastener Caution . Tighten 3.5 N.m (31 lb in) |
| 2 | Air Cleaner Outlet Duct |
| 3 | Air Cleaner Outlet Duct to Intake Manifold Clamp Tighten 3.5 N.m (31 lb in) |
