Identifying Left Front of the Vehicle Components

Identifying Left Front of the Vehicle Components

Component Name Callout
E4N Park/Turn Signal Lamp - Left 1
E13L Headlamp Assembly - Left 2
M29L Headlamp Leveling Actuator - Left 3
G101 Engine Compartment - Front Left 4
G103 Engine Compartment - Front Left 5

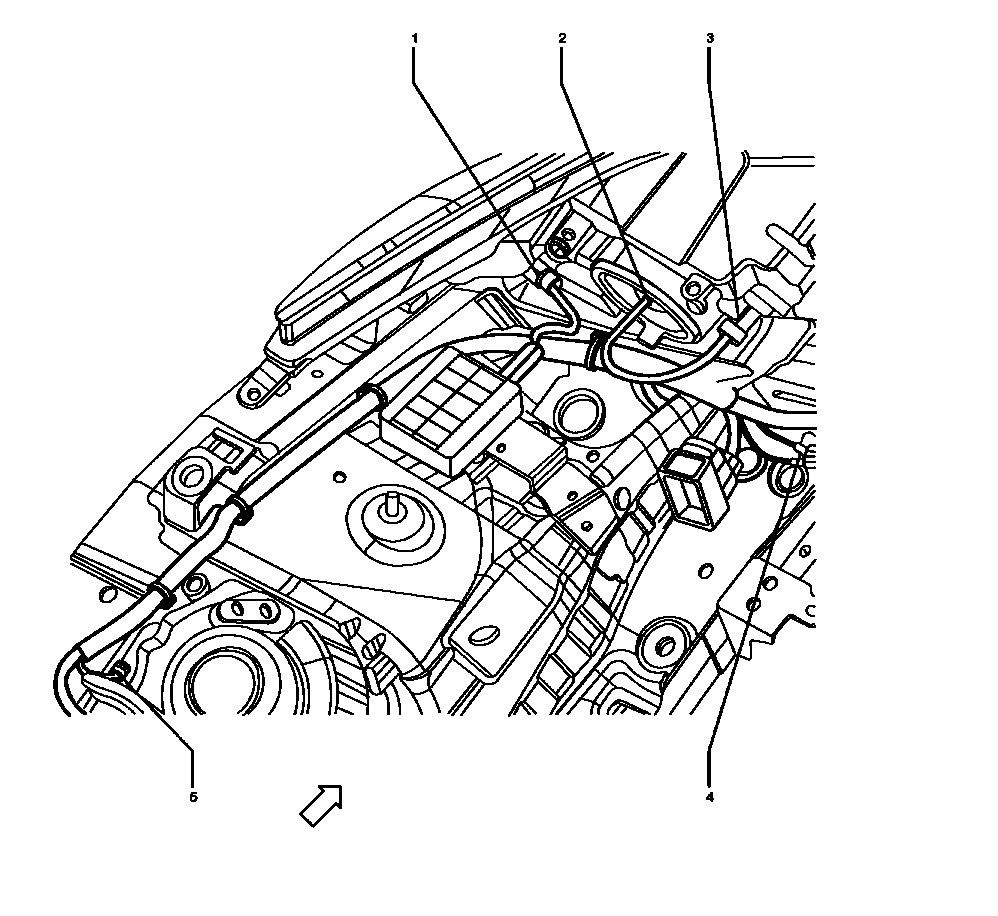

Fig 1: Identifying Left Front of the Vehicle Components
GM2205877Courtesy of GENERAL MOTORS CORP.
