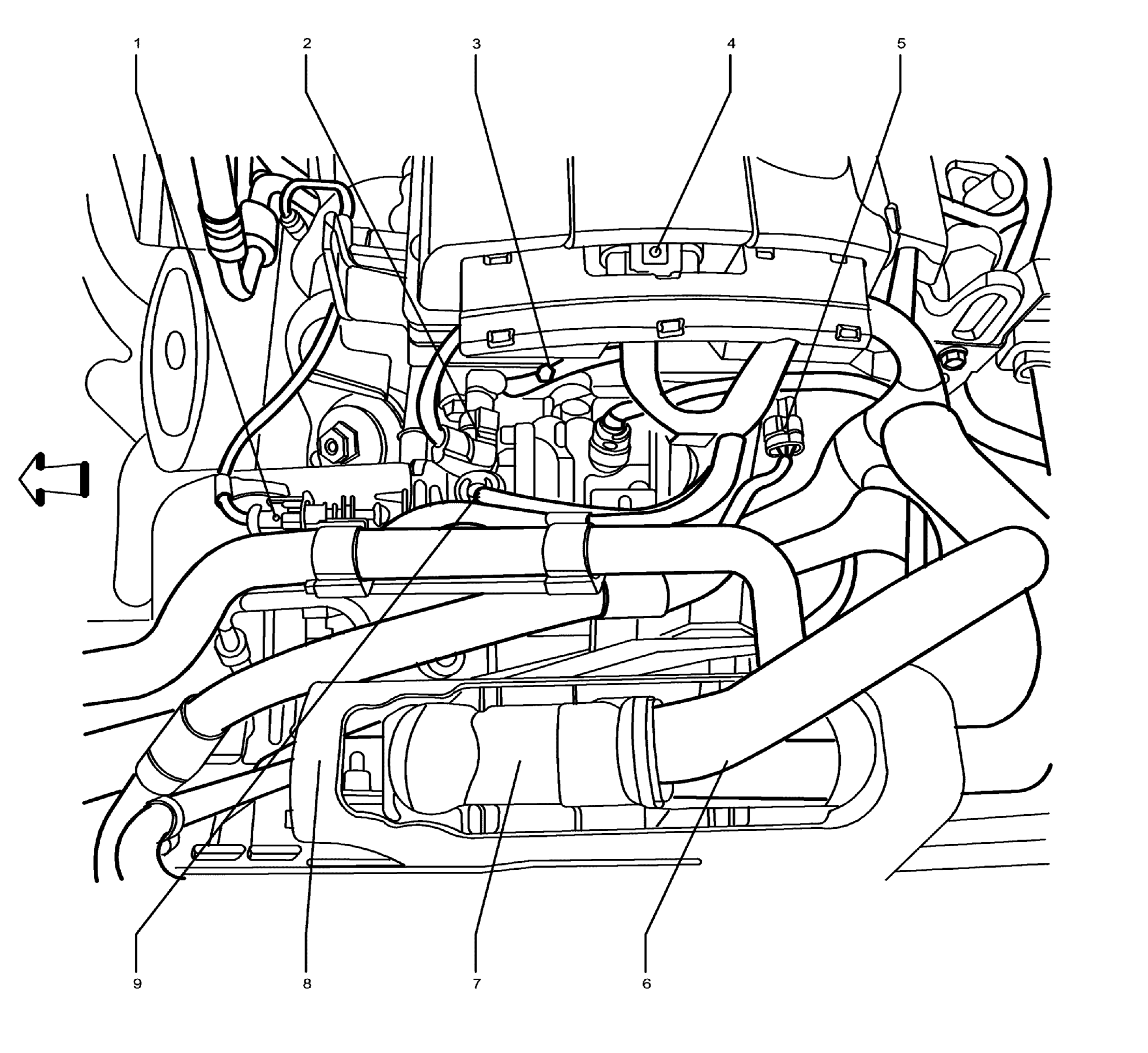

Identifying Upper Left Side of the Engine Components (LUW)
Identifying Upper Left Side of the Engine Components (LUW)
| Component Name | Callout |
|---|---|
| B52A Heated Oxygen Sensor 1 | 1 |
| B23E Camshaft Position Sensor - Exhaust | 2 |
| G112 | 3 |
| T8 Ignition Coil | 4 |
| B23F Camshaft Position Sensor - Intake | 5 |
| Engine Control Module X2 | 6 |
| Engine Control Module X1 | 7 |
| K20 Engine Control Module | 8 |
| E41 Engine Coolant Thermostat Heater | 9 |
